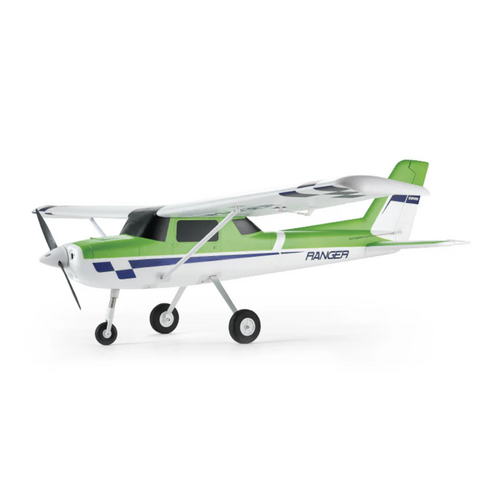

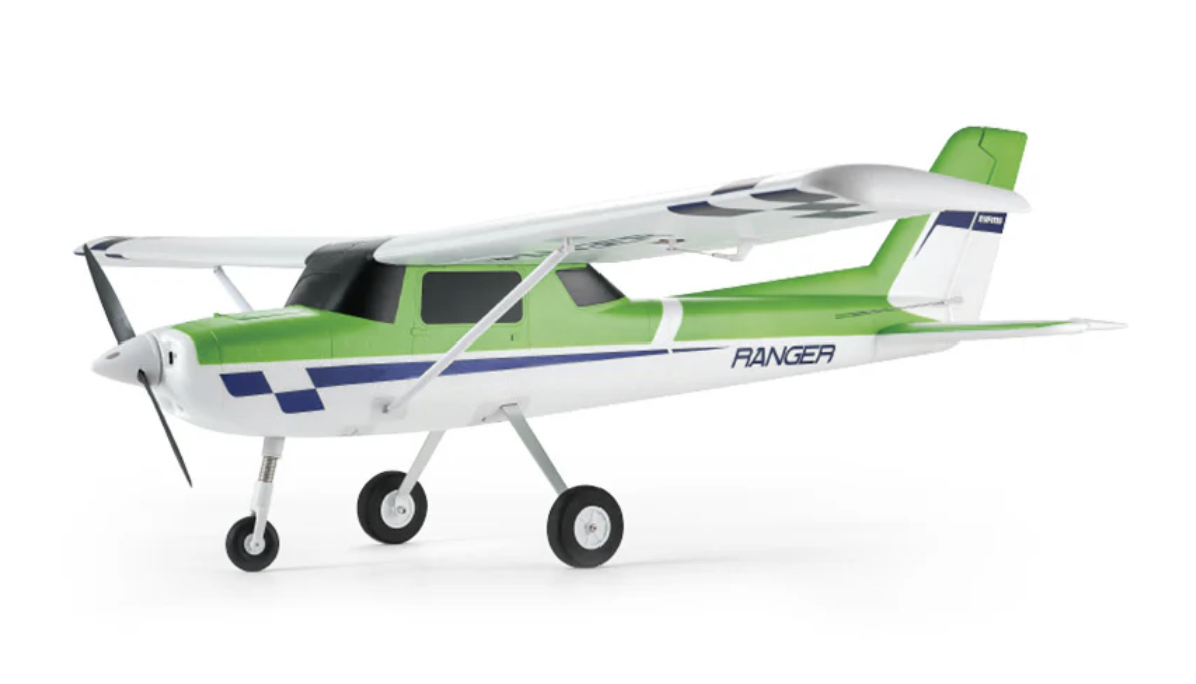

The Perfect RC Airplane For Beginners

As the newest member of the FMS multi-purpose aircraft lineup, the 1220mm Ranger V2 retains all of the fantastic features that pilots have come to expect from FMS stable flight characteristics, ease of assembly, and realistic general-aviation inspired design.

Built with ultralight EPO foam, the large high-winged airframe configuration gives the Ranger stable flight characteristics and low wing-loading with extraordinary amounts of lift, even at slow speeds. Robust plastic struts give extra strength to the wings during aerobatic maneuvers and the patented high-strength “crash-proof” spring cushioned nose landing gear makes ground handling a breeze.

A great aircraft is nothing without a great, dependable power system. FMS has equipped the ranger with a 3136/1200KV outrunner motor with 20A Predator ESC, which allows the ranger to climb almost vertically on demand!

Featuring red, yellow, or green color schemes, the ranger can always be easily orientated even in overcast weather. Designed specifically for beginner pilots, the ranger boasts effortless assembly. Requiring only several screws and twist-locks to complete assembly, the longest wait time is the time it takes to charge the battery! Additionally, the two-piece design of the fuselage and main wing reduces packaging size by thirty percent, facilitating easy transport and storage!

Reflex V3, an onboard flight stabilization system, is factory installed. The Reflex system features Stabilized, Optimized and Manual flight modes. Reflex V3 is a trusty co-pilot that is perfect for pilots of any skill level.

Don’t miss out on one of the most revolutionary FMS aircraft, the amphibious ranger V2!



Features:

  • NEW! Red, Green, or Yellow paint schemes available
  • NEW! Two-piece fuselage and main wing structure reducing packaging size by thirty percent, facilitating easy transport and storage
  • NEW! Reflex V3 flight control system included and installed
  • NEW! Floats available (Optional)
  • High-spec power system: 3136/1200KV motor, Predator 20A ESC, 11.1V 1300mAh 25C battery (Included in RTF Version)
  • Less than 3m short takeoff and landing capabilities
  • High strength, lightweight metal landing gear for all-terrain operations
  • Patented high-strength “crash-proof” spring cushioned nose landing gear
  • Screw and twist-lock assembly, completed in 3-10 minutes
  • 10-15 minute flight time (RTF Version)
  • One piece horizontal stabilizer for precise flight characteristics
  • Reflex V3 Flight Controller

Notes to Buyers:

① RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
② PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
③ Due to a printing error, the packaging may indicate '1220mm Ranger V3 With Reflex V2.' The correct model is '1220mm Ranger V2 With Reflex V3.'
④ A T6 Torx screwdriver is needed to install the vertical stabilizer's connecting rod.
⑤ For the float-equipped Ranger V2, the plane and floats will be sent as two separate packages.

Specification
Wingspan 1220mm/48in
Overall Length 947mm/37.3 in
Flying Weight 1200g/oz (Float Included)
Motor Size 3136-1200KV
ESC 20A
Servo 9g Servo x 5pcs (Float Included)
Radio 6 Channel (RTF Version)
CG (center of gravity) 50-60mm (From Leading Edge)
Prop Size 10*5 2-blade
Recommended Battery 3S 1300MAH 25C
Battery Compartment

100*60*40mm

Battery Connector     XT60
Aileron YES
Elevator YES
Rudder YES
Flaps NO
Retracts NO
Approx. Flying Duration 10 min
Minimum Age Recommendation 14+
Experience Level Beginner
Assembly Time 3-10 minutes
Wing Load 39.4g/dm²  (0.11oz/in²)
Wing Area 25.4dm²(393.7in²)

  •

(FMS147RGN-REFV3-M1)

SKU FMS147RGN-REFV3-M1
Barcode # 784085211314
Brand FMS AIRCRAFT
