Product Name
Product Number
Type Brushed/Brushless

High Voltage/Regular
Specifications Cont./Peak Current

Input

BEC Output
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connecotors
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Firmware Firmware Upgrade
Size & Weight Size

Weight

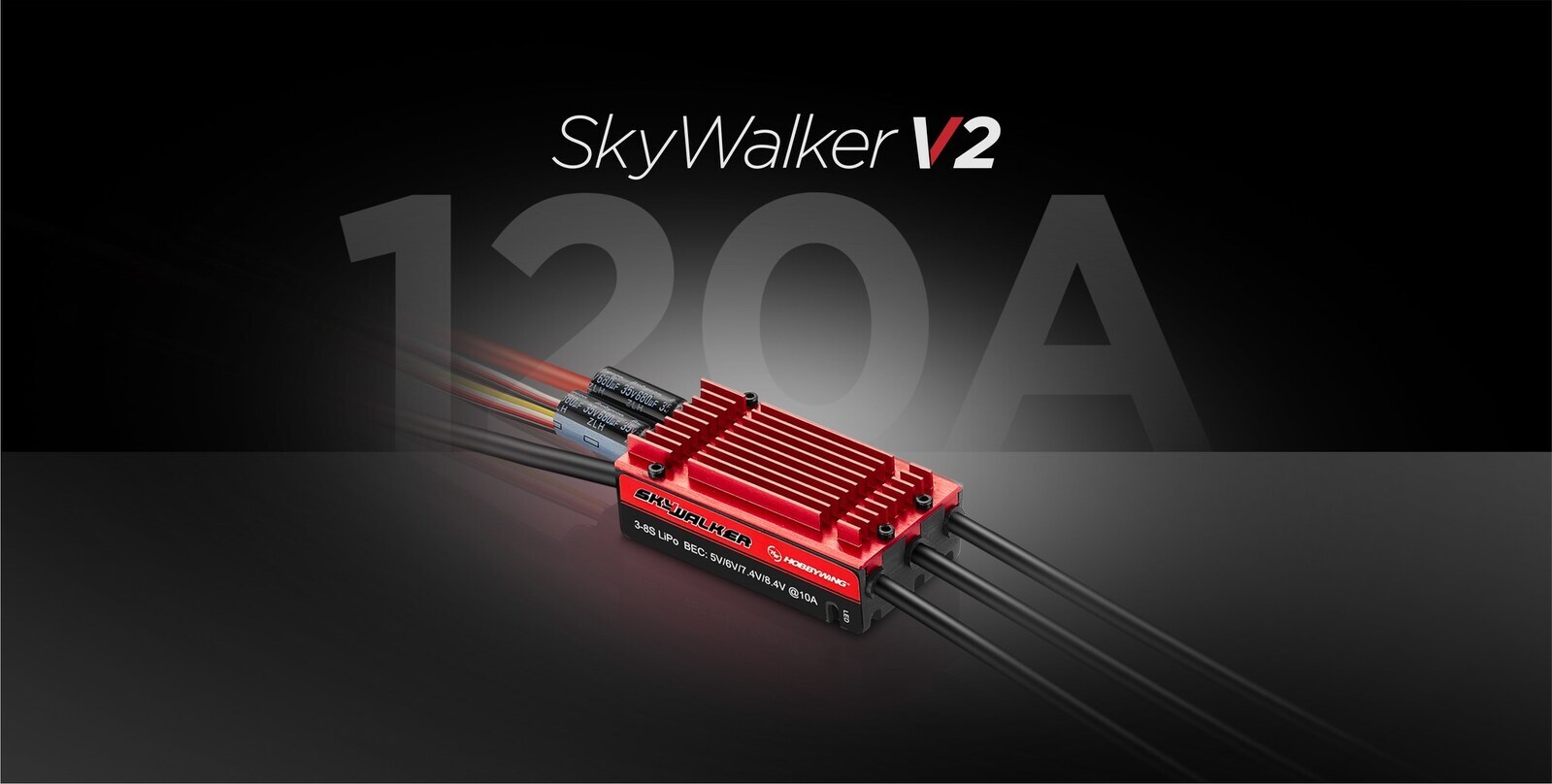

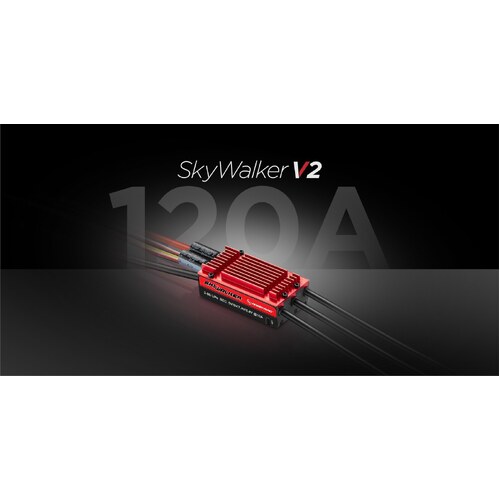

Product Name   Skywalker 120A V2
Product Number   30205450
Type Brushed/Brushless

High Voltage/Regular
BL

Regular
Specifications Cont./Peak Current

Input

BEC Output
120A/150A

3-8S LiPo

Switch Mode:5V/6V/7.4V/8.4V,10A/30A
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connecotors
Red-10AWG-150MMx1

Black-10AWG-150MMx1

Black-12AWG-100MMx3

No

4.0 Gold Connectors (Female)
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Program Wire Firmware
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight
83x35x22mm

117g

(HW30205450)

SKU HW30205450
Barcode # 088718523158
Brand Hobbywing
Shipping Weight 0.0200kg
