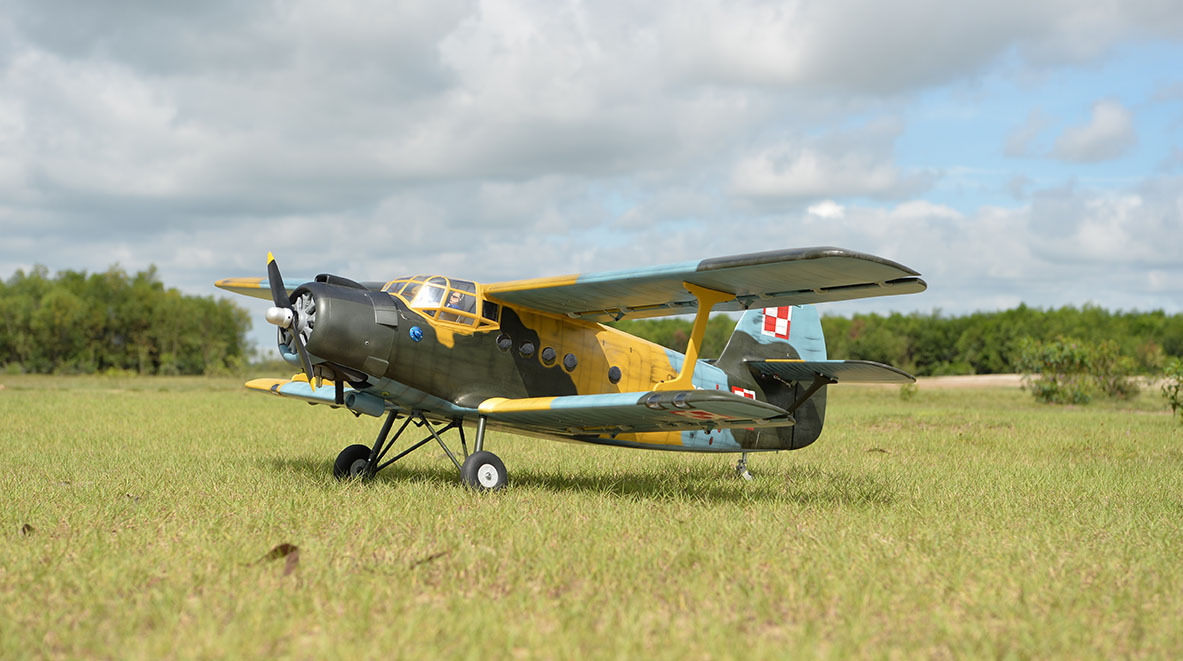

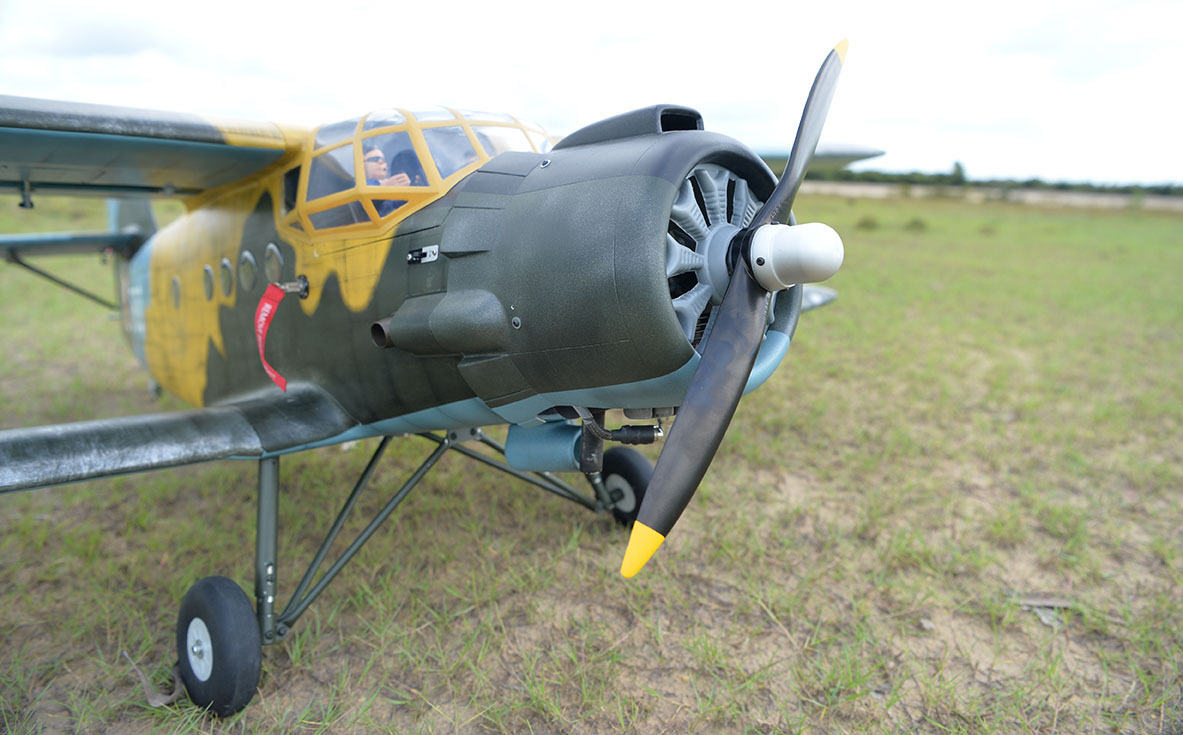

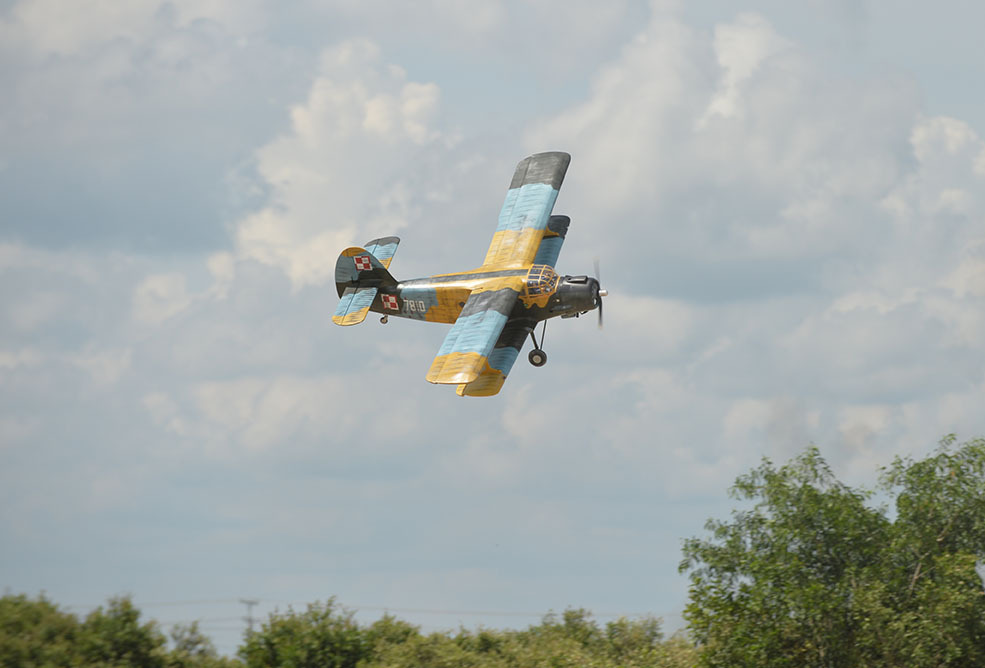

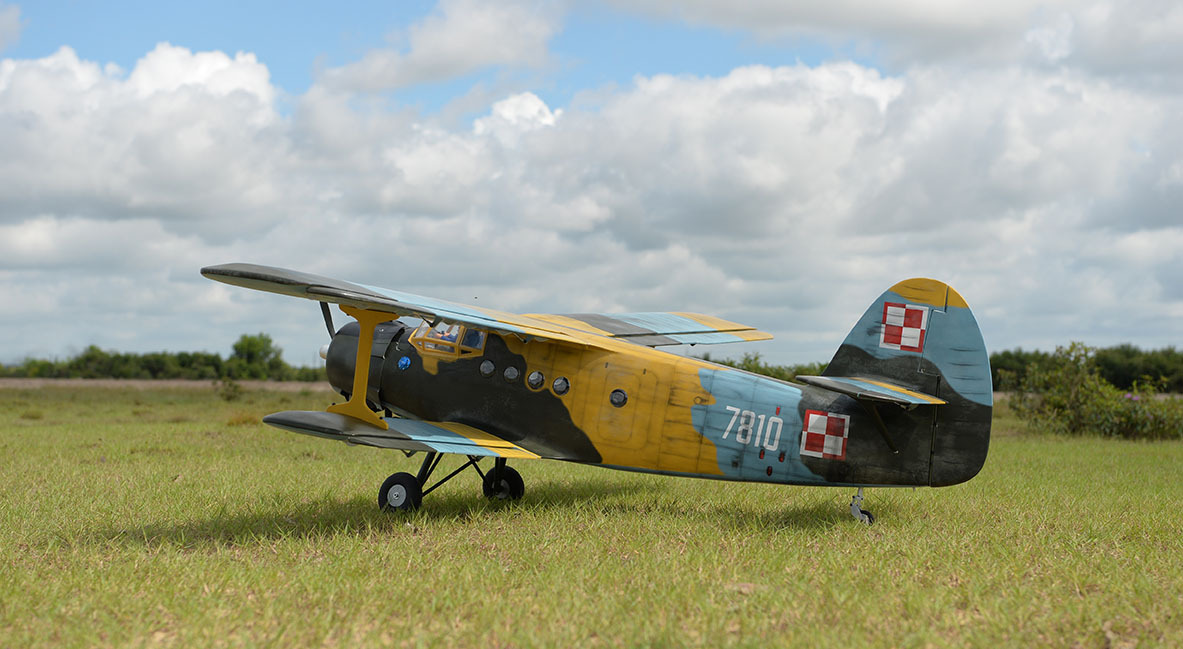

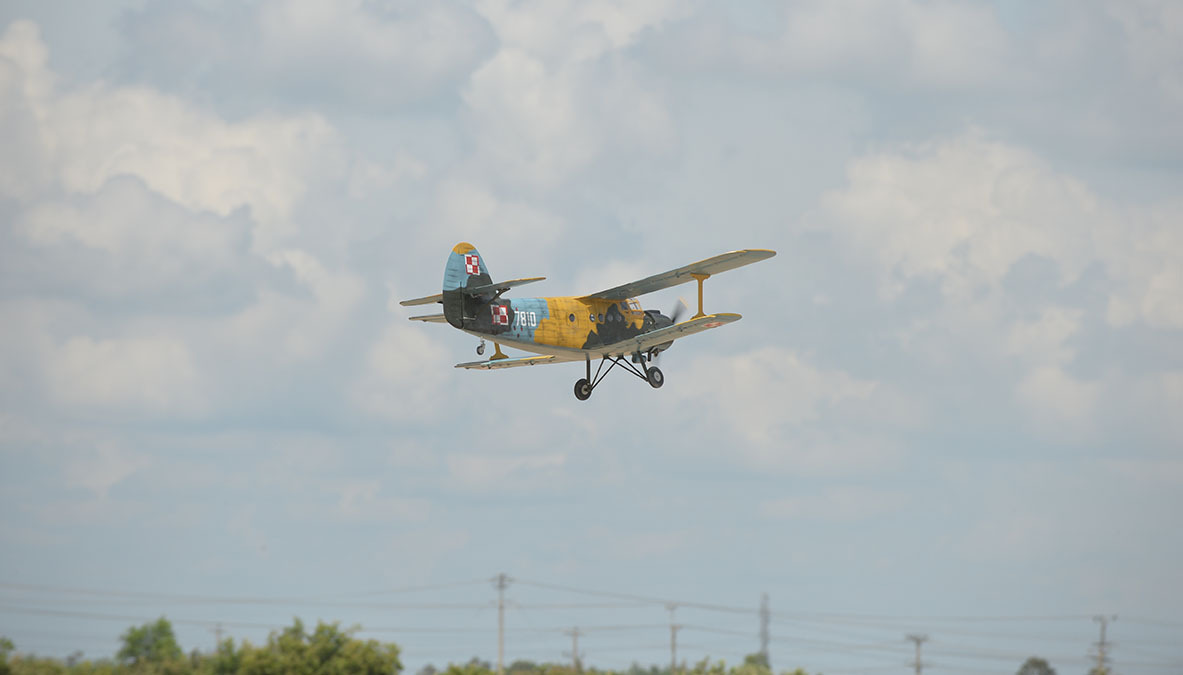

Antonov An – 2
Item code: BH186
Glow and EP



SPECIFICATION:
– Wingspan : 2,425 mm (95.47 in).

– Length: 1,710 mm (67.32 in).

– Weight:   9.6kg (21.12 lbs).

– Wing area: 130.12 dm2.

– Wing loading:   73.78 g/dm2.

– Servo mount: 42mm x 21mm

37mm x 16mm elevator.

– Wing type: Naca Airfoil.

– Spinner: Aluminium 44mm (included).

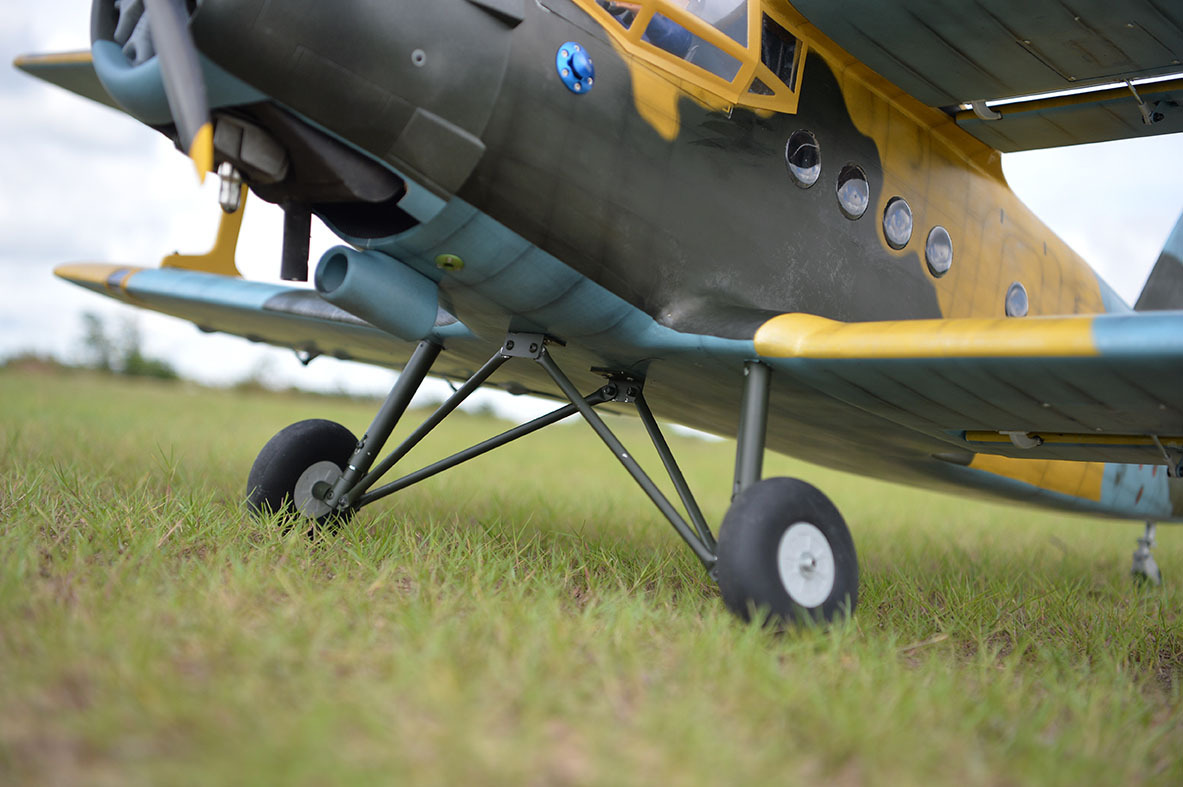

– Main gear type: Oleo struts, for tail gear (included).

Parts listing required (not included):

– Radio: 06 channels minimum.

– Servo: 10 standard hight torque servos (size 39.9 x 20.12 x 37.1)mm

+ 2 standard hight torque servos (size 35 x 15)mm elevator.

– Engine: 30 – 35cc gas.

– Motor: Brushless outrunner 2500 – 3200W, 245KV.

– Propeller: Suit with your engine.

Recommended Motor and Battery set up (not included):

– Motor:  Admiral GP26 6330-245KV Brushless

– Lipo cell: 6-10 cells 4000 – 5500 mAh.

– Receiver battery: 6V-7.4V/ 1200 – 2200 mAh.

– ESC: 80 – 100A.

ONLY INCLUDING OLEO STRUTS.
ALL BALSA – PLY WOOD CONSTRUCTION
COVERED IN A HEAT – SHRINK FILM WITH PRINTED.

SKU BH-186
Brand BLACK HORSE AIRCRAFT
