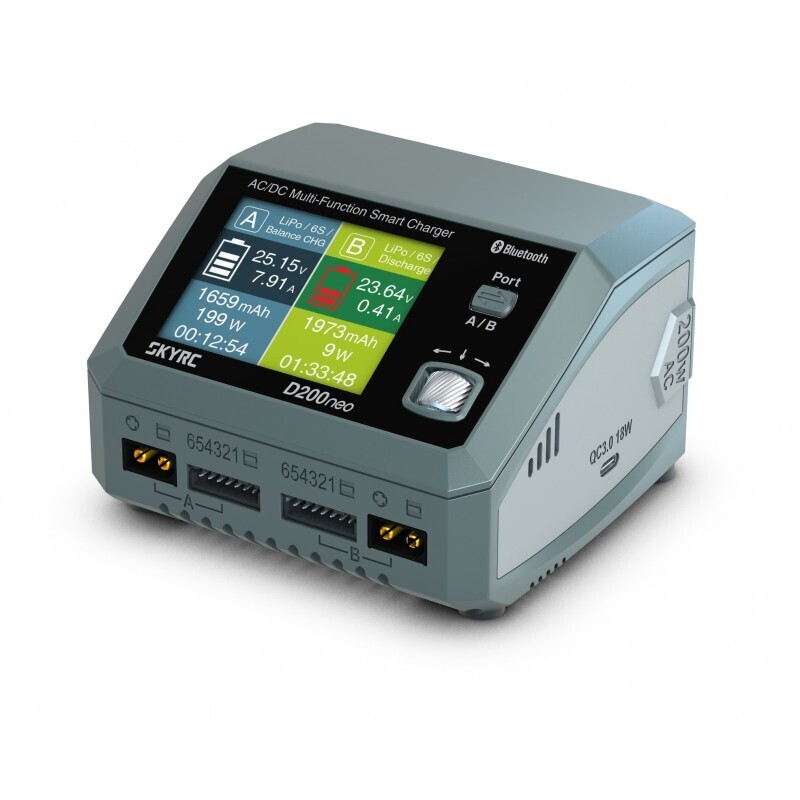

D200 Neo Duo AC/DC charger (AC 200W - DC 2x400W) SK-100196

Skyrc D200 Neo Duo AC/DC charger (AC 200W - DC 2x400W) - SKY100196

Description of the Skyrc D200 Neo Duo AC/DC charger (AC 200W - DC 2x400W):

The D200 neo has two independent ports and supports most batteries in the RC industry. As a
dual input charger, it can be used for various charging scenarios. We not only inherited the interface
We not only inherited the meticulously designed interface and powerful functions of the T1000, but also added SkyCharger App control
, Windows-enabled Chager Master control /Mac OS and also PD/QC3.0 quick charge.
fast charging. So it can meet the charging requirements of different users for different scenarios to a large extent.
scenarios to a large extent. The new improved design and scroll button make the charging operation more convenient and simple.
the charging operation more convenient and simpler.

Characteristics of the Skyrc D200 Neo Duo AC/DC charger (AC 200W - DC 2x400W):

Input voltage AC 100-240V (50/60Hz), DC 10-30V
Input current 30.0-35.0A
Charging power AC 200W max, DC 400W*2 max
Discharging power Main port 10W*2, balance port 37W max.
External discharge 350W max
Charge current LiPo/LiFe/LiIon/LiHV NiMh/NiCd/Pb 0.1-20.0A, Parallel 20-35.0A
Discharge current LiPo/LiFe/LiIon/LiHV NiMh/NiCd/Pb 0, 1-2.0A, External discharge 0.1-40.0A, LiPo/LiFe/LiIon/LiHV equilibrium current 1.5A max.
Battery Types 1-6S LiPo/LiFe/LiIon/LiHV, 4-15S NiMh/NiCd, 3S/6S/12S Pb
Operating Modes LiPo/LiFe/LiIon/LiHV Balance CHG, Charge, Discharge, Storage, Parallel, NiMh/ NiCd Charge, Re-Tip, C_D/D_C Cycle, Discharge, Pb Normal, AGM Charge, Cold Charge, Discharge
DC Power Supply Voltage 5-27V, Current 1.0-15.0A

Output USB Types-C QC3.0 5V 3A, 9V 2A, 12V 1.5A 18W, PD 5V 3A, 9V 2.2A, 12V 1.67A 20w
Size: Length*Width *Height: 116*110*79 mm
Weight Net weight 602 g

(SK-100196)

SKU SK-100196
Barcode # 6930460007865
Brand SKYRC
Shipping Weight 0.0500kg
