The FMS 1700mm PA-18 was launched in 2019, and its stable, easy-tofly and easy-to-operate features have brought full surprises to both new and old pilots. While this trainer has been widely praised, FMS has been constantly asked whether it is possible to reduce the size of the aircraft, including the aircraft itself and the packaging, while maintaining its stability and operating controllability as much as possible, so that it can be picked up like a boarding suitcase.

With the 1300mm PA-18, FMS has answered the above question. The 1300mm PA-18 also adopts a two-section main wing and horizontal stability structure, but at the same time, the fuselage is also two-section, which greatly facilitates players’ transportation and carrying. It can be hidden in the corner of a car trunk, ready to be used at any time.

Thanks to its functional flaps, high-lift airfoil, rugged landing gear and oversized pneumatic rubber tires- the 1300mm PA-18 Super Cub has impressive short take-off and landing (STOL) performance, allowing it to operate from just about any terrain.

In addition, the assembly steps of the 1300mm PA-18 are still simple and convenient, and the assembly and disassembly of the entire aircraft can be completed with just a few screws.

For pilots wanting to get the genuine bush-plane experience, the PA-18 Super Cub can be equipped with floats.

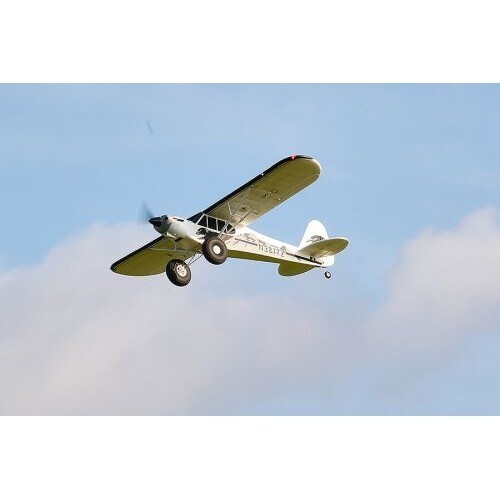

The latest 1300mm PA-18 could be a great start to enjoying versatile, fun and exceptionally relaxing flight.

FEATURES

  • Powerful 3536-850KV motor with 40A ESC provides adequate thrust for any situation.
  • CNC metal landing gear structure for less-thanperfect landings.

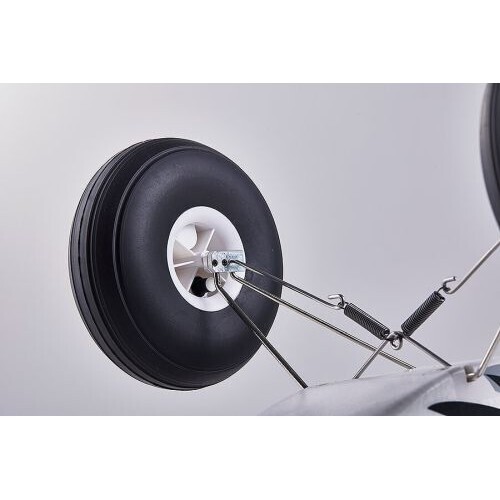

  • Oversized pneumatic rubber tires for all-terrain operations.
  • STOL capable (Takes off in less than 3m/10ft).

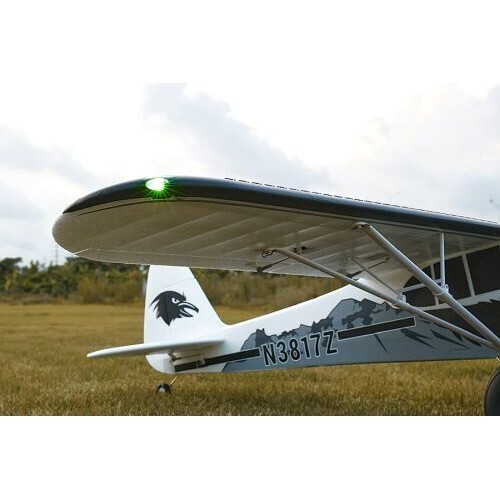

  • Preinstalled navigation and landing lights.
  • Two-section fuselage.
  • Two-piece wing and horizontal stabilizer for easy transportation.
  • High-strength carbon fiber wing spars.
  • Screw-together assembly.
  • Large battery bay.
  • Preinstalled ball-linked pushrods for increased precision.

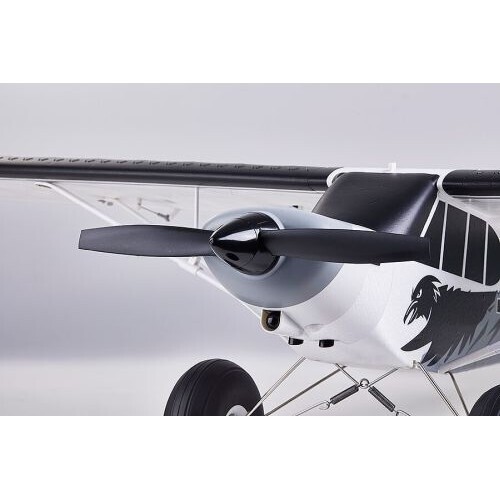

  • Tough two-blade nylon propellers.
  • Functional flaps.
  • Optional floats.
  • Wingspan 1300mm, length 986m.
  • TX/RX/Battery and Charger included.
  • Description

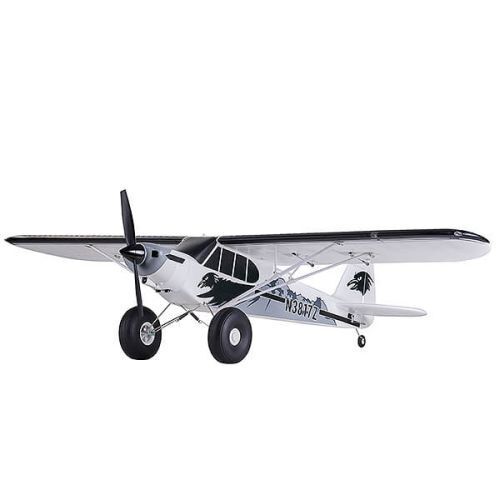

    The Piper PA-18 Super Cub is a two-seat, single-engine monoplane. It was developed from the Piper PA-11. In close to 40 years of production, over 9,000 were built. Super Cubs are commonly found in roles such as bush flying, banner towing and glider towing.
    The FMS 1700mm PA-18 was launched in 2019, and its stable, easy-to-fly and easy-to-operate features have brought full surprises to both new and old pilots. While this trainer has been widely praised, FMS has been constantly asked whether it is possible to reduce the size of the aircraft, including the aircraft itself and the packaging, while maintaining its stability and operating controllability as much as possible, so that it can be picked up like a boarding suitcase.
    With the 1300mm PA-18, FMS has answered the above question. The 1300mm PA-18 also adopts a two-section main wing and horizontal stability structure, but at the same time, the fuselage is also two-section, which greatly facilitates players' transportation and carrying. It can be hidden in the corner of a car trunk, ready to be used at any time.
    Thanks to its functional flaps, high-lift airfoil, rugged landing gear and oversized pneumatic rubber tires- the 1300mm PA-18 Super Cub has impressive short take-off and landing (STOL) performance, allowing it to operate from just about any terrain.
    In addition, the assembly steps of the 1300mm PA-18 are still simple and convenient, and the assembly and disassembly of the entire aircraft can be completed with just a few screws.
    For pilots wanting to get the genuine bush-plane experience, the PA-18 Super Cub can be equipped with floats.
    The latest 1300mm PA-18 could be a great start to enjoying versatile, fun and exceptionally relaxing flight.








    Specification

    Wingspan 1300mm /51.2in
    Overall Length 986mm /38.8in
    Flying Weight Around  1450g
    Motor Size 3536-KV850
    ESC 40A
    Servo 9g*6
    Radio 6CH Channel
    CG (center of gravity) 60-70mm(From Leading Edge)
    Prop Size 11*7
    Recommended Battery 11.1V 2200mAh 25C
    Aileron Yes
    Elevator Yes
    Rudder Yes
    Flaps Yes
    Retracts No
    Approx. Flying Duration 5minutes
    Minimum Age Recommendation 14+
    Experience Level
    Assembly Time 10minutes
    Wing Load 48g/dm²   (0.096oz/in²)
    Wing Area 30 dm²    (  464.7sq.in)



SKU FMS138R-REFV2M1
Barcode # 784085211260
Brand FMS AIRCRAFT
