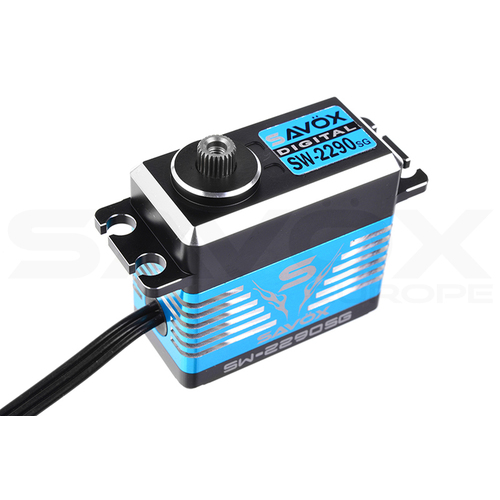

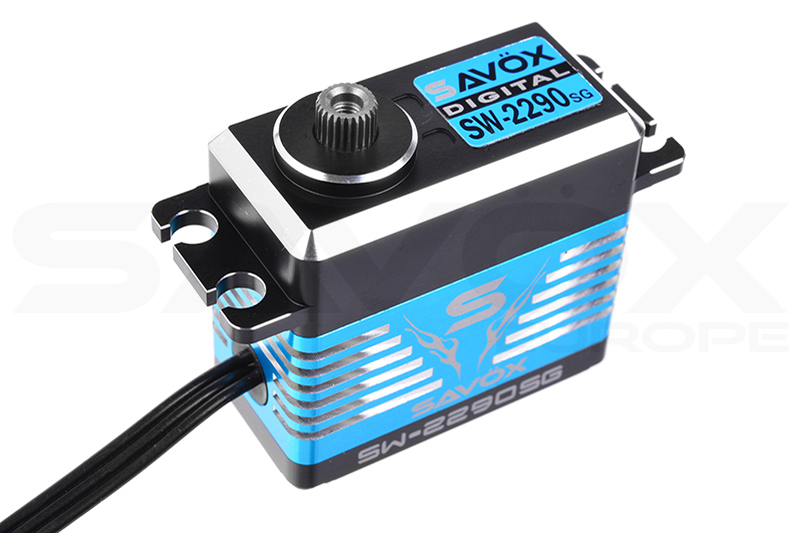

SAVOX Digital Super Torque 50kg/t Servo SAV-SW2290SG-BE

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Spline size: 25T Spline
Servo Technology: Digital High Voltage
Servo Case: Aluminium
Input Voltage (V): 6.0V - 8.4V
Water Protection: Waterproof
Motor Type: Brushless Motor
Gear Material: Steel Gears
Ball Beared: Ball Beared

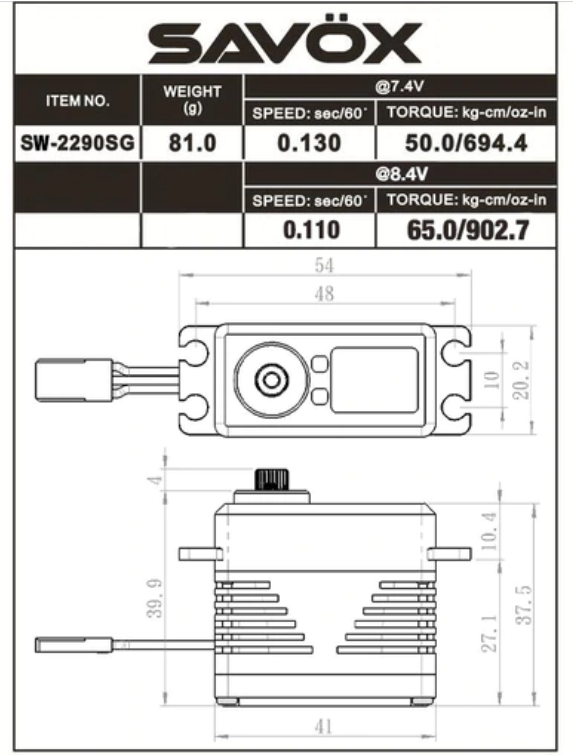

Length (mm): 40.3 mm
Width (mm): 20.2 mm
Height (mm): 38.7 mm
Weight (g): 81.0 g
Speed 60°/Sec @ 6.0V: 0.16/60° sec
Speed 60°/Sec @ 7.4V: 0.13/60° sec
Speed 60°/Sec @ 8.4V: 0.11/60° sec
Torque kg/cm @ 6.0V: 45.0kg/624.9oz-in
Torque kg/cm @ 7.4V: 55.0kg/763.8oz-in
Torque kg/cm @ 8.4V: 70.0kg/972.1oz-in
Connector type: JR

(SAV-SW2290SG-BE)

SKU SAV-SW2290SG-BE
Barcode # 4710006993867
Brand SAVOX
Shipping Weight 0.0500kg
