1:10 2.4G High-Performance Desert Racer UDI-UD1001

High Bright LED Lights
·Angel Lights
·All white Lights in the whole car

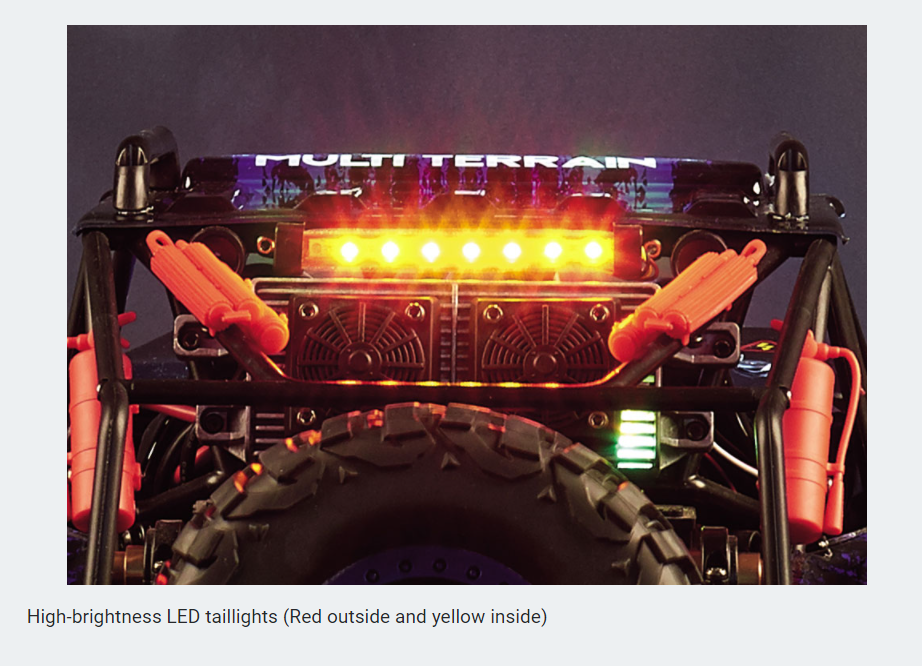

·Tail light(Red outside and Yellow inside)
·High-valtage 8 channel power amplifier for intense, brilliant LED lighting
·Regulated output for stable lighting performance (no flickering or dimming as the battery
voltage changes)


Waterproof Electronic Speed Control
·3s Lipo compatible
·Integrated cooling fan
·Real-time telemetry
·Aluminum alloy shell heat sink
·Powered accessory ports


2200KV sensorless brushless waterproof motor
·3-pole 2200KV brushless motor
·4mm output shaft
·Finned can for better heat dissipation


Up to 30+mph with 2s Lipo Batteries


Innovative Battery Compartment
·Closed dual battery compartment design
·Accommodates dual 2S Lipo or 3S Lipo batteries
·The battery cover adopts a flexible elastic buckle structure, which is convenient for disassembly and installation
·Support dual battery parallel use


Decoration
·PC material bodyshell
·Strong and functional tube frame mimics full-size off-road racers
·The wheels are also equipped with dummy “brake calipers”, 14mm metal brake discs with one-piece hex adapters
·One fully-functional spare tires
·Dummy parts: fire extinguisher, shock reservoir, battery, oil bottle and metal drive shaft
·The interior is equipped with a simulated driver, driver’s seat


Chassis
·Composite inverted tub design
·Makes maintenance easier
·Lowers center of gravity(CG)for improved handling
·Allows easy access to components
·Tough skid plates protect critical components
·Fully integrated tube frame, added rigidity for the whole car
·Reinforced bumpers to absorb impacts


Suspension
·Provides scale looks and authentic off-road driving dynamics
·Tough independent double-wishbone front suspension with fixed rod ends
·Triangulated 4-link rear suspension with solid rear axle
·Tough composite trailing arms
·Steel upper links with 3 optional positions for suspension tuning
·Realistic and functional front and rear sway bars
·Detailed functional limit straps on rear axle
·4 metal hydraulic spring twist shock absorbers
·4 two-speed reverse metal nitrogen dampers


Steering
·15KG metal gear waterproof steering servo
·Dual bellcrank design with bearings and integrated servo saver
·Solid non-adjustable steering links for rugged durability


Drivetrain
·Steel CV driveshafts(front)with 6mm stub axles
·Steel straight axle(rear)
·Oil-filled limited slip front differential
·Locked steel spool (rear)
·Heavy-duty splined front driveshaft
·Fixed-length steel rear driveshaft

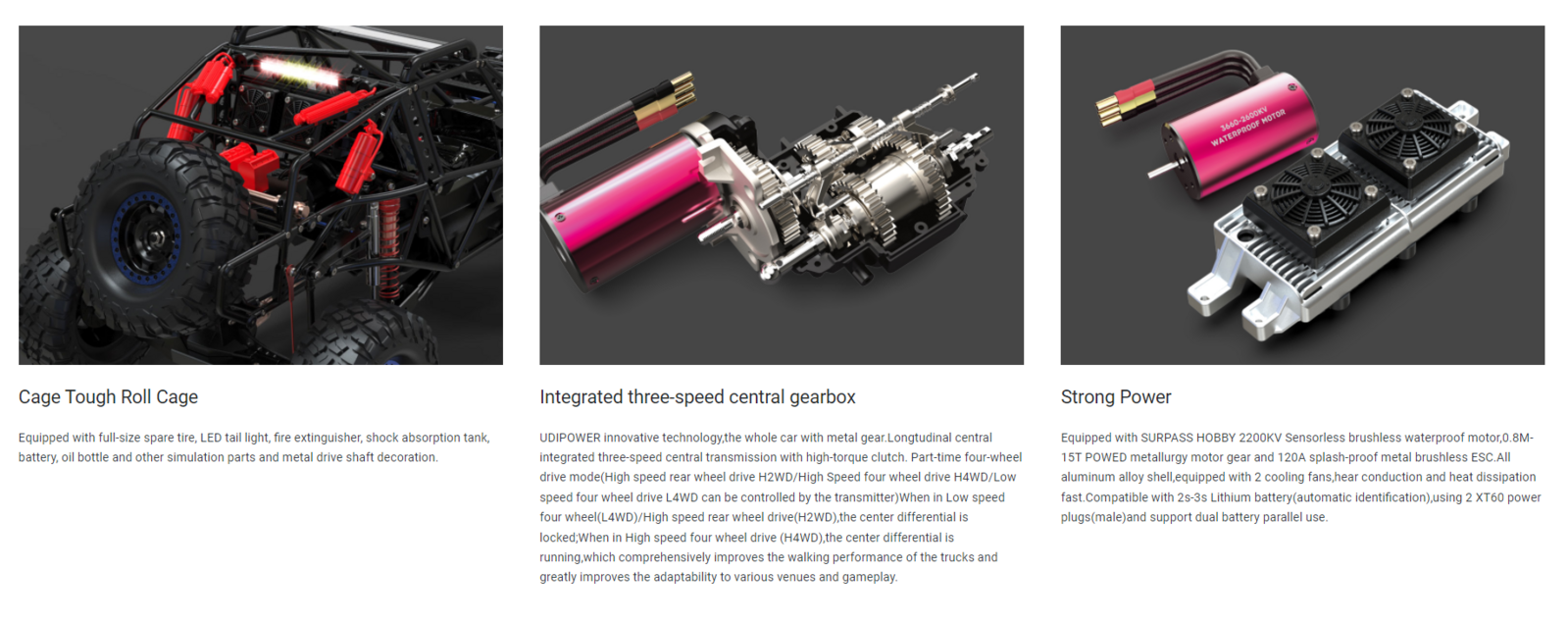

Transmission
·All-steel gear direct drive transmission
·With central differential lock
·Removes as a single piece for easy maintenance
·Fixed-pin gear mesh system


Wheels and Tires
·Off-road tires
·120mm tires


Sealed Ball Bearing


Hardware with rust-resistant native oxid coating

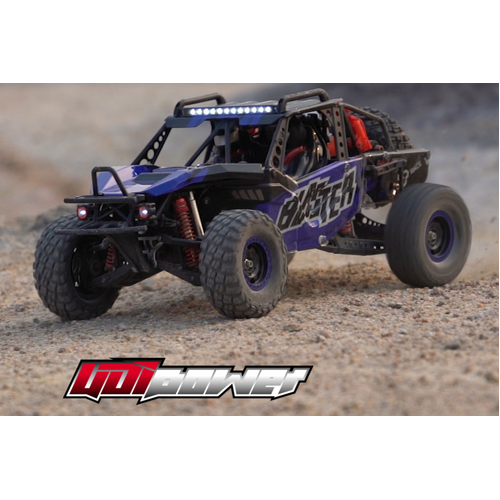

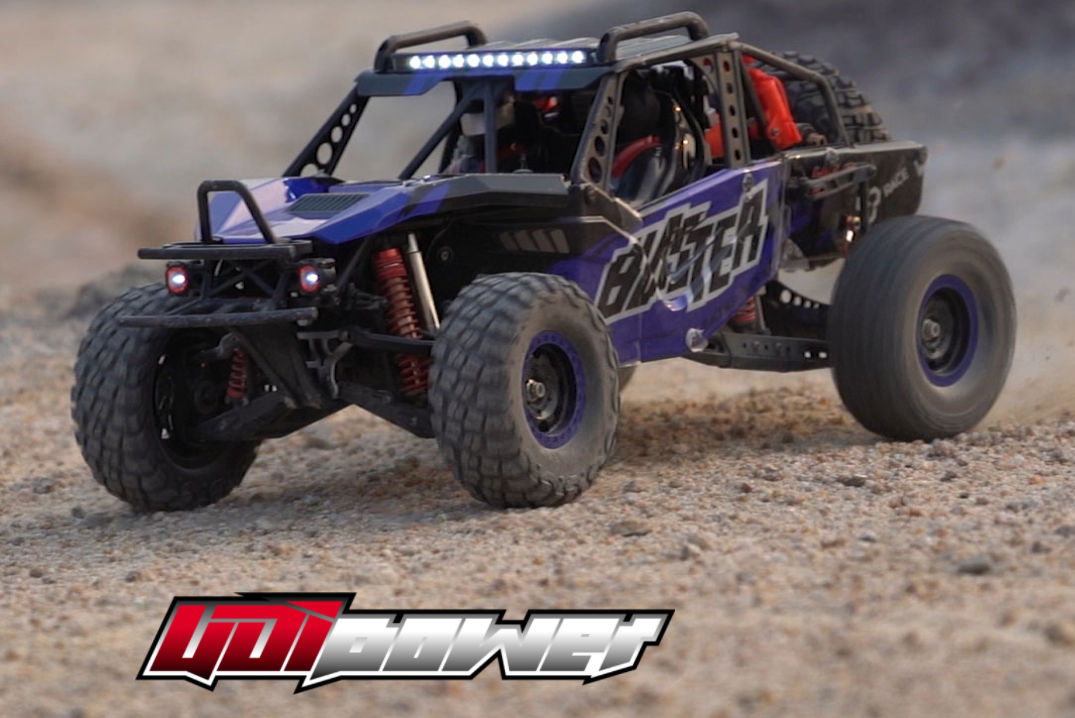

Model UD1001: UDIRC UDIPOWER BLASTER 4WD DESERT TRUCK


What’s In The Box:
Blaster Desert Truck with ESC and 2200KV motor
User Manual

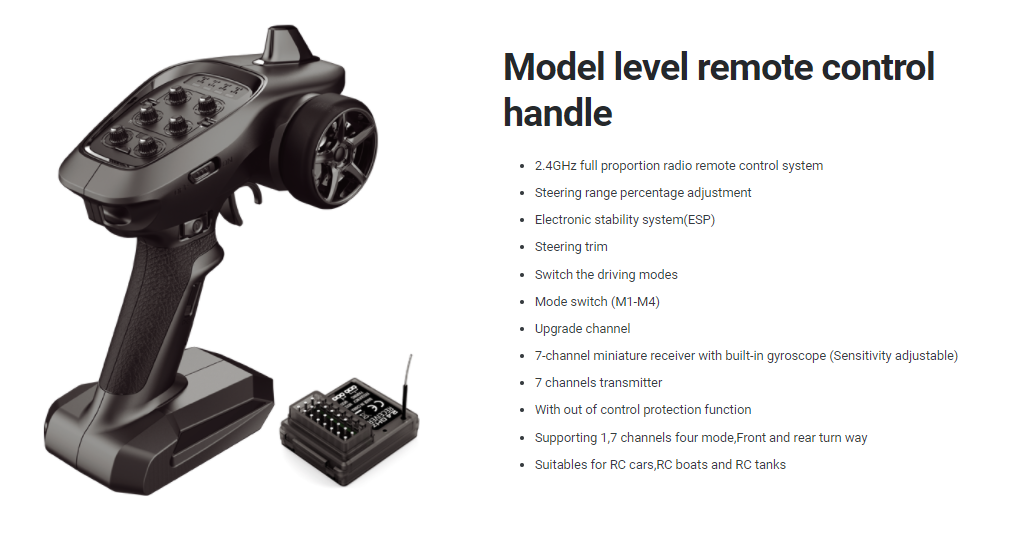

2.4GHz 7 channels radio system
Maintenance tools


What You’ll Need:
Batteries
Blaster Desert Truck accepts a single 2s Lipo battery or dual 2s Lipo batteries or dual 3s Lipo batteries

Charger
Recommend to use a charger for Easy and fast charging performance

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter

Model No: UD1001


Length: 550mm


Width: 295mm


Height: 250mm


Rear wheel track: 249mm


Front wheel track: 240mm


Wheel base:345mm


Bauchfreiheit: 56mm


Weight: 3.8KG


Front Shock Length: 115mm


Front Threaded Shock Length: 112mm


Rear Shock Length: 115mm


Rear Threaded Shock Length: 112mm


Tires(pre-glued): 120mm × 48mm


Speed Control: Included


Motor(electronic): 2200kV


Transmission: Direct-drive with Torque-Biasing Center Drive


Overall Drive Ratio: 17.89:1


Front Differential Type: Sealed, 4-gear


Rear Differential Type: Locked spool


Center Differential Type: Sealed, 4-gear (1M weight oil)


Chassis Structure/Material: Inverted composite tub


Brake Type: Electronic


Drive System: Shaft driven 4WD


Steering: Dual bellcranks with ball bearings


Radio System: 7-channel transmitter with receiver


Servos: Included

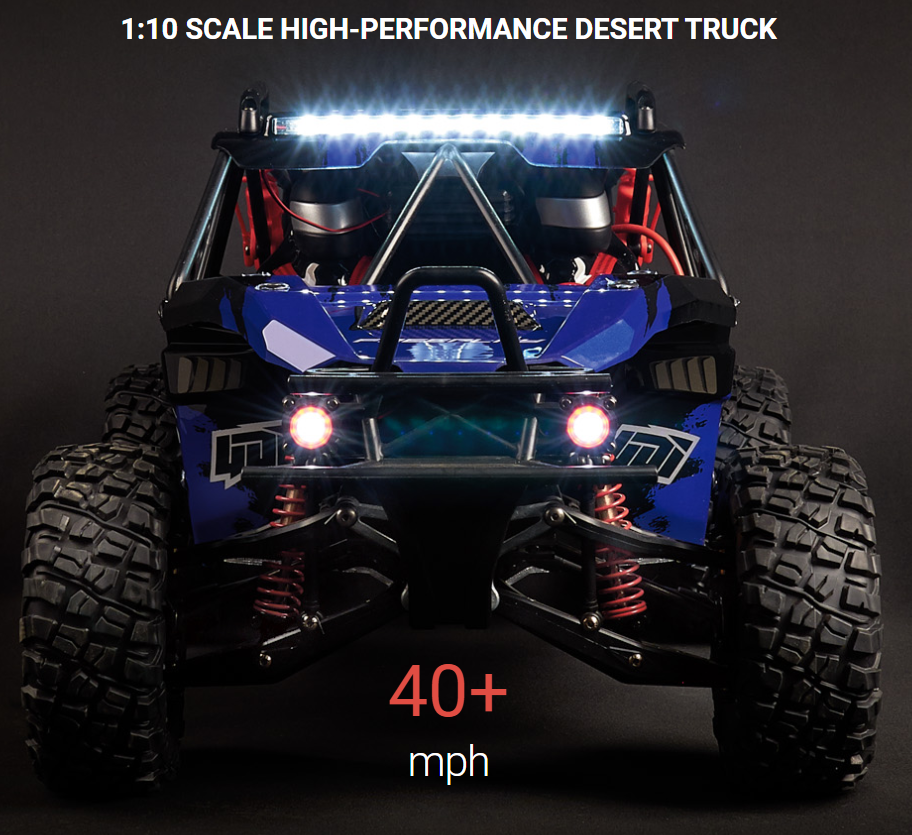

Top Speed(stock gearing): 2s LiPo – 30+ mph,3s LiPo – 40+ mph


Skill Level: 5


Battery Compartment: 140×45×30mm

SKU UDI-UD1001
Brand UDI RC
