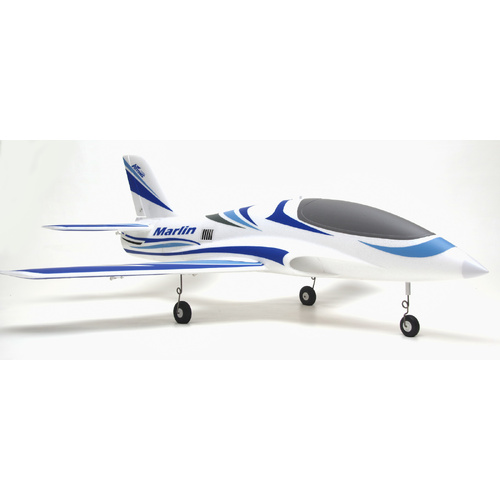

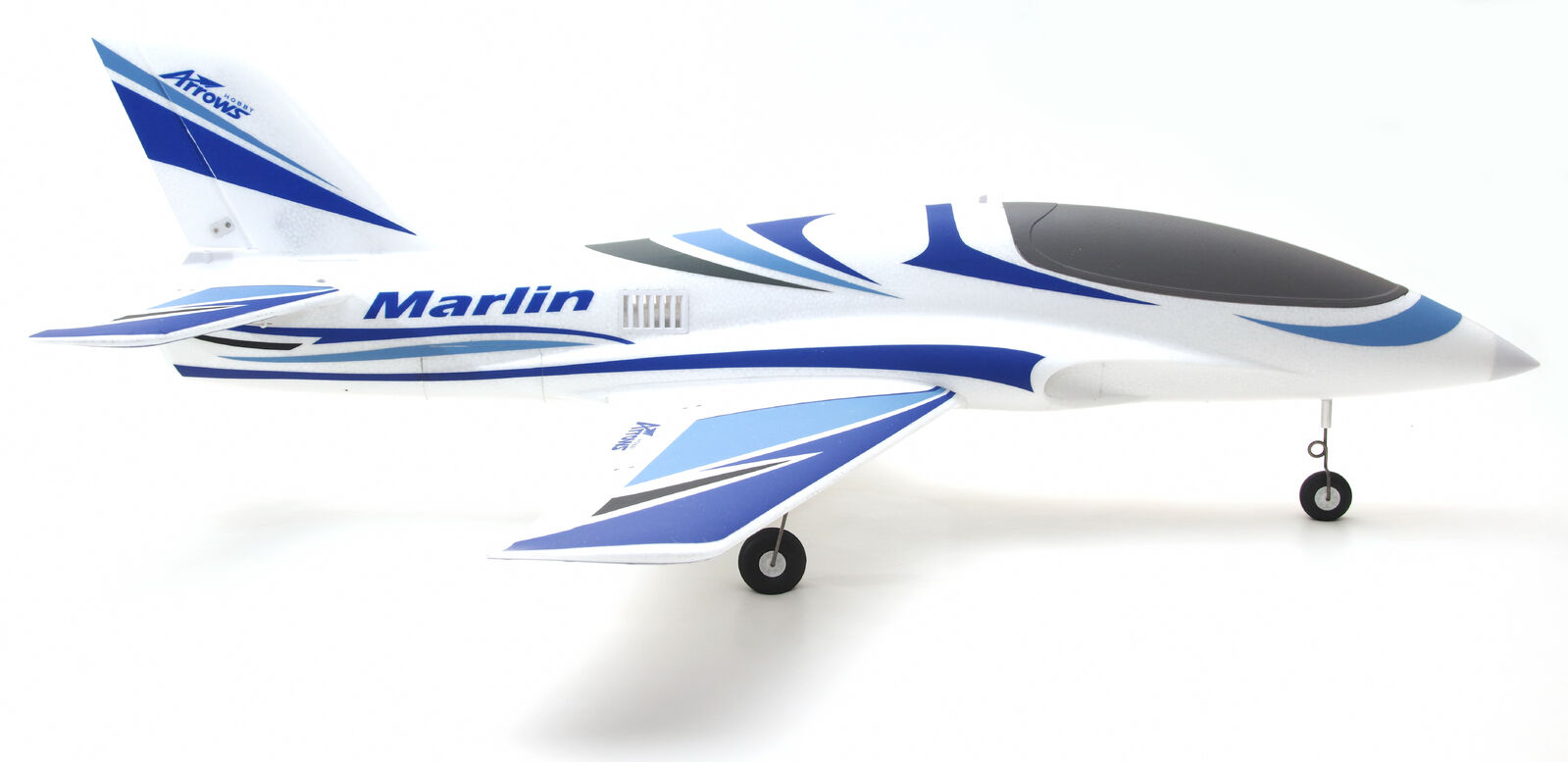

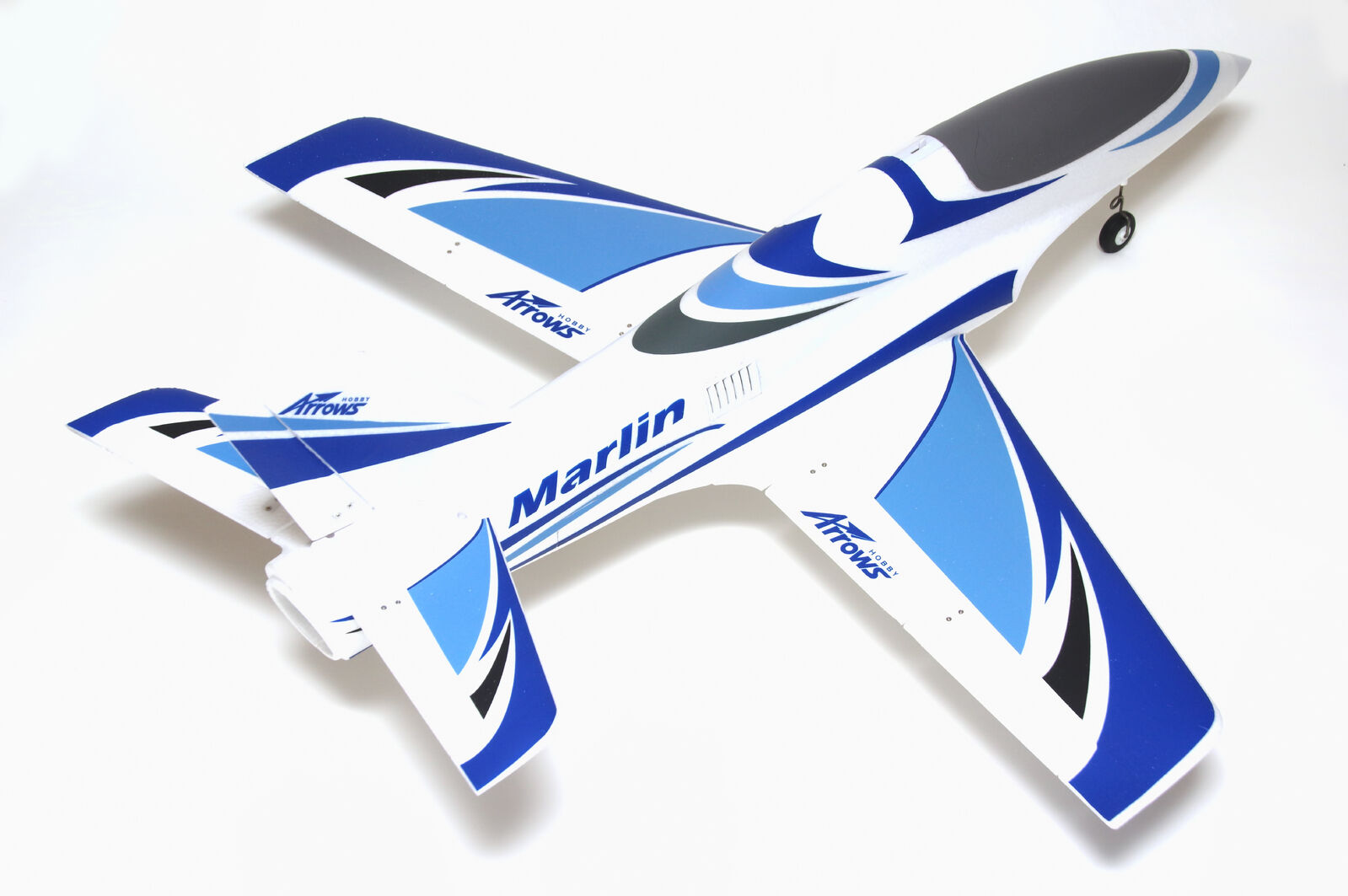

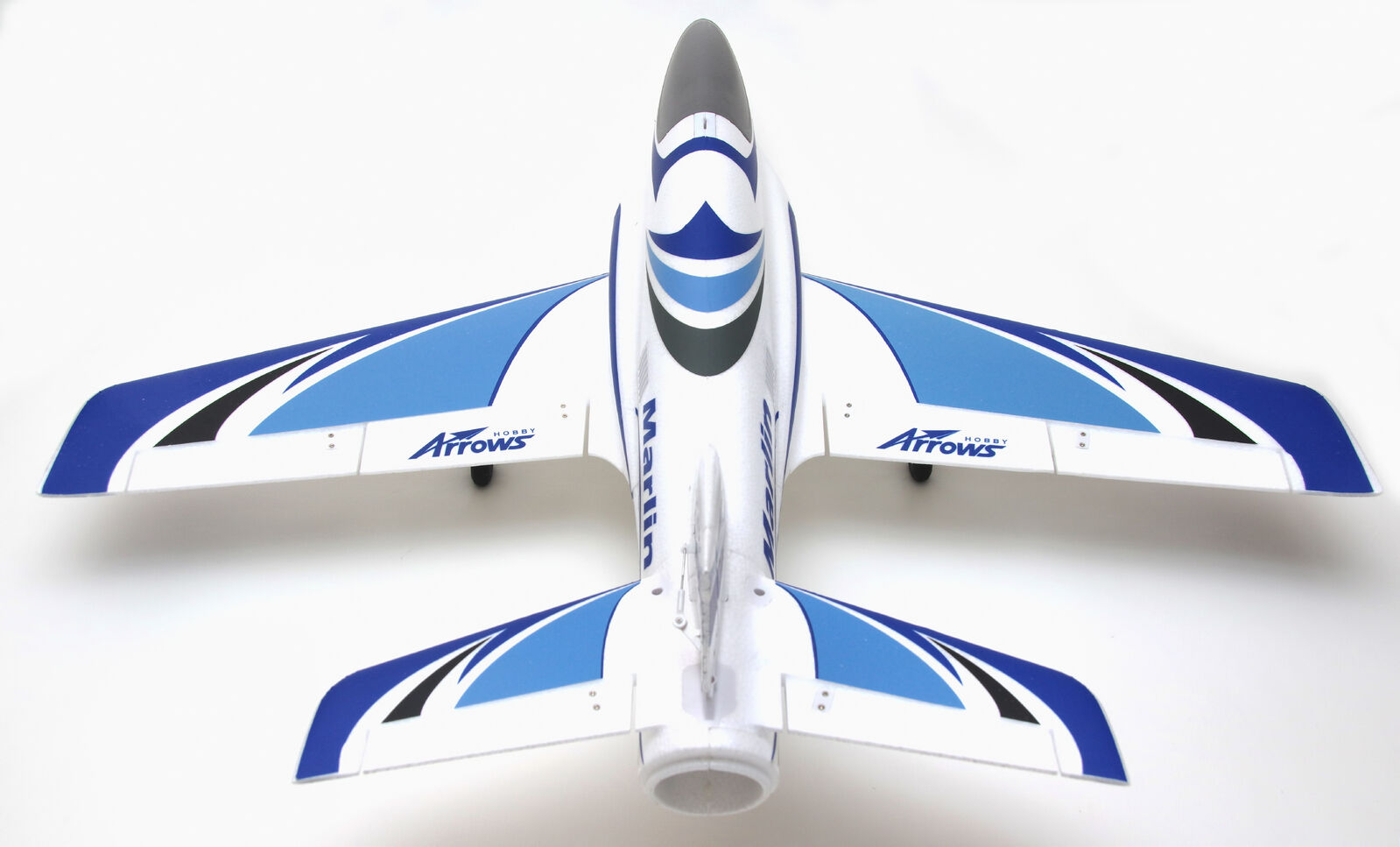

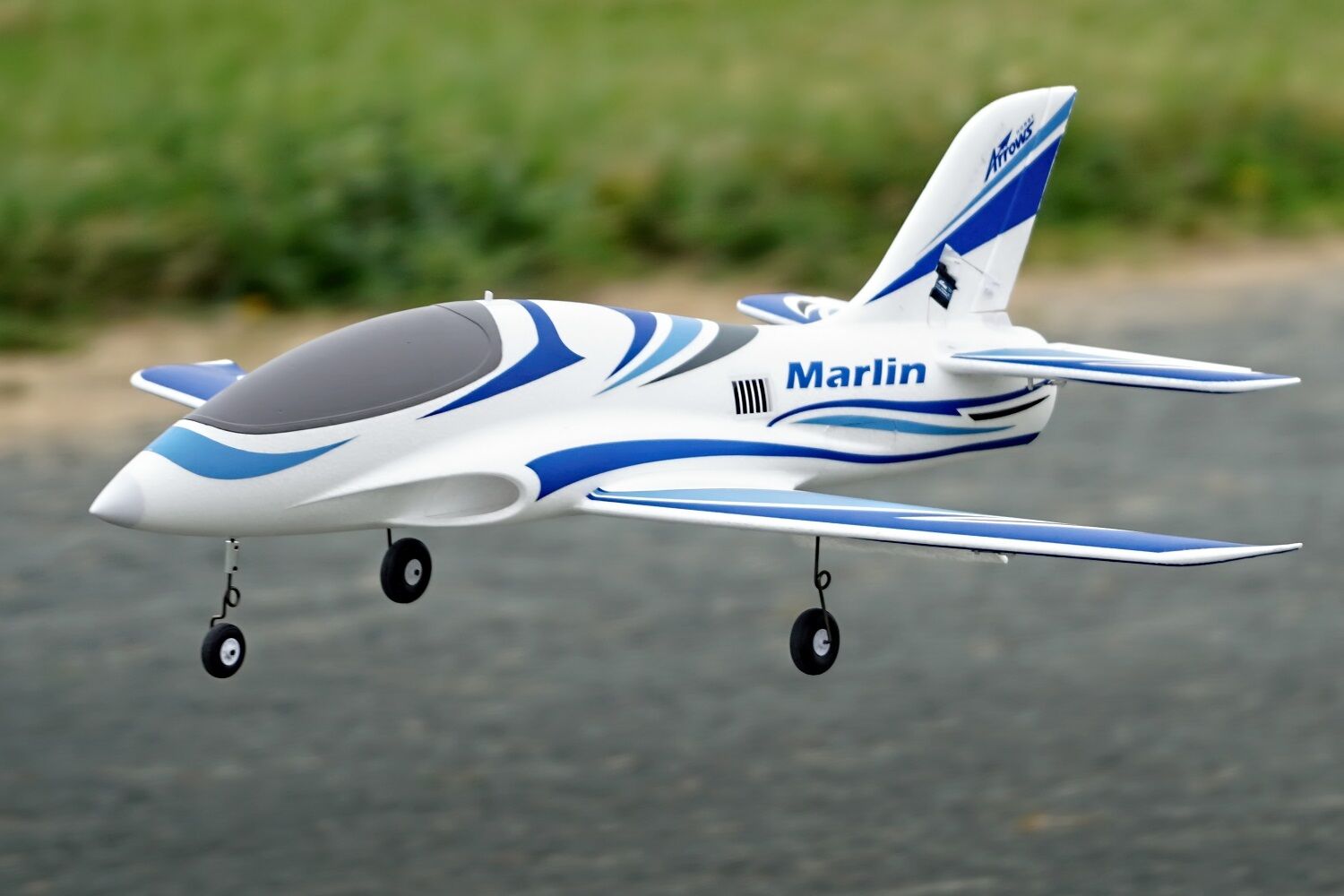

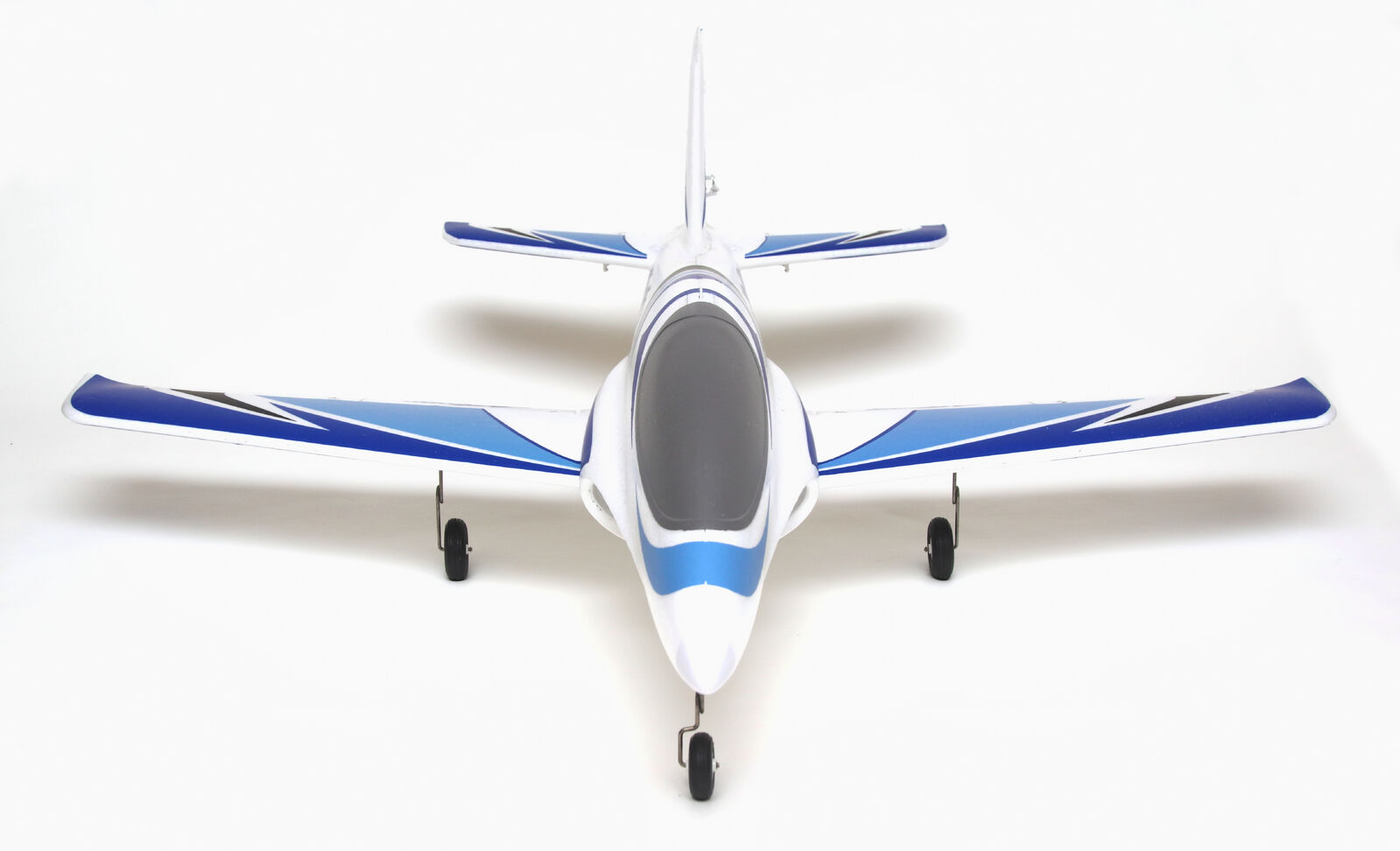

Arrows Hobby 64mm Marlin PNP RC Aircraft

Something different! The Arrows Marlin 64mm EDF is an ALL NEW design with the beginner to intermediate pilot in mind. This plane has a more robust fixed landing gear than most, to handle bumpy landings. More importantly it is the only plane in its class to have flaps to shorten takeoff, and to make approaches and landings more like those of a high wing trainer. The 3150kV motor combined with a 40 Amp ESC, and a powerful 64mm 11 blade EDF, ensure plenty of power for takeoff and maneuvers. The fan sounds like a real turbine.

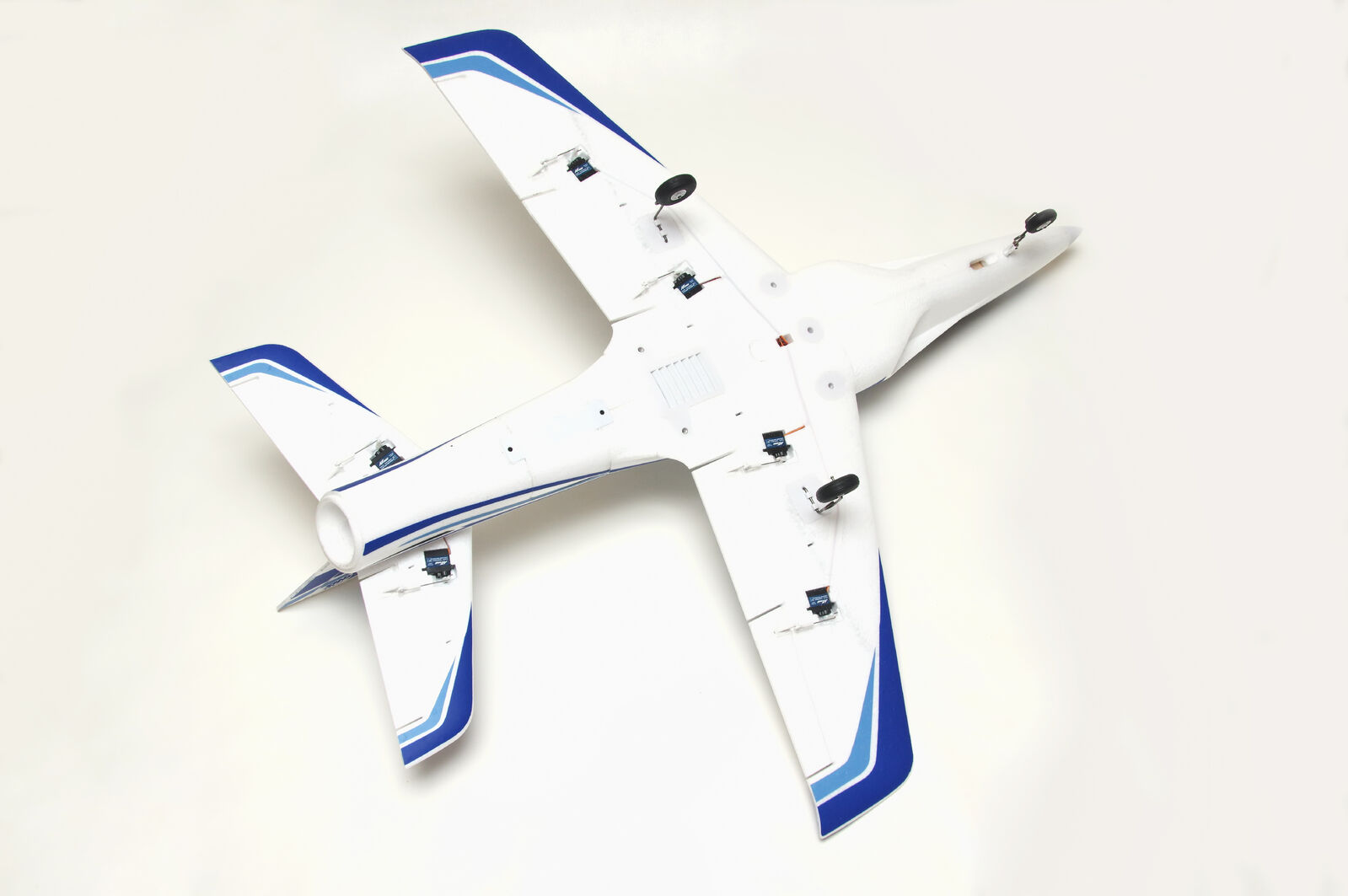

This plane basically has eight screws and some servo connections to complete assembly. No glue is necessary, and because we use 8 servos we are not running a lot of control rods around. Even the nose wheel has it's own servo. Flap and aileron connections are made with ball linkages, for greater strength at higher speeds. A latch type canopy makes in flight canopy loss a thing of the past.

If you are looking for a first EDF to try, or are looking to move up to a EDF without spending a bundle, this plane is for you.

Features

  • Sleek aerodynamic airframe
  • Screw together assembly
  • Flaps
  • Ball linkages
  • Latch type canopy
  • Ultra durable EPO foam
  • The perfect beginner jet!

Needed to Complete

This is a PNP rc plane and requires a radio system, battery, and charger to be complete.

Specifications

Wingspan 900mm (35.43in)
Length 995mm (39.17in)
CG (Center of Gravity) 72-75mm from leading edge
Power System 3150kV - 2840 size
Electronic Speed Control 40A
Propeller / EDF EDF 64mm 11 blade
Servos 9 gram servo x 7, 9 gram 54 degree servo x 1
Landing Gear Robust fixed
Required Battery 4S 2200-3300mAh 35C XT60 Connector
Required Radio 6 Channel transmitter and receiver required
Ailerons Yes, separate servo for each
Elevator Yes
Rudder Yes
Flaps Yes
Lights No
Hinge Type Fabric
Material EPO Foam
Skill Level Beginner to intermediate
Build Time 10 minutes
Recommended Environment Park, School, or AMA field

(AH009P)

SKU AH009P
Brand ARROWS HOBBY
