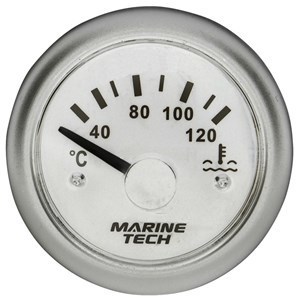

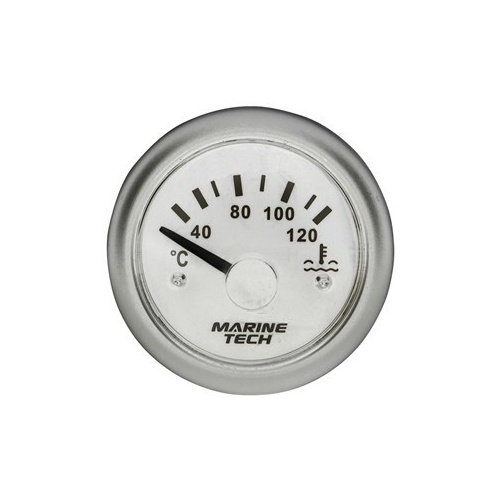

An essential gauge to monitor your engine. Accurately displays water temperature with reading range of 40 - 120°. Works with MGG510 water temperature sender.
MGG505 Black - White needle over black background
MGG506 White - Red needle over white background
  • 60mm overall bezel Dia.
  • 2" (52mm) panel cut out
  • IP67 ingress protection (Front Side)
  • IP65 ingress protection (Back Side)
  • Stainless steel bezel with flat glass
  • Background illumination (Red)
  • 12/24V
  • Pre-terminated connecting plug supplied
  • Dropping resistors supplied for 24V panel
  • Simple calibration set-up with clear instructions supplied
  • Extra technical tips for electrically noisy installations
*Panel thickness 0.8mm-25mm (reverse mounting the plastic lock nut achieves this.)
*Requires 55mm clearnace behind mounting panel
SKU AM-MGG506
Barcode # 9319236535257
Shipping Weight 1.0000kg
