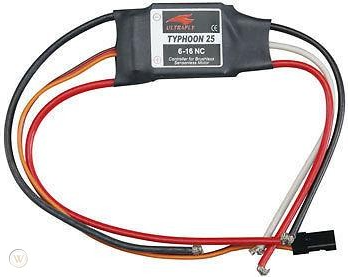

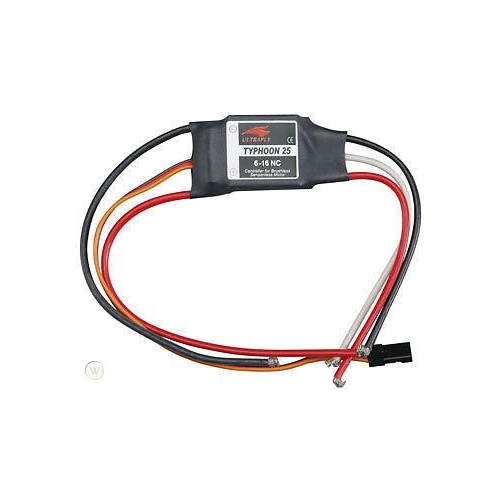

ULTRAFLY # UF-PSLC2501(UFLM1330) This is the Ultrafly Typhoon 25Amp Brushless ESC. FEATURES: Extremely low resistance (.013 ohms) High rate (7 KHz) switching (PWM) Up to 25 amps continuous current with proper air flow, 25 amp surge Five to eight cells with four micro servos Up to ten cells with three micro servos Sixteen cells MAX (with BEC disabled) Dynamic braking ensures folding props fold promptly User programmable features: Brake type - on/off, hard/soft Runs motor in forward OR reverse Auto motor cutoff with reset Safe "power on" arming program ensures motor will not accidentally turn on Low torque "soft start" prevents damage to fragile gearboxes Auto shut down when signal is lost or radio interference becomes severeINCLUDES: One Typhoon 25 Amp ESC InstructionsREQUIRES: Sensorless brushless motorSPECS: Length: 1-1/2" (37mm) Width: 15/16" (25mm) Height: 1/4" ( 6mm) Continuous current: 25 amp Weight: .70 oz ( 20g) BEC current limitation - Servo type 5-6cells 7-8cells 9-10cells Micro Servos 4 4 3 Hi Torque Servos 4 3 2COMMENTS: This speed controller would work well with the Ultrafly A/30/29 Brushless motor (UFLG1320).

SKU UF-PSLC2501
Barcode # 2000000015828
Brand ULTRAFLYMODEL
Shipping Weight 1.0000kg
