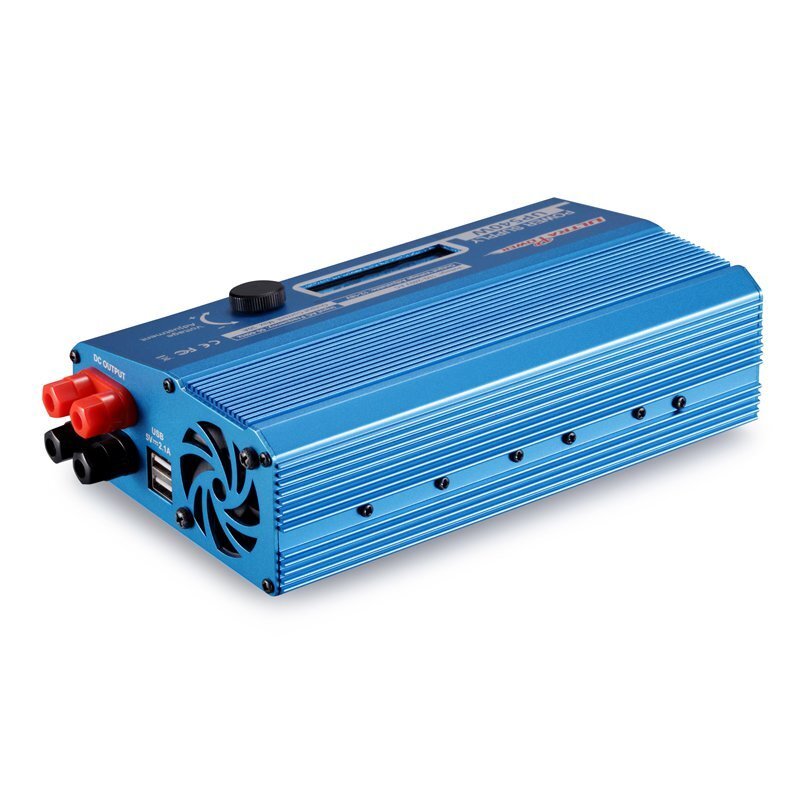

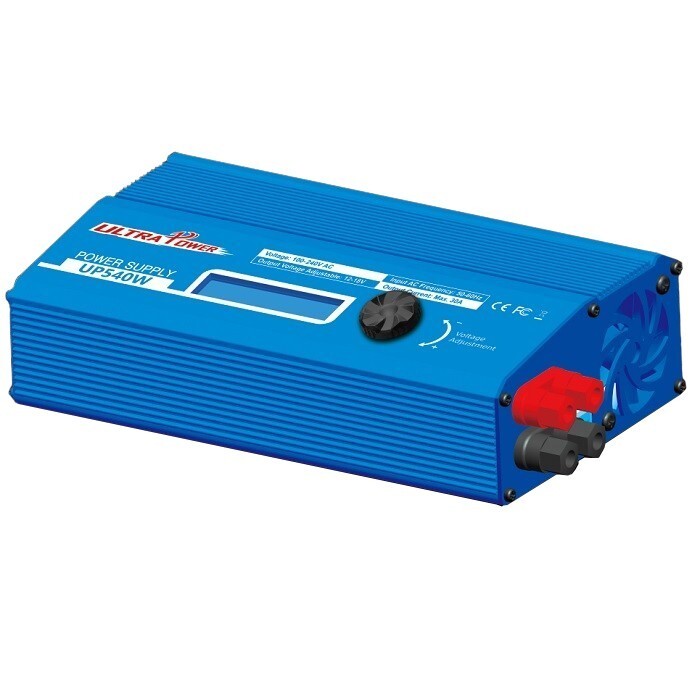

This is a 540W power supply unit from Ultra Power.

Ultra Power 540W, 30.0A Power Supply (240V to 12-18V)

Voltage 100-240V AC

Input AC Frequency 50-60Hz

Output Voltage 12-18V DC±0.5V

12-18V DC±0.5V 30A±1A

Current Overload Protection ≤31A 500MS

Input Fuse 10A Fuse

LCD Display - Voltage Precision ±0.3V

LCD Display - Current Precision ±0.3A

Output Voltage Ripple < 150mV

Power Efficiency 89%

Power Factor >0.98

Over Temperature Protection <65℃

Cooling Method Cooling Fan

Operating Temperature 0-40℃

Operating Humidity 0-90%

Dimensions (L*W*H) 210x130x59mm

Net weight 1.58kg

Brand Ultra Power

(800001525)

Voltage
100-240V AC
Input AC Frequency
50-60Hz
Output Voltage
12-18V DC±0.5V
12-18V DC±0.5V
30A±1A
Current Overload Protection
≤31A 500MS
Input Fuse
10A Fuse
LCD Display - Voltage Precision
±0.3V
LCD Display - Current Precision
±0.3A
Output Voltage Ripple
< 150mV
Power Efficiency
89%
Power Factor
>0.98
Over Temperature Protection
<65℃
Cooling Method
Cooling Fan
Operating Temperature
0-40℃
Operating Humidity
0-90%
Dimensions (L*W*H)
210x130x59mm
Net weight
1.58kg
SKU UP540W
Brand ULTRA POWER
Shipping Weight 3.0000kg
