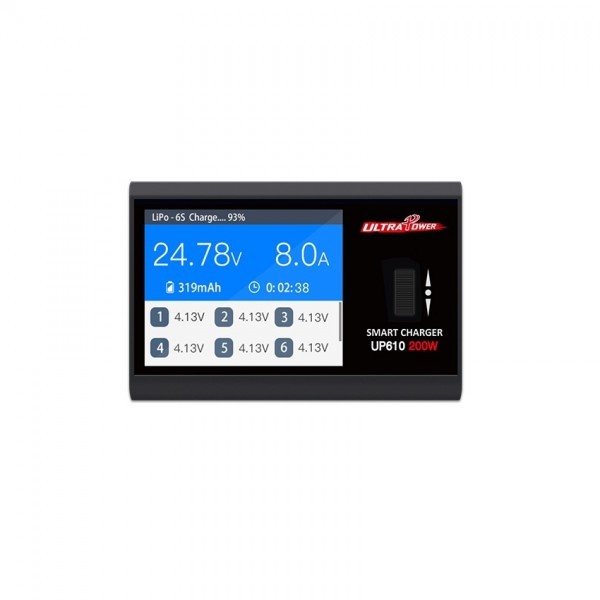

The UP610 charger utilises advanced synchronous DC power conversion technology to achieve an efficiency rating of over 90%. This means energy savings through efficiency, reduced heat build-up, and the ability to produce a small, compact and conveniently operation charger. Furthermore, the UP610 firmware can be updated through a convenient micro-USB port using a PC.

Specifically designed for smart charging

The display i visible in direct sunlight at up to a 20 degree angle.

Next generation smart balance charger

Optimal accuracy, with the ability to adjust the charge termination voltage.

Double up the power capacity, thinner, lighter

The UP610 charger has a rounded edge design which easily stows in a bag or pocket. It is the same size of the SC-608 charger with twice the power capacity.

  • Allowable DC input 9-32V
  • Affordable, portable and eay to operate
  • Balance mode - balance automatically with built-in balancer
  • Short circuit and reverse polarity protection
  • Adjustable current of 0.1 - 10A
  • Multiple languages - comes in a variety of languages to suit your needs
Input Voltage
DC 9 - 32V
Output Voltage
0 - 30V
Charging Current
0.1 - 10.0A
Discharge Current
0.1 - 3.0A
Max Charge Power
200W
Max Discharge Power
8W
Balance Current
500mA/cell
Balance Cells
6S
Battery Types
LiFe/LiIon/LiPo/LiHv (1-6S)
NiMH/Cd (1-16S)
Pb (1-12S)
Display Type
2.4" 320 x 240 IPS LCD
Operating Temperature
0 - 40 Degrees Celcius
Storage Temperature
-20 - 60 Degrees Celcius
Dimensions
87 x 57 41mm
Weight
110g
SKU UP610
