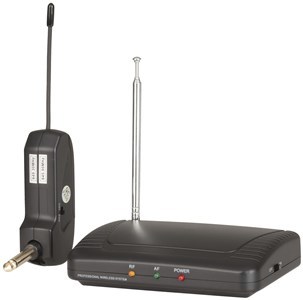

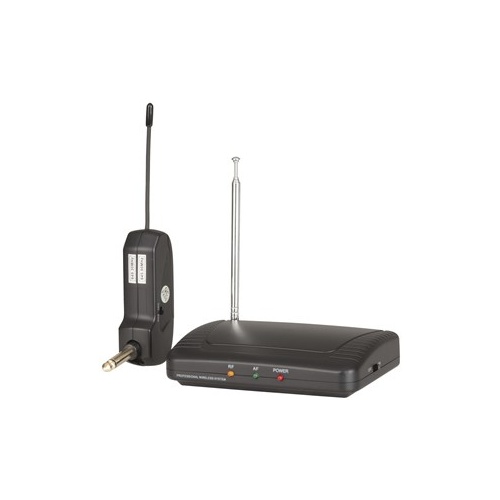

Firstly, this unit complies with the latest UHF frequency allocations for short range wireless PA transmitters. It operates on either 520.5MHz or 532.9MHz, user selectable. The transmitter is very compact with an almost unnoticeable 70mm long antenna. A 1/4" (6.5mm) phone plug on the unit simply plugs into the guitar body. Power is by 1 x AAA battery (not supplied). The receiver is very compact, measuring 115(W) x 80(D) x 25(H)mm. A telescopic antenna deploys to 270mm and folds down for transport. The front of the unit has pilot lights for RF signals, AF signal and power. An AC adaptor is supplied to power this unit. Output is via a 3.5mm socket and a 3.5 to 6.5mm adaptor lead is included if necessary. Instructions supplied.

Specifications:

Transmitter
* Freq stability: 0.002%
* RF output 10mw
* Range: 60m max

Receiver
* Sensitivity 2µV (12dB)
* Signal/noise: 90dB
* Dimensions: 115(W) x 80(D) x 25(H)mm
SKU AM-AM4109
Barcode # 9319236245217
