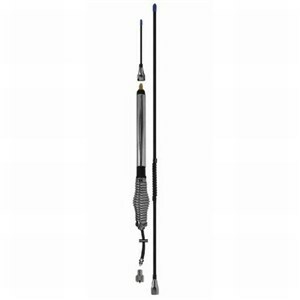

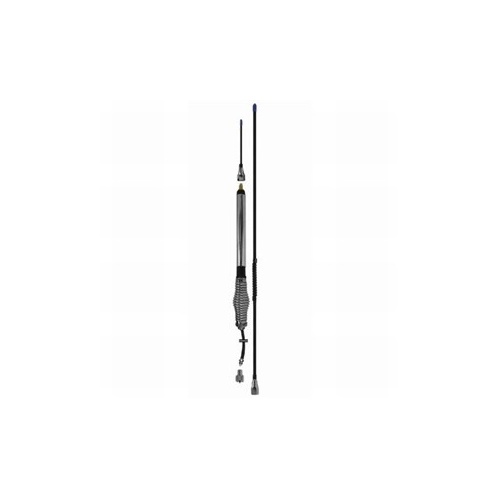

High gain mobile antenna suitable for cars, RV's and trucks. Its ground independence maintains a stable radiation pattern in all mobile mounting applications, and its robust construction ensures excellent longevity and performance. Kit includes stainless spring & elevated feed base, 6.5db & 3dB factory tuned antennas, 5m RG58 lead with FME socket and PL259 adaptor, as well as bull bar and 'L' guard mounts.

Specifications:
• Frequency: 476.42 - 477.40MHz
• Gain: 3dB, 6.5dB* (* Reference to ¼ waves mounted on centre of Vehicle Roof)
• VSWR: * Impedance: 50 Ω
• Polarization: Vertical
• Radiation: Omni Directional
• Cable: LL195 Low loss, 5m length
• Termination: FME socket + UHF plug to FME plug adaptor
• Base Materials: Stainless Steel Brass
• Antenna Length:
- 3dBi: 450mm
- 6dBi: 900mm

SKU AM-DC3071
Model # DC3071
Barcode # 9319236155004
