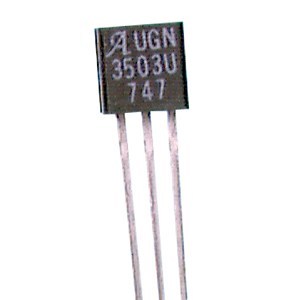

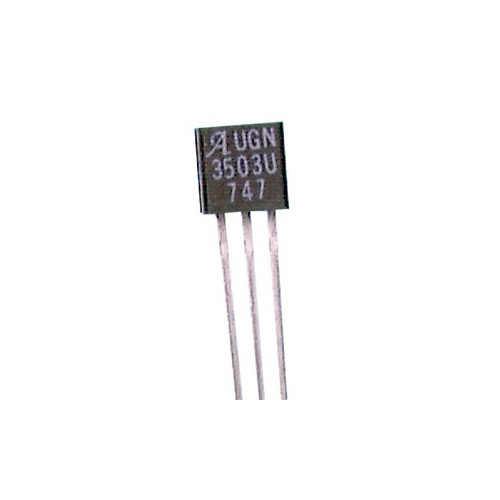

A miniature sensor to accurately track extremely small changes in magnetic flux density - changes generally too small to operate hall effect switches.

Specifications:
- Operating voltage: 4.5 - 6V DC
- Supply current: Typ. 9mA
- Output voltage: Typ. 2.5V DC
- Output resistance: 50
- Size: 4.17(W) x 3.10(H) x 1.57(D)mm
Applications include notch sensor, current monitor, gear tooth sensor, etc.
SKU AM-ZD1902
Model # ZD1902
Barcode # 9319236037447
