1 Specification

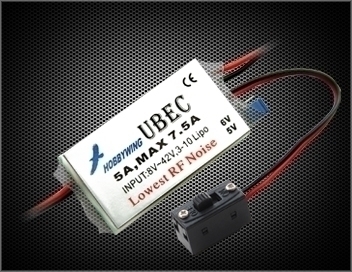

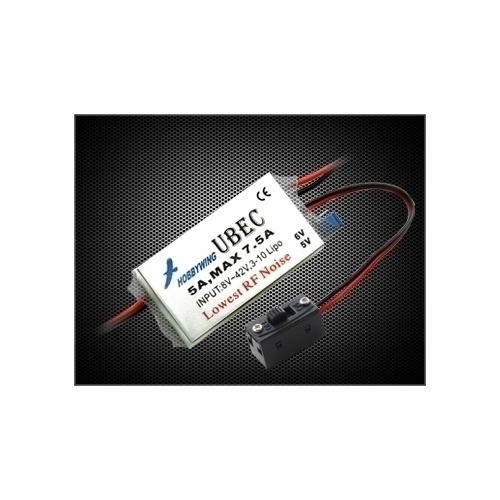

The 5A-HV-UBEC is a switch-mode DC-DC regulator works with 3S to 10S Lipo battery, and outputs a consistent safe power supply for your receiver, gyro and servos. It is very suitable for large scale electric powered RC models.
By using this UBEC, the receiver can obtain the power supply directly from the main battery pack, so the additional battery pack for receiver is unnecessary.

1.1 Output Voltage: 5V@5A or 6V@5A (Selectable by using a jumper connector)
1.2 Output current: Continuous 5 Amps, burst 7.5 Amps.
1.3 Input: 8V-42V (3-10S Lipo battery)
1.4 Size: 48mm*27mm*9mm (L*W*H)
1.5 Weight: 30g

2 Features

2.1 Uses advanced switch mode DC-DC regulator IC.
2.2 The output current is large enough to supply all electronic equipments in a RC model.
2.3 Much higher efficiency (up to 92%) than the linear mode BEC.
2.4 Output short-circuit protection function.
2.5 A metal shield and a filter significantly reduce the electromagnetic interference.
2.6 With ultra-wide input voltage from 8V-42V.
2.7 Safe power on with the Battery Polarity Reversal Protection function. If the input polarity is not correct, the UBEC will not be damaged.
2.8 The working status is shown by an LED, it lights when the UBEC works normally..
2.9 The output can be turned on or turned off by a switch.
2.10 With a step-down voltage regulator of 0.7V down as accessory.
(It changes the output from 6.0V to 5.3V for some special equipments that cannot work with 6V inputs).

SKU HW86010020
Brand HOBBYWING
