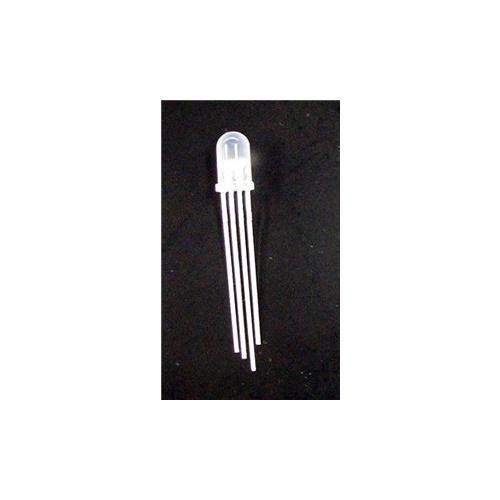

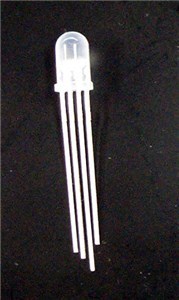

Red, Green, Blue tri-colour LED with common cathode to allow simultaneous use of all three elements. Illuminate the elements to different levels and you can acheive almost any colour.

Specifications:
• Colour: Red, Green, and Blue with common cathode
• Size: 5mm
• Lens: Diffused
• Viewing Angle: 45 degrees
• Wavelength: Red 625nm, Green 520nm, Blue 470nm
• Typical Forward Current: 20mA
• Typical Forward Voltage: Red 2.0V, Green/Blue 3.5V
• Luminous Intensity: Red 600mcd, Green 1000mcd, Blue 200mcd
• Continuous Maximum Current: 30mA

SKU AM-ZD0270
Model # ZD0270
Barcode # 9319236893050
