The Traxxas X-Maxx is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 Traxxas Maxx expertly packages X-Maxx’s innovative design elements and jaw-dropping strength into a lighter, more compact, even more ferocious beast. Now the newest Maxx is even bigger, with a longer wheelbase, beefier Sledgehammer® tires, and that incredible WideMaxx stance for even more intense action. Let the fun begin!

MODEL 89086-4: Maxx: 1/10 Scale Monster Truck. Ready-To-Race with TQi 2.4GHz radio system with Traxxas Stability Management, Self-Righting, and VXL-4s ESC

Length: 22.50 inches (572mm)

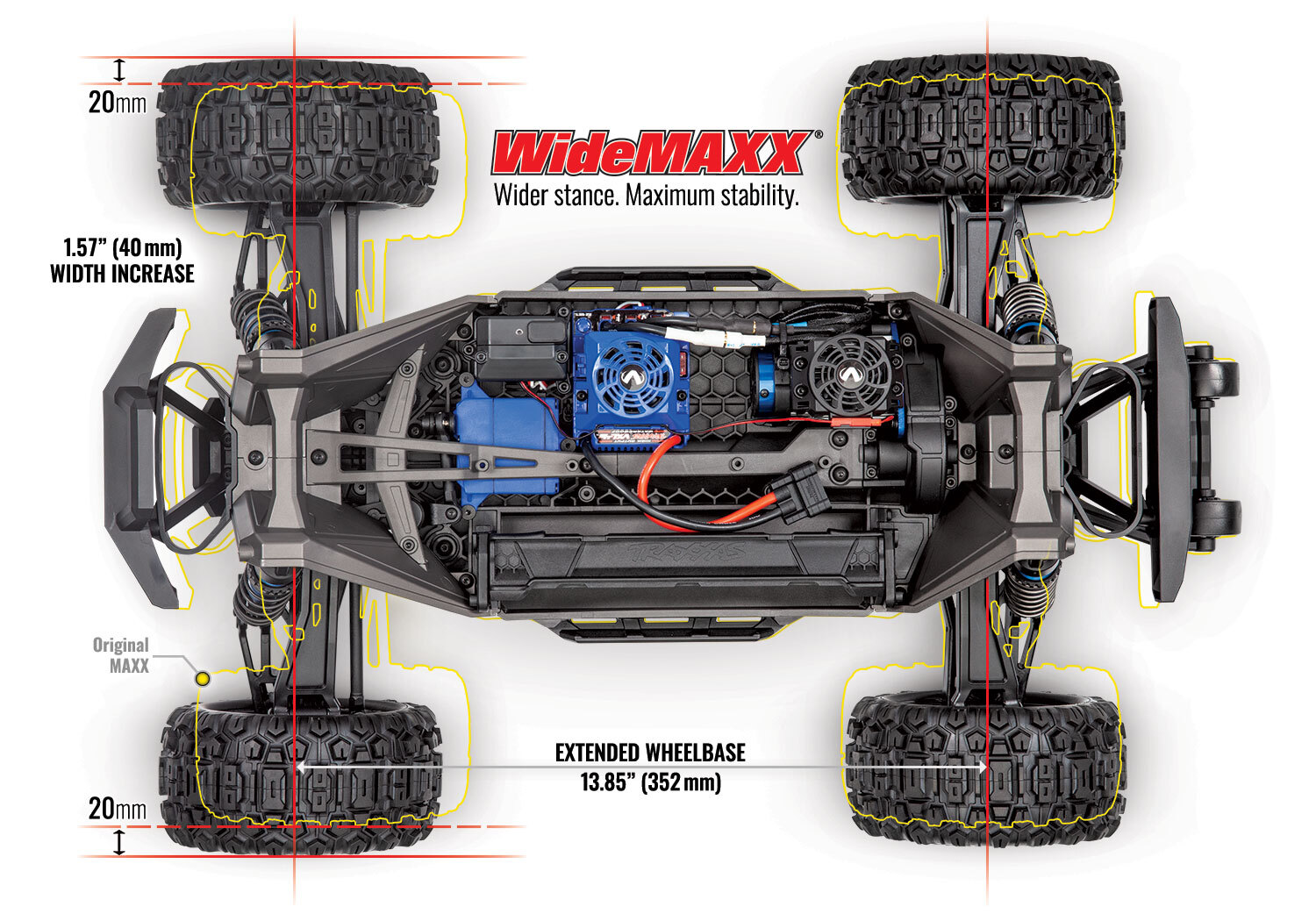

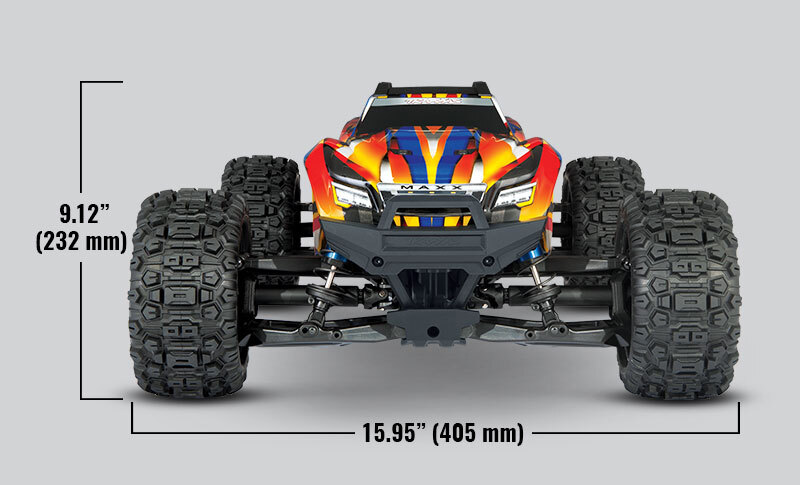

Front Track: 15.95 inches (405mm)
Rear Track: 15.95 inches (405mm)
Ground Clearance (lowest skid): 1.90 inches (49mm)
Ground Clearance (center skid): 2.6 inches (67mm)
Weight: 10.40 lbs (4.7kg)
Height (ride): 9.12 inches (232mm)
Wheelbase: 13.85 inches (352mm)
Shock Length: 4.90 inches (124mm)
Tire Diameter: 5.64 inches (143mm)
Wheel Diameter: 2.8 / 3.6 inches (70 / 92mm)
Speed Control: Velineon VXL-4s
Motor (electric): 540XL (2400 kV)
Transmission: Single-Speed
Overall Drive Ratio: 12.37 (23/50 motor pinion and spur gear)



Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: Module 1.0
Chassis Structure/Material: Composite Modular Tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank
Wheels & Tires: 2.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 5.6x2.8–3.6
Radio System: 2-Channel, TQi 2.4GHz Transmitter with TSM® receiver
Servo: Torque: 285oz-in.
Top Speed: 60+ MPH with 4S LiPo battery and optional gearing (sold separately)
Skill Level: 4
Battery Tray: 186mm L x 48mm W x 43mm H
Required Batteries: 4 “AA” (transmitter)



SKU 89086-4YLWRED
Barcode # 020334891815
Brand TRAXXAS
Shipping Weight 4.0000kg
SCALE 1:10
