Product Flier

factory-applied, flat finish MonoKote trim scheme

A factory-applied, flat finish MonoKote trim scheme minimizes building time while adding authentic warbird detail.
air tank

Remove the easy-access fiberglass hatch, and you'll find there's more than enough room to hold a retract filling valve and air tank, switches, charge jacks and a fuel dot.
A generously sized radio compartment

A generously sized radio compartment results in effortless installation of your system's on-board components.

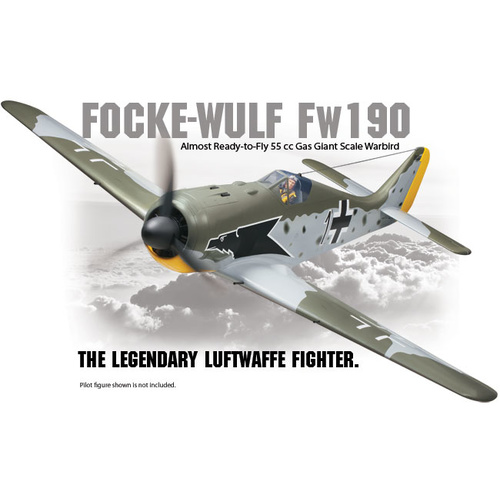

The fiberglass cowl precisely captures the lines of the full-size Fw 190

The fiberglass cowl precisely captures the lines of the full-size Fw 190. Other extras include a fiberglass tailwheel cover, a "stealth" cowl mounting system, molded exhaust ports and a painted aluminum 2-bladed prop spinner. (Shown with an optional 3-blade spinner [TOPA1882]).
Plenty of extraordinary details

Plenty of extraordinary details can be found within the Focke-Wulf's cockpit, including recessed gauges, a pilot's seat and side panels. (Pilot not included).

The Focke-Wulf’s split flaps aren't just historically accurate

The Focke-Wulf's split flaps aren't just historically accurate; they're also prehinged for faster assembly.
Robart Retracts add scale realism to your Fw 190.

Robart Retracts add scale realism to your Fw 190. To install, just follow the illustrated instructions provided in the manual. Pneumatic and electric versions are available. Please refer to the Product Recommendations.

Plenty of extraordinary details

Special features set Top Flite ARFs apart on the flying field, and this one's no exception. Antenna mounts and fiberglass gun breeches are only a few of the finishing touches you'll find on the Focke-Wulf Fw 190
In Action In Action In Action Box




PRODUCT RECOMMENDATIONS:
Please note: all recommendations were the best choices available at the time of product release. Please check with your dealer for additional choices.

FUTK9410 Futaba 14SGA 14-Channel Computer Telemetry System
FUTM0717 (9) Futaba S3071HV S.Bus HV HT BB MG Servos
FUTM0075 (1) Futaba S9001 Aircraft Coreless BB Servo
DLEG0455 DLE-55 Engines RE Gasoline Engine w/EI and Muffler
ROBQ1657 Robart Electric Retractable Main Landing Gear
—or—
ROBQ1658 Robart Pneumatic Retractable Main Landing Gear
ROBQ2220 Robart #160 Retractable Tail Gear Assembly
ROBQ2305 Robart #157VRX Air Control Kit
ROBQ2369 Robart #169 Pressure Tubing 10' Red/Purple
ROBQ2395 Robart #190 Air Line Quick Disconnects
FUTM0034 Futaba S3102 Micro Metal-Gear Servo Retract
ONXM2163 Onyx NiMH Receiver 4.8V 1600mAh 2/3A Flat Univ Plug (for ignition)
ONXM2364 Onyx NiMH Receiver 4.8V 3600mAh Sub-C Flat Univ Plug (for receiver)
FUTM4385 (2) Futaba Heavy-Duty Switch Harness
TACM2721 (2) Tactic 24" (610 mm) HD Servo Extension – Futaba J
TACM2711 (2) Tactic 12" (300 mm) HD Servo Extension - Futaba J
FUTM4135 (4) Futaba 6” (150mm) Y-Harness

RECOMMENDED OPTIONS
OSMG1561 O.S. GT60 Gasoline Engine with EI and Muffler
FUTM0075 Futaba S9001 Aircraft Coreless BB Servo (for optional choke)
TOPA1882 3-Bladed Spinner (Giant FW-190)


SPECIFICATIONS:
Stock Number: TOPA0706
Wingspan: 85 in (2,160 mm)
Wing Area: 1,198 in(77.3 dm2
Weight: 22-24 lb (9.98-10.88 kg)
Wing Loading: 42-46 oz/ft2 (128-140 g/dm2)
Length: 73 in (1,860 mm)
Requires: 7 (min) channel radio with 1 micro and 9 high torque servos, 2 standard servos, retracts and 50-60 cc gasoline engine
SKU TOPA0706
Barcode # TOP-A0706
Brand TOPFLITE
Shipping Weight 13.4000kg
Shipping Width 0.690m
Shipping Height 0.340m
Shipping Length 1.600m
Shipping Cubic 0.375360000m3
