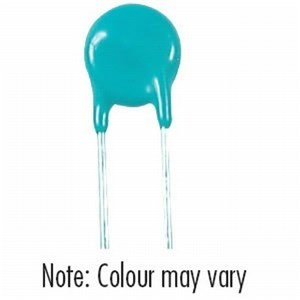

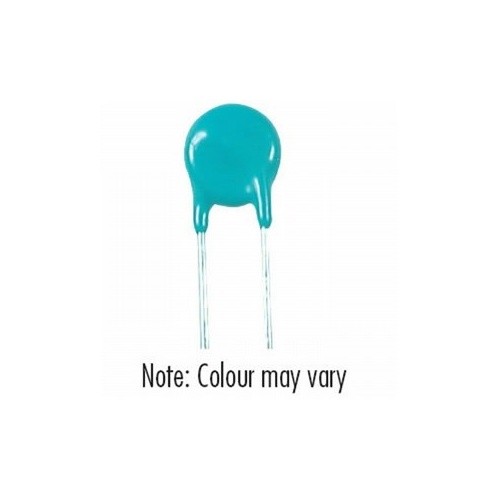

Negative Temperature Coefficient Thermistors

These devices are made of a special ceramic material which changes resistance value rapidly with temperature increase. They are commonly used to check thermal runaway in bipolar transistor amplifiers, etc., but really have dozens of other uses. They are rugged and very reliable.

• Resistance at 25°C ± 10%
• Temperature range: -20°C ~ 125°C
• Radial type, dipped epoxy
• Type-NTC ceramic material with tinned copper lead
• Dissipation (MAX) 500mW
• Case 5mm diameter
• Thermal dissipation constant: 6mW/°C
Specifications
Resistance (Ohm) 4.7k
Max current (mA) 45
SKU AM-RN3430
Model # RN3430
Barcode # 9319236905807
