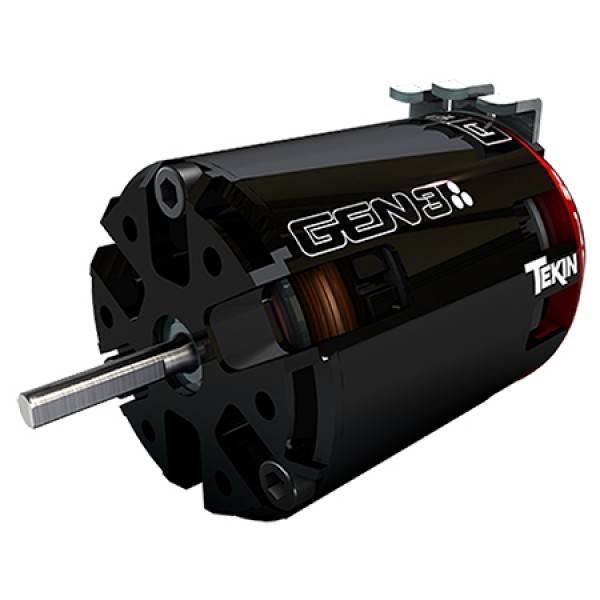

Tekin’s third generation motors are re-engineered from the ground up resulting in a smaller, lighter and faster sensored motor. On Road or Off, the new Gen3 handles the task in stride, delivering the smooth power across all RPMs that you’ve come to expect from a Tekin motor. Much more than a re-hash and new look, the Gen3 Redline Sensored Motor is now ready for any situation and able to create the speed you need to win.
  • CNC Machined T 6061 Billet Aluminum Heat Sink Can
  • Neodymium Sintered Magnet
  • Precision Engineered for Maximum Energy Conversion
  • High Purity Copper Windings Maximize Conductivity
  • Low Resistance, High Power Solder Tabs
  • Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
  • Anodized End-bell plates maximize corrosion and wear resistance
  • High RPM precision bearings
  • Rebuild-able Design
  • Solder-less Sensor PCB replacement
  • Adjustable Timing
  • Standard and RPM versions
Motor Type:
GEN3 Redline Sensored Motor
Size:
540
Turns:
7.5T
Adjustable Timing:
Yes
Input Voltage:
2S
Weight:
5.6 oz (158g)
Overall Diameter:
1.40 in (35.85mm)
Shaft Diameter:
0.125 in (3.2mm)
Shaft Length:
0.60 in (15.3mm)
Overall Length:
1.909 in (48.5mm)
SKU TEKTT2711
Brand TEKIN
