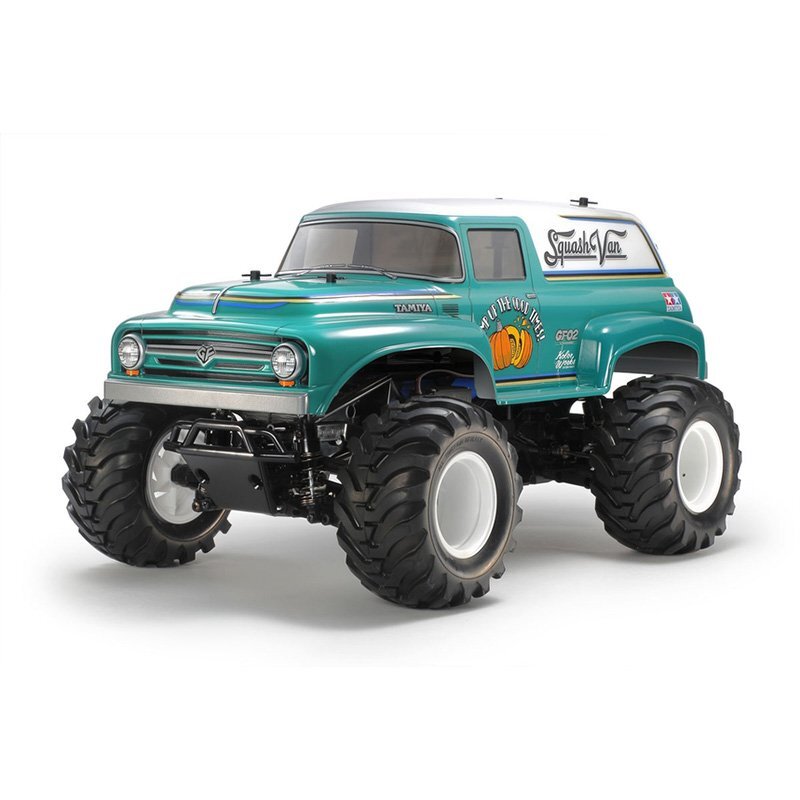

The Squash Van is our latest fun-to-drive big tire vehicle that is inspired by 1950’s American panel vans. The polycarbonate body shell sits on top of the new gear-driven 4WD GF-02 chassis, which is a variant of the comical GF-01. While the GF-01 chassis features a comical design, the GF- 02 chassis employs a more realistic wheelbase and a frame with ladder and pipe motifs.

GF-02 chassis
The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.

  • 1/10 R/C assembly kit. Wheelbase: 267 mm
  • Front/Rear tread: F: 223mm / R: 221mm.
  • V-Block pattern Block Tires 122.8mm diameter.
  • Gear Ratios: 18T (18.03:1), 20T (16.23:1), 17T (19.09:1) Kit is supplied with 18 tooth pinion gear.
  • 4WS-four-wheel steering compatible with separately sold third-party 4WS function radio.
  • Body post position same as long wheelbase CC-02 chassis.
  • Includes 540 brushed type motor and ESC.
  • Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint.

Other Details

  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic bushing
  • Body Material: Polycarbonate
  • Body Stickers: Included
  • Chassis Material: ABS Plastic
  • Chassis Type: GF-02
  • Construction Type: Assembly Kit
  • Differential Type: Gear
  • Drive Type: 4WD
  • Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
  • Motor: 540-brushed type
  • Required To Complete: 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
  • Scale: 1/10
  • Shock Damper: Friction type
  • Suspension: Fully Independent Double Wishbone
  • Terrain Use: Multi-Purpose



SKU 58725-60A
Barcode # 4950344587254
Brand TAMIYA
SCALE 1:10
