European Starlet

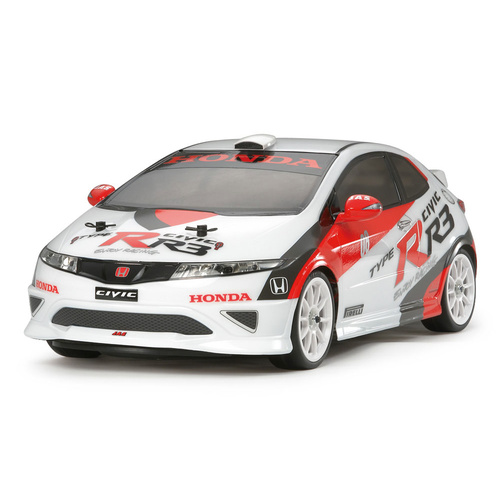

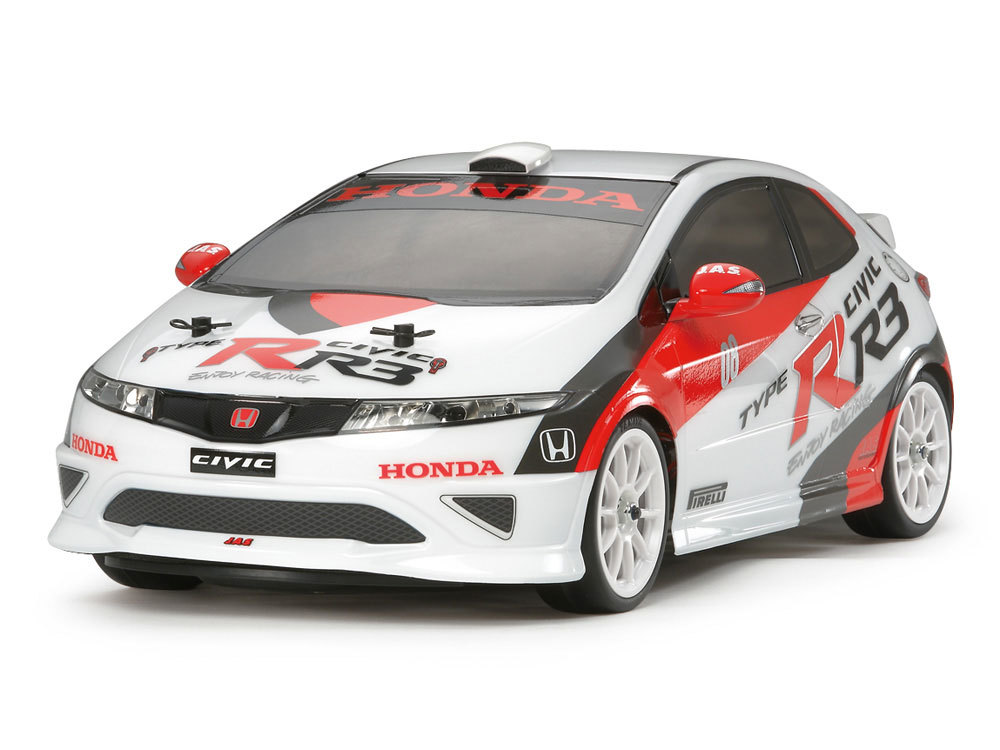

This is a 1/10 R/C assembly model kit of the Honda Civic Type-R R3 which was developed by Italian official Honda racing partner, J.A.S. Motorsport. The form of the 3-door hatchback, which features an air-intake on the roof, has been realistically reproduced. Parts including the roof's air-intake, side mirrors, and rear spoiler are reproduced with separate parts to provide the model with a sharper presence. The kit includes sticker sheet to faithfully reproduce the red and dark gray livery and the Type-R logos. The Honda Civic Type-R comes loaded on the front wheel drive FF-03 chassis.

FF-03 Chassis
The longitudinal battery layout allows for a slim chassis design, with the R/C units loaded on either side for optimum balance. In addition, the front-mounted, compact gearbox is equipped with a ball differential and provides the chassis with an ample amount of traction. 4-wheel double wishbone suspension features CVA oil dampers. An Inboard Front Suspension set-up with short reversible suspension arms enables well balanced settings. Furthermore, the rocker bridge is equipped with stabilizer holders. Take control of the FF-03 chassis and enjoy a new driving experience.

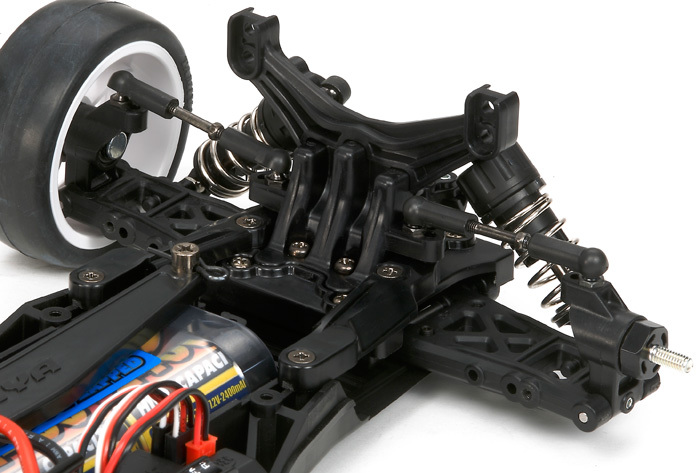

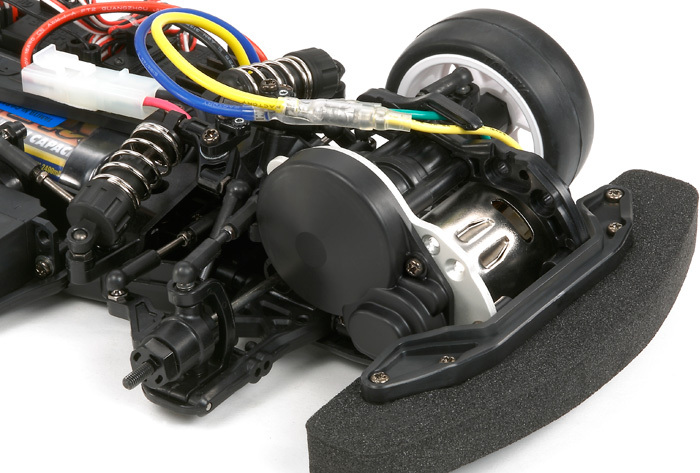

Front-end features an IFS set-up that enables fine suspension settings. The compact gearbox is equipped with a ball differential.

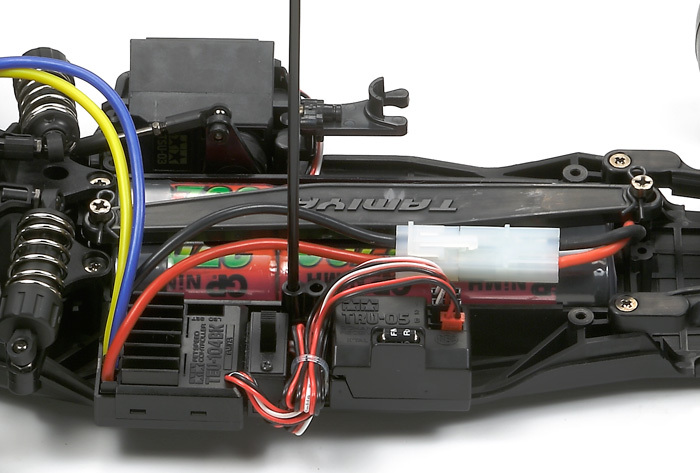

The longitudinal battery layout enables a slim chassis design. R/C units are loaded on each side for optimum balance.

Three wheelbases (257mm, 245mm, 233mm) are possible by changing rear section assembly.

Length: 423mm, Width: 188mm, Height: 140mm
Wheelbase: 257mm (257, 245, 233mm Adjustable), Tread (F/R): 157mm, Tire Width/Diameter (F/R): 24mm/64mm
Bathtub Type Frame Chassis
Front Motor Front Wheel Drive
Ball Differential Gear
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
CVA Shock Unit Super Min
Gear Ratio 6.80:1
Type 540 Motor Included

Separately Required Items
★2-Channel R/C System w/ESC ★R6/AA/UM3 batteries for transmitter ★Power source





SKU T58476
Barcode # 4950344584765
Brand TAMIYA
SCALE 1:10
