The Porsche 956 is an iconic sports prototype car which was developed along with the start of Group C regulations for the World Endurance Championship in 1982. In the same year, it achieved both Manufacturers and Drivers Championships. This assembly kit recreates the Le Mans version of the 1983 works Porsche 956 which achieved victory at all seven races in the 1983 season!

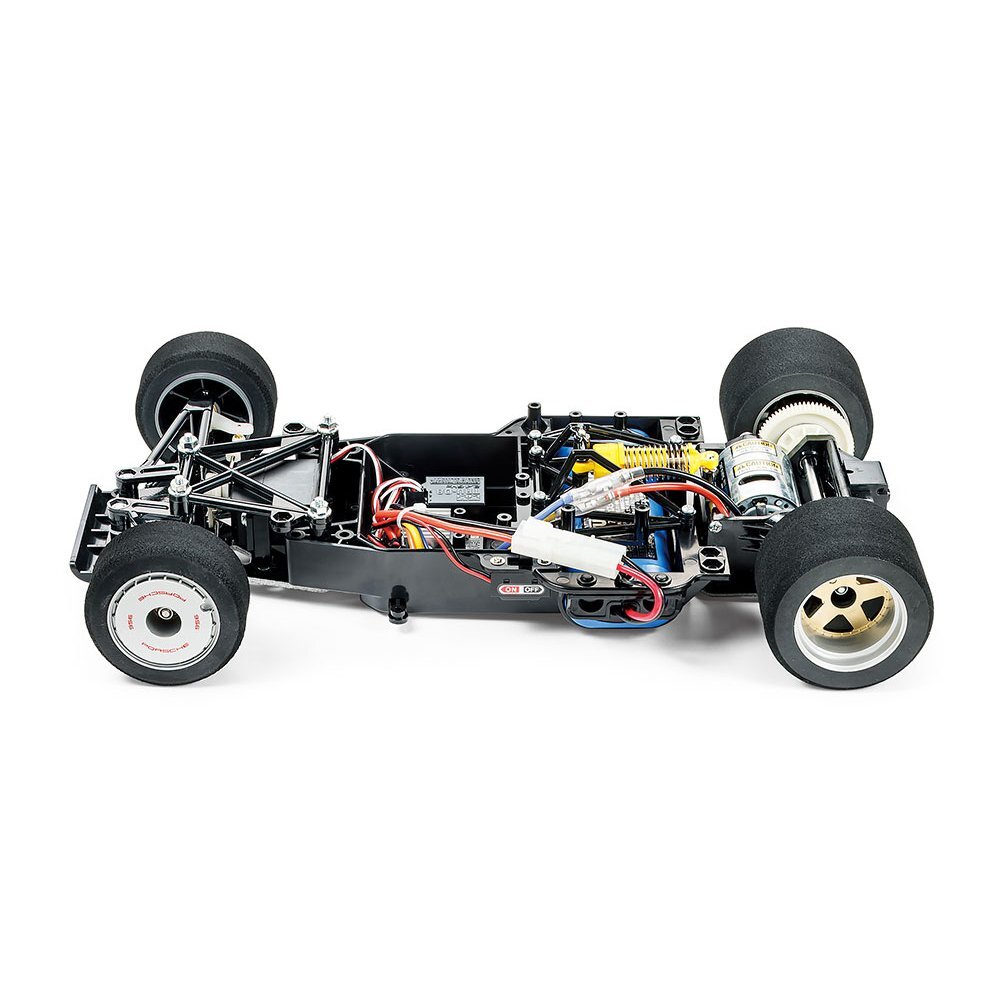

Direct-Drive 2WD Chassis
Based around an ABS plastic bathtub, with space frames front and rear and FRP plates, the chassis is a composite design that offers a rigid base to back up the fluid suspension: the result is a crisp, responsive driving experience. At the front, it has an independent coil-sprung king pin suspension setup, while the rear rigid suspension is a 3-point design with a 1.5mm thickness FRP T-bar and single CVA oil damper; teamed up with sponge tires front and rear, they ensure superb traction on smooth asphalt and carpeted surfaces. Additionally, use of spacers allows two different front and three rear ground clearance setups.

Features:

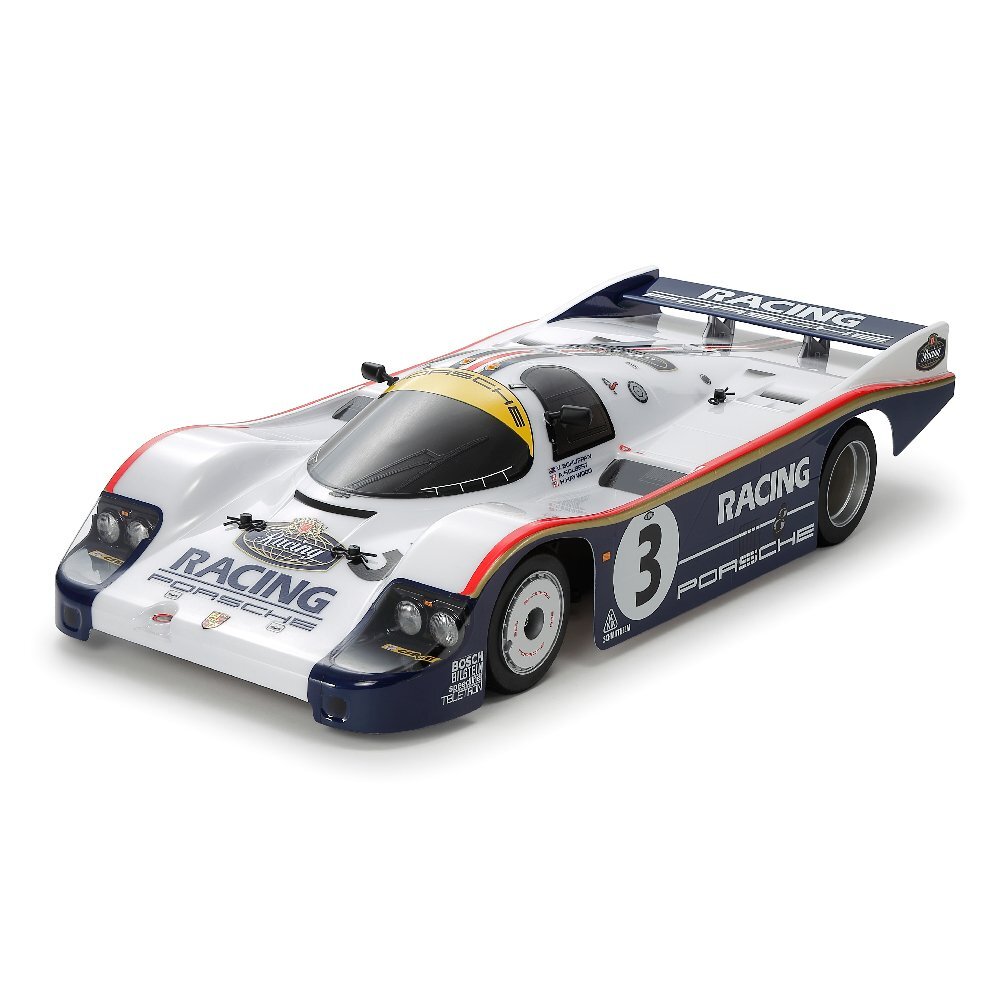

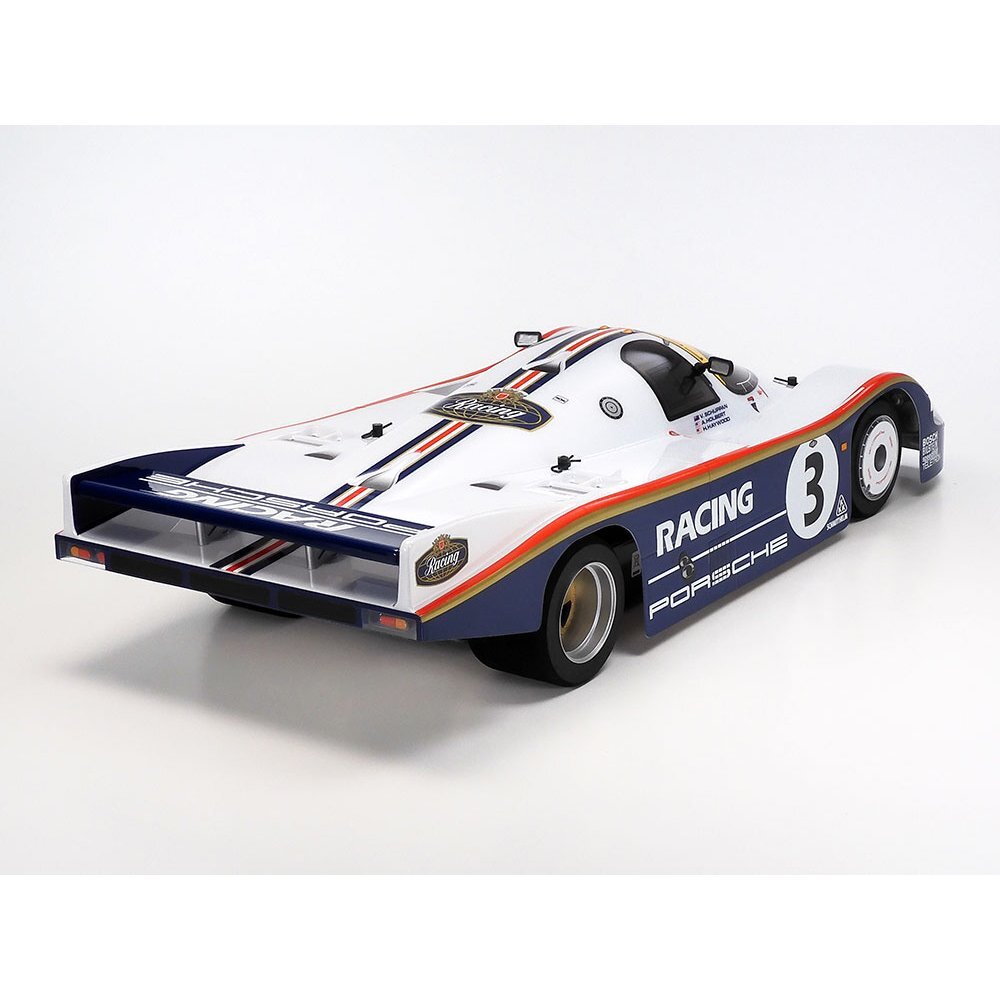

  • The distinctive long-tail body, front and rear light cases, and wing are separately molded in polycarbonate.
  • Features black ABS plastic side mirrors and wing stays.
  • Based around an ABS plastic bathtub, with space frames front and rear and FRP plates, the chassis is a composite design that offers a rigid base to back up the fluid suspension: the result is a crisp, responsive driving experience.
  • The model is powered by a Sport-Tuned motor and uses a direct drive setup with spur and pinion gear mated to a ball pressure plate differential for smooth cornering performance.
  • Dish (front) and 5-spoke (rear) wheels are paired with high-grip sponge tires. (Wheels require painting.)

What's in the box?

  • 1/10 scale R/C assembly kit.
  • Direct-Drive 2WD Chassis.
  • Sport Tuned 540-brushed type.

Specifications:

  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic bushing
  • Body Material: Polycarbonate
  • Body Stickers: Included
  • Chassis Material: ABS Plastic
  • Chassis Type: ABS Plastic Tub with Space Frame & FRP Plate
  • Construction Type: Assembly Kit
  • Differential Type: Pressure Plate Ball Differential
  • Drive Type: 2WD
  • Electronic Speed Control (esc): Sold Separately
  • Motor: Sport Tuned 540-brushed type
  • Required To Complete
  • Scale: 1/10
  • Shock Damper: CVA Oil Filled Rear Mono Shock/Coil Spring Front Suspension
  • Suspension: CVA Oil Filled Rear Mono Shock/Coil Spring Front Suspension
  • Terrain Use: On-Road

Item Dimensions - Without Packaging:

  • Length: 483mm
  • Width: 207mm
  • Height: 108mm
  • Wheelbase: 270mm

What you'll need:

  • 2-channel radio
  • Steering servo
  • ESC
  • 7.2-7.4volt battery & battery charger
  • Tamiya PS paint.
SKU 47508-000
Barcode # 4950344475087
Brand Tamiya
