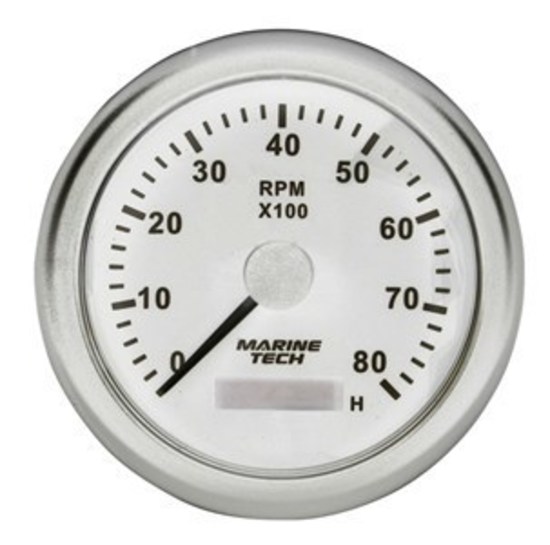

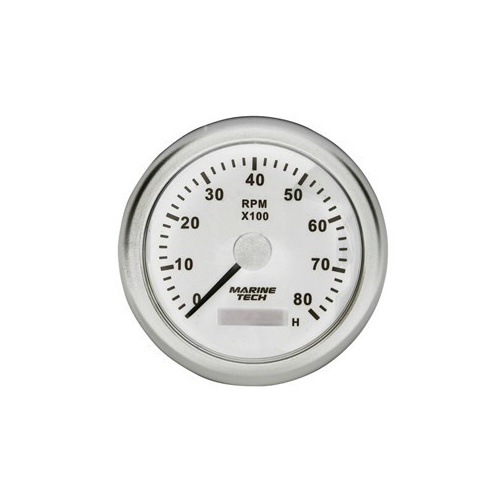

High precision tachometer using stepper moter driver. The gauge reads from 0-3000RPM (MGG105) or 0-8000RPM (MGG110/115). Features double layered anti-fogging glass and also an LCD hour meter.

MGG105 0-3000RPM Black - White needle plus LCD on black background
MGG110 0-8000RPM Black - White needle plus LCD on black background
MGG112 0-8000RPM White - Red needle plus LCD on white background
  • 100mm overall bezel Dia.
  • 3 3/8" (85mm) panel cut out
  • IP67 ingress protection (Front Side)
  • IP65 ingress protection (Back Side)
  • Stainless steel bezel with double layered anti-fogging glass
  • Background illumination (Red)
  • 12/24V
  • Pre-terminated connecting plug supplied
  • Dropping resistors supplied for 24V panel
  • Simple calibration set-up with clear instructions supplied
  • Extra technical tips for electrically noisy installations
*Panel thickness 6mm-35mm
*Requires 40mm clearnace behind mounting panel
SKU AM-MGG112
Barcode # 9319236535271
Shipping Weight 3.0100kg
