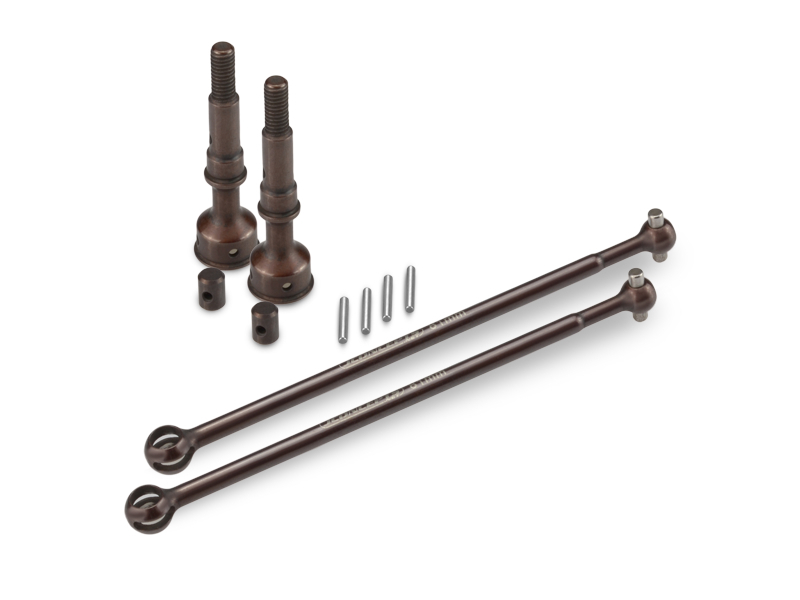

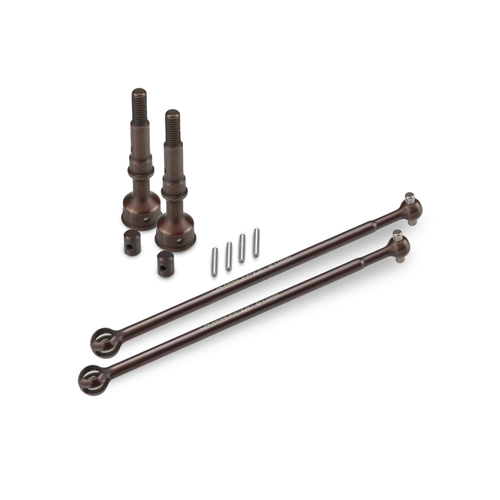

The drive system on any vehicle is critical but in off-road racing where long stroke suspensions are commonplace, CVA performance is vital.  JConcepts introduces a CVA set built for performance, durability and a high dose of glamour.  The design is based around the HD 5mm axle diameter which is able to stand up to a rigorous demands of today’s racing.  The bones have been machined of spring steel material for the ultimate in durability and performance and inserted with hardened steel pins on the drive ends.

The aluminum pin barrels have a high tolerance fit and finish for smooth and quiet performance. The look is unmistakably JConcepts with the high luster look of the advanced plating on the bones, axles and barrels which also provide corrosion resistance. For more recognition, the JConcepts.net logo is etched onto each bone for identification and authenticity.

Assembly –

Start by opening and identifying all individual components for each assembly. Apply a liberal amount of Team Associated “black grease” to the short barrel and insert into corresponding hole in the axle end. Position the bone directly over the axle with barrel in place and carefully line up the holes / slots through bone, axle and barrel.  Insert one of the included steel pins to connect the assembly. Insert completed CVA into bearing and hub assembly and drop another steel pin and center on the axle. Slide stock hex adaptor over the axle and line up the pin with the slot on the back of the adaptor and push into place. Insert included screw into hex adaptor and tighten lightly to clamp assembly into place.

Features:

  • CNC-machined, spring steel bone and axle
  • Heavy-duty / high quality, peace of mind performance
  • Advanced plating for corrosion resistance
  • Laser engraved JConcepts.net logos

SKU JC2438
Barcode # 845937013354
Brand JCONCEPTS
