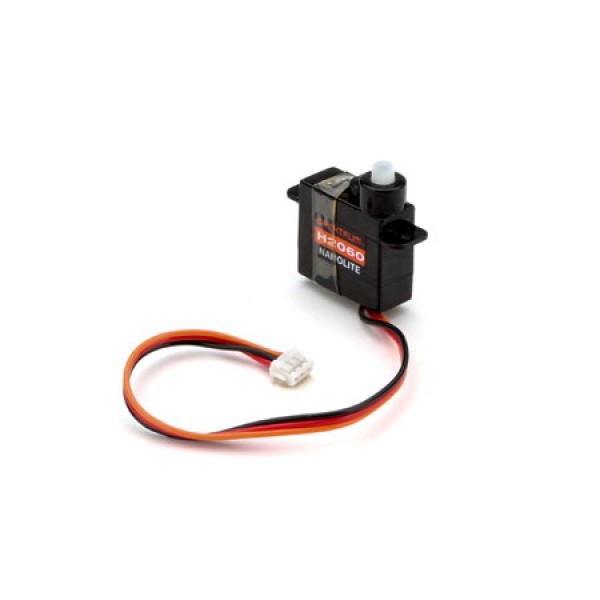

Weighing just 4 grams, the SH2060 is capable of producing up to 11.4 oz-in of torque with transit times as low as .07 sec. This potent combination of power and speed makes it an excellent choice for ultra micro CP helis designed for 3D aerobatics.

Size Category
Minis and Micros
Type
Digital
Application
Cyclic Servo: Helicopter
Torque
9 oz-in @4.8V, 11.4 oz-in @6V
Speed
0.08 sec/60 deg @ 4.8V; .07 sec/60 deg @ 6V, at no load
Length
0.77 in (19.6mm)
Width
0.32 in (8.15mm)
Height
0.98 in (25mm)
Weight
0.14 oz (4g)
Bushing Or Bearing
Bushing
Connector Type
Z-connector
Gear Type
Nylon
Gear Material
Nylon
Current Draw Idle
2mA @ 4.8V; 0.18mA @ 6.0V
Current Draw Stall
2.4mA @ 4.8V; 2.21mA @ 6.0V
SKU SPMSH2060
Barcode # 605482556337
Brand SPEKTRUM
Shipping Weight 0.5000kg
