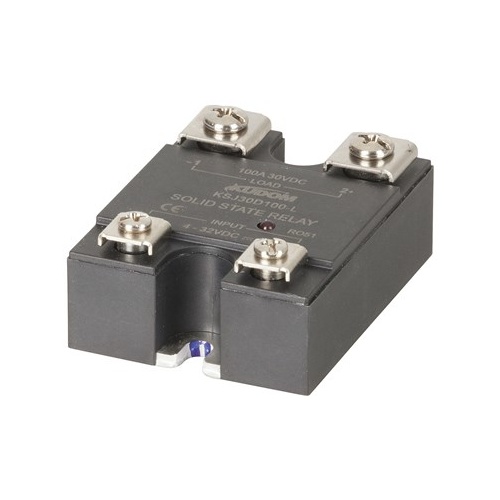

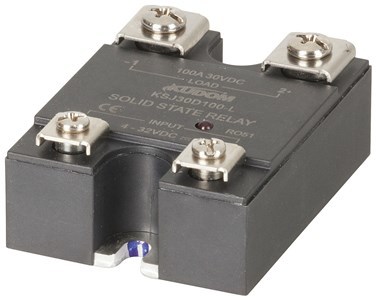

This panel mount solid state relay offers 4 -32VDC input control, with a switched output rated at 30VDC/ 100Amps. Note, please refer to the data sheet; especially the Precautions 1, 2, 3 and 4 and make sure the heat sink size is adequate for high current loads. Switching high current DC loads normally requires use of a contactor to avoid arcing as the contacts try to separate. This solid state relay uses MOSFET technology to provide an economical and reliable method of switching medium to high power DC loads. This means there is no arcing and the low on-state resistance provides a viable alternative to the bulky and expensive contactors.

Note: Inductive loads must have diode suppression (Refer data sheet wiring diagram)

Output Circuit
• Load Voltage: 0-30VDC
• Load Current: 0.02-100A
• Max On-State Resistance: 0.007Ohms
• Max On-State Voltage Drop: 0.35V
• Max Turn On Time: 0.5ms
• Max Turn Off Time: 0.5ms
• Max Surge Current: 240A (10ms)

Input Circuit
• Control Voltage: 4-32VDC
• Control Current: 28mA max.
• Min Turn Off Voltage: 1.0VDC
• Input Resistance: 1.2kOhm
SKU AM-SY4086
Model # SY4086
Barcode # 9319236922415
