Description

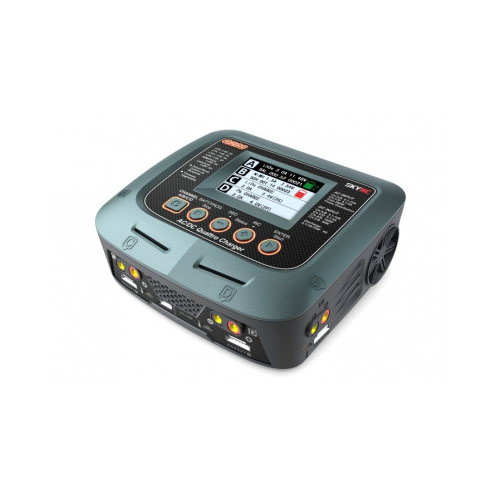

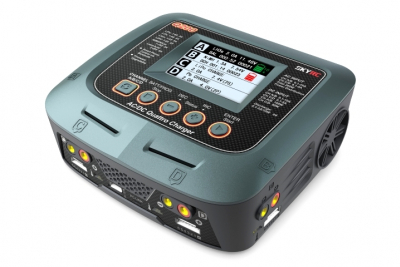

  SkyRC Q200 is a Quad-channel charger with 4 independent circuits, which can charge four different kinds of batteries simultaneously. The charger adopts a 480×320 color LCD display, and paired channels (A&C or B&D) support power distribution in AC mode. Moreover, users could either connect it to PC or mobile device to further expand their using experience. Firmware upgrade is available via PC software interface.

  You can charge 4 different kinds of batteries simultaneously.

SCAN TO GO

A very unique feature of Q200 is SCAN TO GO (automatically charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident.

The revolutionary SCAN TO GO provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using “SkyCharger” apps. Print it and paste it on the battery.

Using your smart phone and launch “SkyCharger” app. Since all the essential information is stored in the QR Code. All you need to do is press the Scan button, and the charge or discharge process will start automatically.




How to use “SCAN TO GO”

  Q200 supports power distribution in AC mode. For example, Channel B is 79W, then Channel D will be 21W, but total power will remain 100W. Channel A and C works the same way.

  Q200 is capable of charging / discharging the new generation of Lithium battery whose maximum voltage is 4.35V.

  During the manufacturing process every Q200 production unit gets tested and calibrated after highest factory standards. Ambitious users who trust their own expensive equipment more or who prefer their personal fluke to serve as reference have the possibility to adjust the Q200 factory calibration by a few counts.

  SkyRC Q200 employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.

  Automatic Charging Current Limit
Capacity Limit
Temperature Threshold
Processing Time Limit


  The charger can store up to 10 different charge/discharge profiles in each channel, few clicks can activate them, which saves you repeating the dull settings.

  The charger can read individual cell voltage and the total voltage of the battery pack.

  The charger can test individual cell's internal resistance and the total internal resistance of the battery pack.

  The PC software enriches operating experience, like viewing realtime graphs of voltage, amperage, capacity and temperature.


  Enhance your charger with the SkyCharger APP
  The Bluetooth 4.0 connectivity allows the user to remote control and monitor the Q200 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android. Explicit pairing is not required; after download and installation just activate Bluetooth on your mobile device and launch the app. Q200 and your device will establish Bluetooth connection automatically.









  Dimension

  Net Weight   1335g
  Input Voltage   AC100-240V / DC 11-18V
  Charge Circuit Power   DC Input: CH A/CH B: 100W CH C/CH D: 50W
  AC Input: CH A+CH C=100W CH B+CH D=100W;
CH A/CH B: 50-100W   CH C/CH D: 0-50W
  Discharge Circuit Power   4 x 10W
  Charger Current Range   CH A/CH B 0.1-10A
CH C/CH D 0.1-5A
  Discharge Current Range   0.1-2A x 4
  Current Drian for Balancing Port   Max 200mA/cell
  Trickle Charging Current   50mA-300mA & OFF
  LiPo/LiFe/Lilon/LiHV Battery Cell Count   1-6S
  NiMH/NiCd Battery Cell Count   1-15S
  Pb Battery Voltage   2-20V





SKU SK-100104
Barcode # 2000000009858
Brand SKYRC
Shipping Weight 3.0000kg
