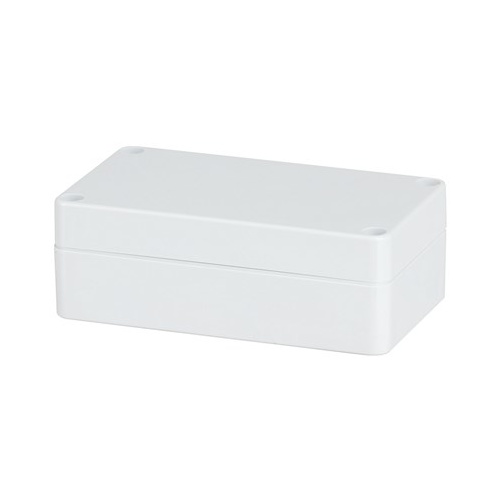

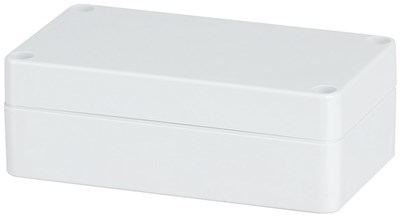

Made with Polycarbonate material and moulded in light grey.
Operating temperature : minus 40C to 125C

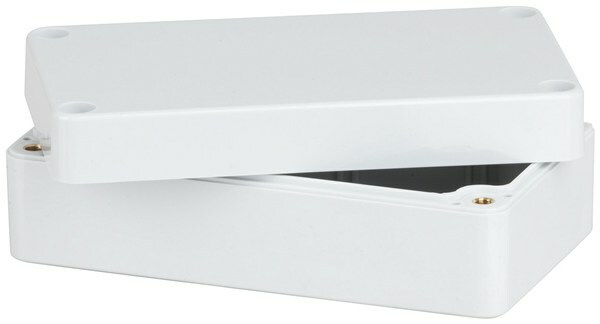

The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)

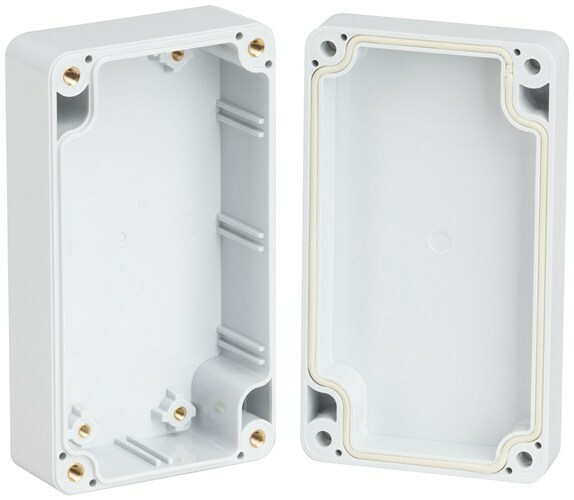

Internal guide slots for mounting PCB assemblies vertically
External mounting plate (4pcs) made of thermoplastic are available as an option
External hinge kit (2pcs) made of thermoplastic are available as an option.

Width Depth Height
115 65 40

All measurements in mm.
SKU AM-HB6212
Model # HB6212
Barcode # 9319236868614
