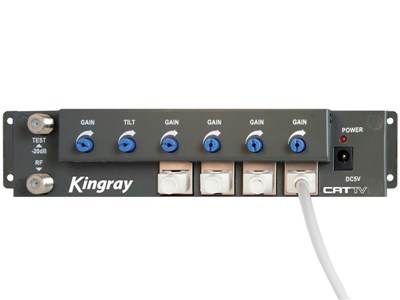

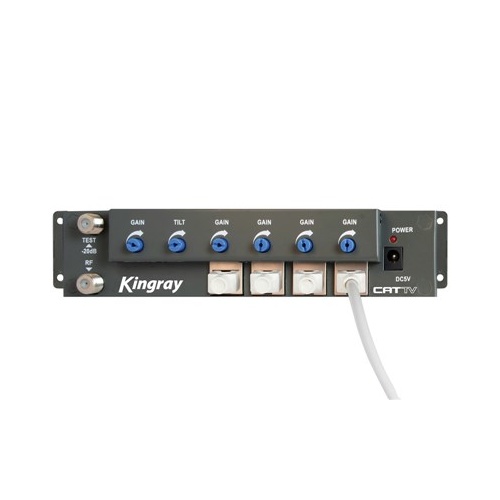

At the heart of the Kingray CATTV™ system is the CAT01 high output distribution ampli?er – capable of supplying quality signal to up to four televison receivers. The CAT01 ampli?er incorporates master gain and tilt controls, plus individual gain controls for each outlet, delivering a balanced output level regardless  of cable lengths.

Features:
• High Output
• 35dB maximum gain
• -20dB test point
• Wide bandwidth

Specifications:
Frequency Range: 47-862MHz
Gain: 35dB max.
Output Level: 98dB
Minimum Input Level: 63dBµV
Tilt Control: 0-15dB
Input Gain Control: 0-20dB
Noise Figure: -8dB
Return Loss: -13dB
Isolation: -20dB (port to port)
Test Point: -20dB
Current Draw: 800mA at 5VDC
SKU AM-LT3236
Model # LT3236
Barcode # 9319236732526
