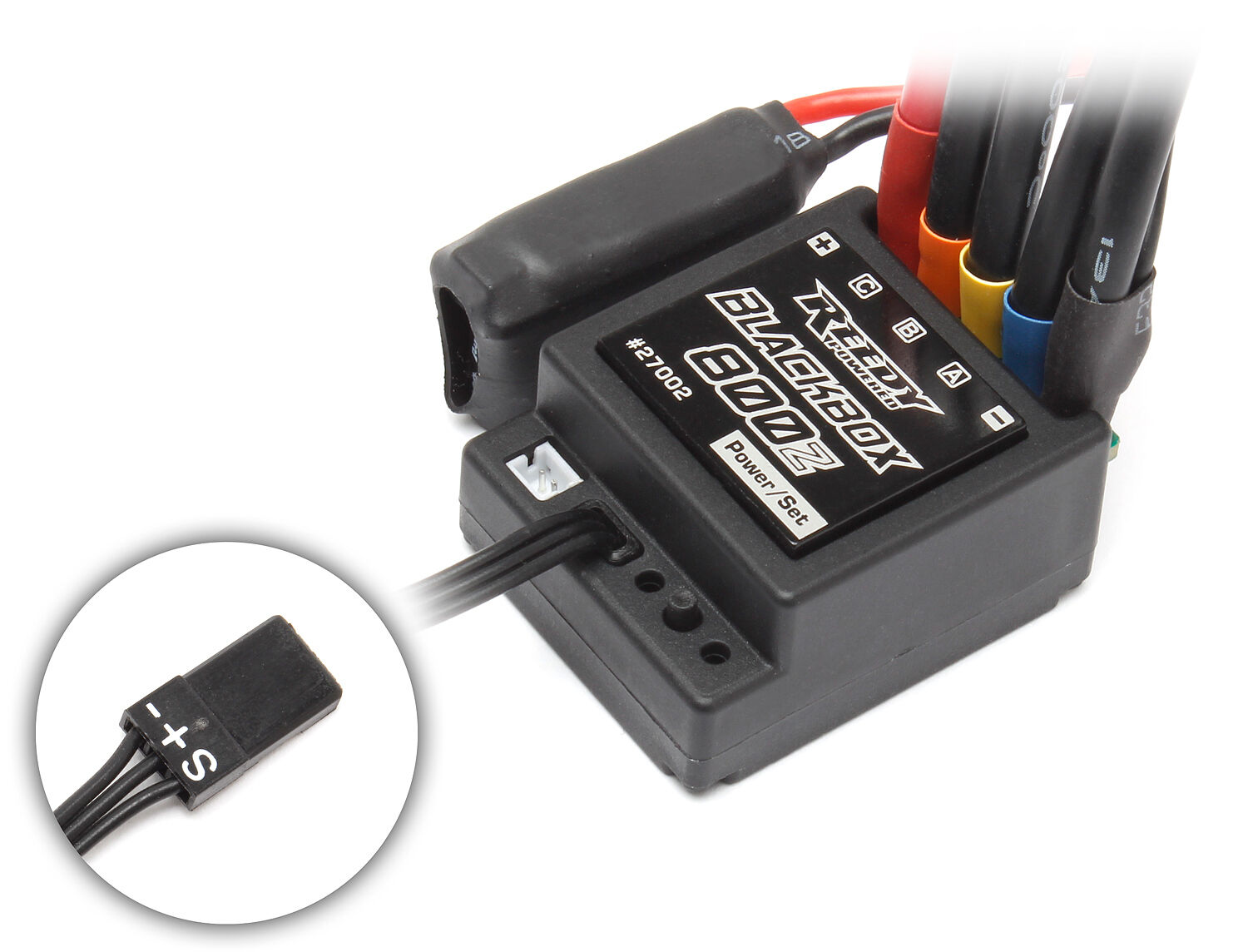

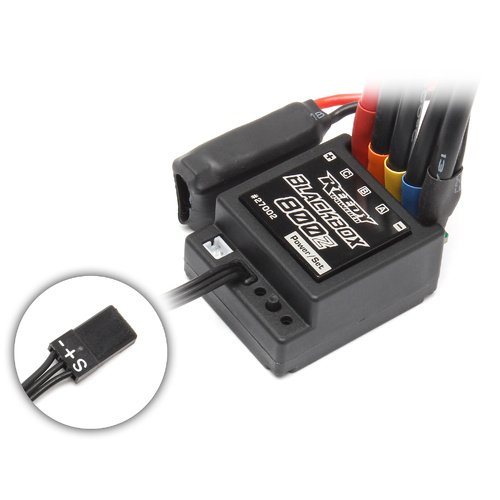

Track tested and competition proven, Reedy's Blackbox 800Z Zero-Timing Sensored Brushless Competition ESC is a simple to use, economical, and powerful ESC for Spec class racers. Excellent throttle and brake feel, a wide range of adjustability, and robust hardware make the Blackbox 800Z suitable for a variety of Spec racing applications.

Adjustable Settings



  • Operation Mode - Select Forward/Brake (F/B) or Forward/Brake/Reverse (F/B/R) operation
  • Drag Brake - Adjust automatic braking strength when the throttle trigger is returned to neutral
  • Power Profile - Increase or decrease punch
  • Drive Frequency - Adjust to create a smoother or more aggressive throttle feel
  • Brake Frequency - Adjust to create a smoother or more aggressive brake feel
  • Restore Default - Restore the factory default settings



SPECIFICATIONS
Voltage Input: 7.4V / 2S LiPo
On Resistance (Ohm): 0.0004
Continuous Current (Amp): 80
Dimensions (mm): 40.2 x 31.0 x 18.8
Weight without Wires (g): 37
Motor Limit: 10.5T
SBEC: 6.0V / 3A

SKU ASS27002
Barcode # 784695270022
Brand REEDY
