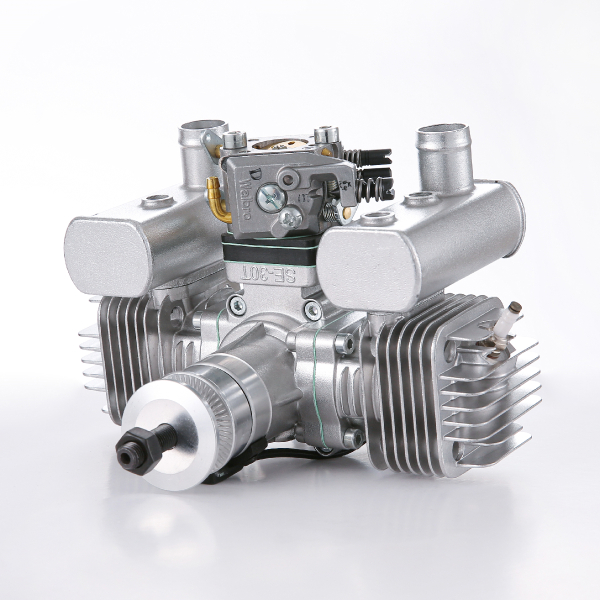

RCGF Stinger 30cc TWIN
Smooth operation — Smaller size
RCGF high end Stinger 30cc twin cylinder engines are ready, you can get more smooth fly experience. It is small, powerful and easy starting,It is your very good choice for small size twin cylinder engine

 Parameter

Type 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) 30cc (1.83 cu in)
Bore x Stroke (mm) 1.26 in(32mm) x 0.77 in (19.6mm)
Recommended props 18×8, 18×10, 19×8 & 20×8
Maximum Output 3.7HP /7500rmp
Power supply 7.4V-14V
  1. Carburetor : Walbro
  2. Ignition : Stinger DC-CDI (Computer Controlled auto advance, electronic ignition system)
  3. SPARK PLUG: M8(1/4-32)
  4. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
  5. speed rang : 1500-8500rpm
  6. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 25:1 for Break in | 40:1 After run in)
  7. Lubrication Oil : DELUXE MATERIALS POWER MODEL 2T-S OIL POWER2T-S.
  8. performance 2 cycle fully synthetic engine oil etc .
  9. Break in Propeller : 18X8 (Standard Two leafs prop)
  10. Cooling System : Air Cooled

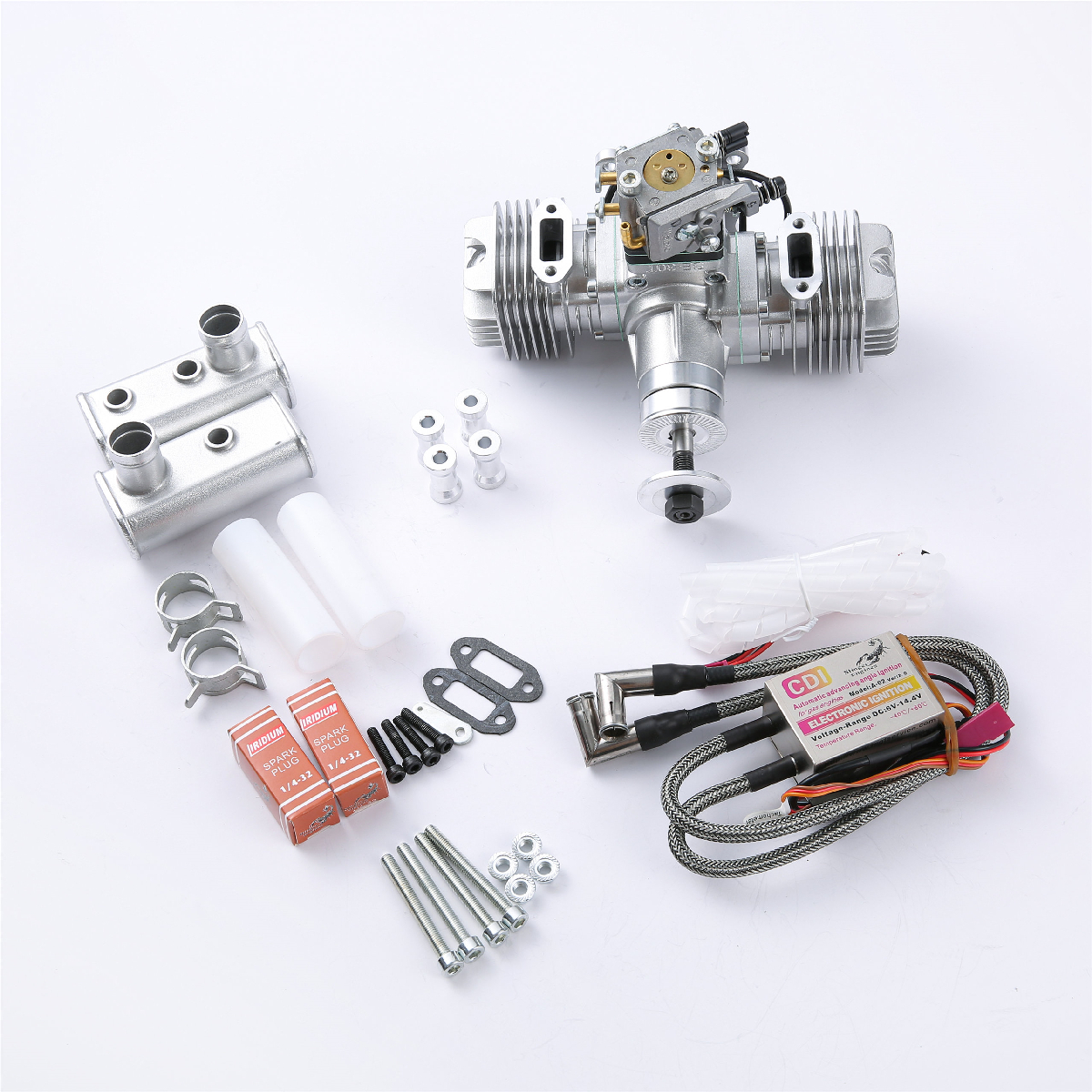

  11. RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight:

  1. Engine: 2.03 lb (923g)
  2. 2XMuffler: 2.71 oz (77 g)
  3. Ignition Module: 5.1 oz (145 g)
  4. Total: Weight: 2.53 lb (1145 g)

Technical Data:

  1. Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
  2. Gasoline/Oil Mix: (recommended : 25:1 Break in, or 40:1 synthetic oil when run in) We reccomend DELUXE MATERIALS POWER MODEL 2T-S OIL POWER 2T-S
  3. Replacement Spark Plug: M8 1/4-32 or equivalent
  4. Idle Speed: 1600 rpm/min
SKU RCGF30TWIN
Barcode # 2000000034898
Brand RCGF STINGER
