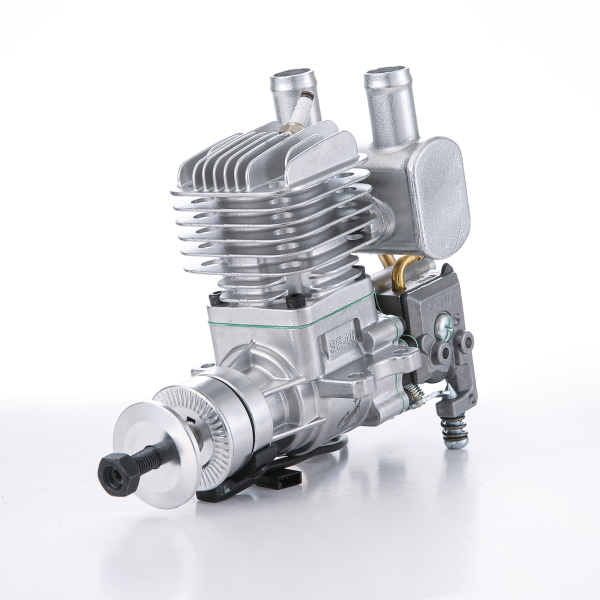

RCGF Stinger 10cc RE
Glow size:economy and powerful
NEW ENGINE ,NEW Design, More powerful, Stronger materials .
The rear exhaust design make it fit more narrow airplanes especially the warbirds .

Type 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) 10cc (.61 cu in)
Bore x Stroke (mm) 1.08 in (27.6mm)*0.67 in (17mm)
Recommended props 13x6, 14x6,13X8,13X7
Maximum Output 1.9 hp @ 12000rpm
Power supply 7.4V-14V
  1. Carburetor : Walbro
  2. Ignition : DC-CDI (electronic ignition system)
  3. SPARK PLUG: M8 1/4-32
  4. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
  5. speed range : 2000-12000rpm
  6. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 25:1 for Break in | 40:1 After run in)
  7. Lubrication Oil : DELUXE MATERIALS POWER MODEL 2T-S OIL POWER2T-S.
  8. Break in Propeller : 13*7 ; 14*6  (Standard Two Blade)
  9. Recommended Airplane: 50 size plane,40 size plane
  10. Cooling System : Air Cooled

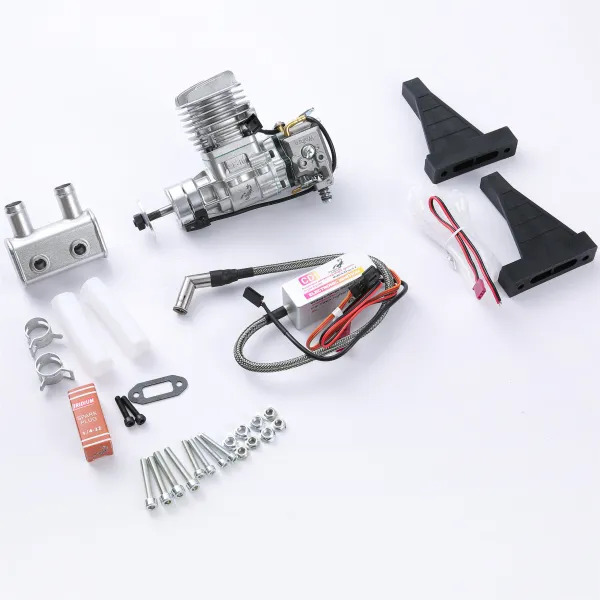

  11. RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight:

  1. Engine: 1.03 lb (468 g)
  2. Muffler: 1.4 oz (40 g)
  3. Ignition Module: 4.1 oz (115 g)
  4. Total: Weight: 1.37 lb (623 g)

Technical Data:

  1. Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
  2. Gasoline/Oil Mix: (recommended : 25:1 Break in, or 40:1 synthetic oil when run in) We reccomend DELUXE MATERIALS POWER MODEL 2T-S OIL POWER 2T-S
  3. Replacement Spark Plug: M8 1/4-32 or equivalent
  4. Idle Speed: 2000 rpm/min
SKU RCGF10RE
Barcode # 2000000034874
Brand RCGF STINGER
