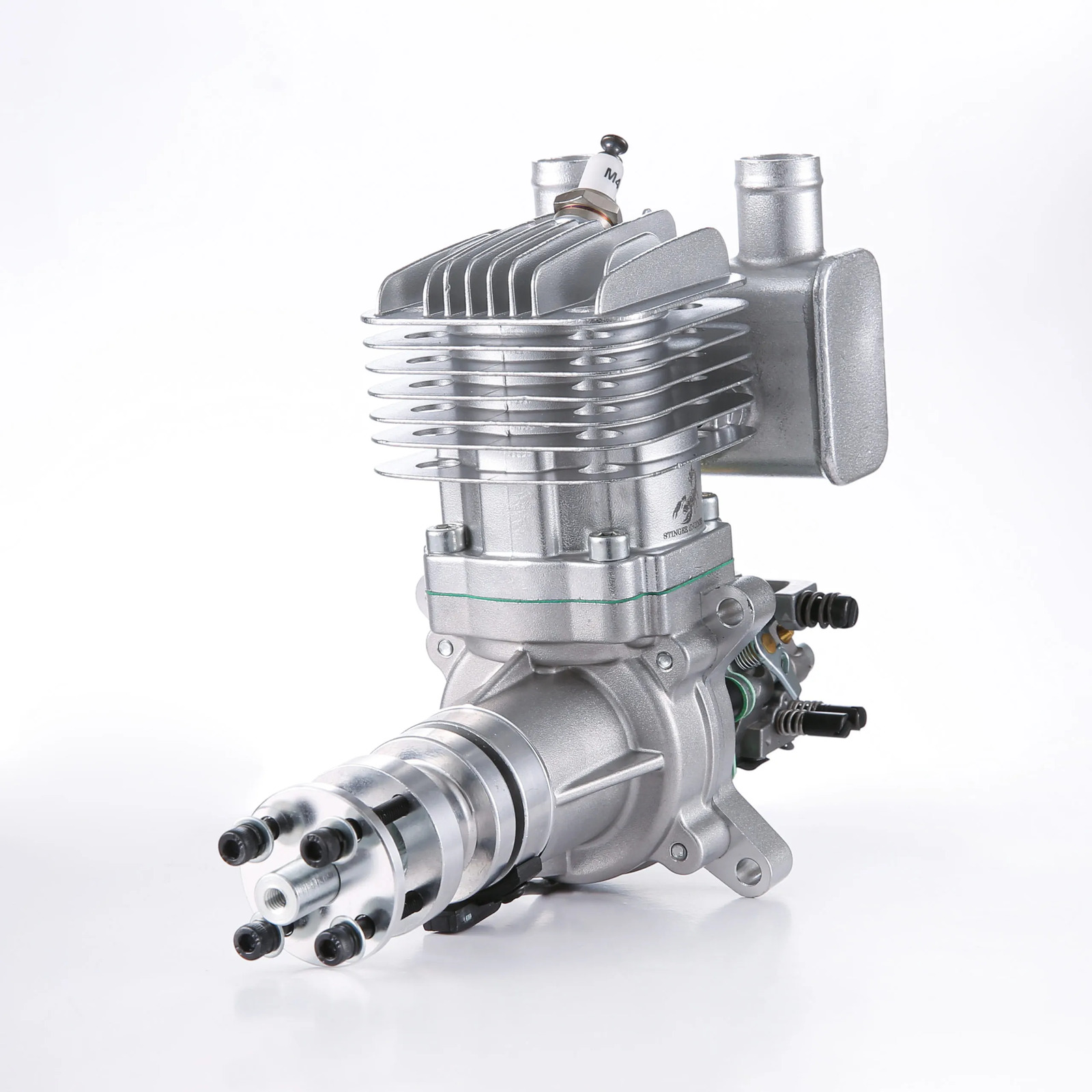

RCGF Stinger 35cc RE
Convenience and power for quarter scale!
With the New RCGF Stinger 35cc RE  you get the economy of a gasoline engine in the size of a glow engine.
Electronic ignition provides the spark for fast starting.
Timing automatically adjusts for peak power throughout the rpm range.
And a made-for-flight design ensures the best power-to-weight ratio for performance.

 Parameter

Type 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) 35cc (2.13 cu in)
Bore x Stroke (mm) 1.53 in (39mm)*1.18 in (30mm)
Recommended props 19X8,20X8,20X10
Maximum Output 4.1 hp @ 9000
Power supply 7V-14V
  • Carburetor : Walbro
  • Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
  • Requires: Gasoline, 2-cycle oil, ignition battery & propeller
  • speed rang : 1500-9000rpm
  • Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1
  • Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
  • Suggested Break-in Prop: 19×8
  • Sparking plug: NGK CM6 Type
  • Cooling System : Air Cooled

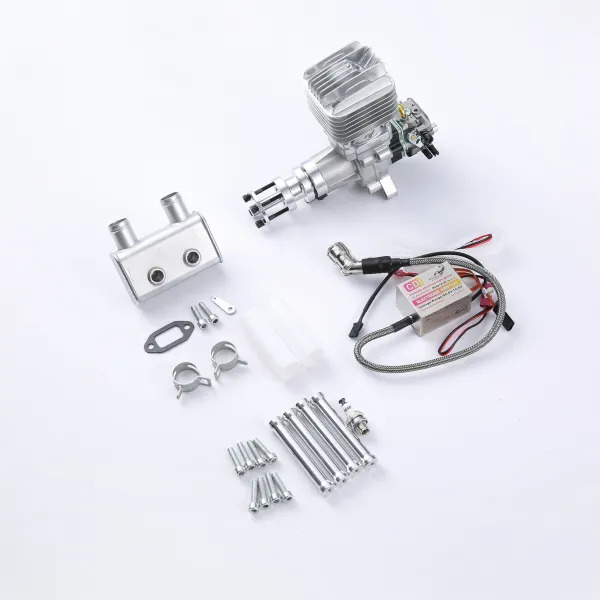

  • RCGF Stinger engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, stand off,throttle arm extension & manual.



Weight :

  1. Engine: 2.03 lb (923 g)
  2. Muffler: 3.4 oz (97 g)
  3. Ignition Module: 4.4 oz (125 g)
  4. Total: Weight: 2.52 lb (1145 g)



Technical Data:

  1. Ignition Battery: 7.4V-14V NiCd or NiMH, 7.4V LiFe or 2S LiPo pack
  2. Gasoline/Oil Mix: 30:1
  3. Replacement Spark Plug: NGK CM6 or equivalent
  4. Idle Speed: 1800 rpm/min
SKU RCGF35RE
Brand RCGF STINGER
