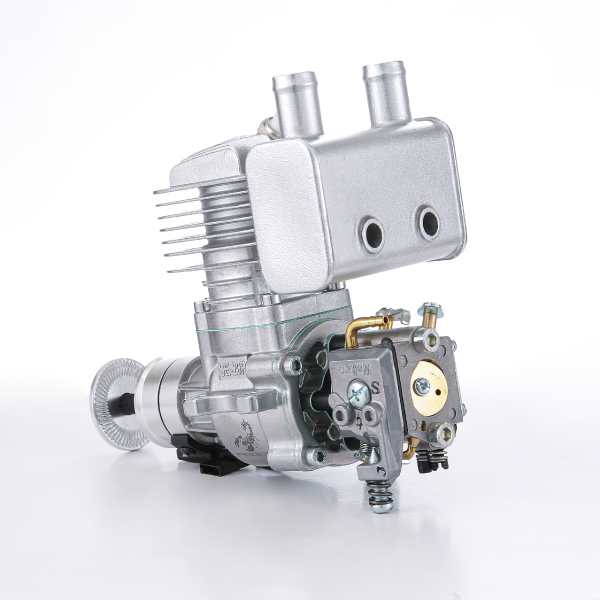

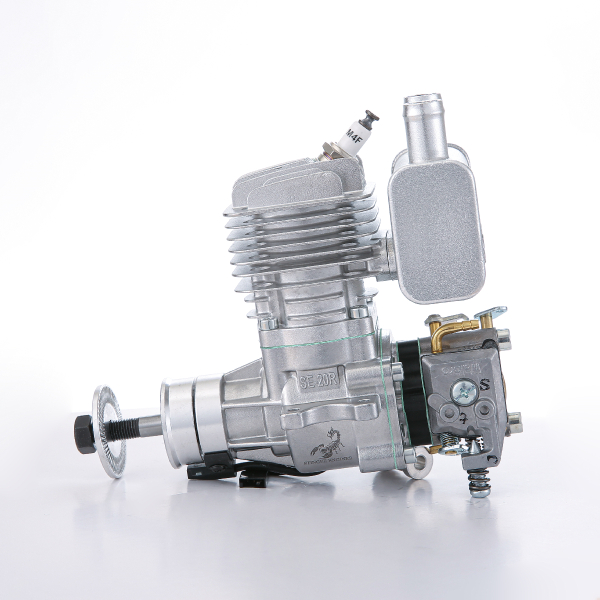

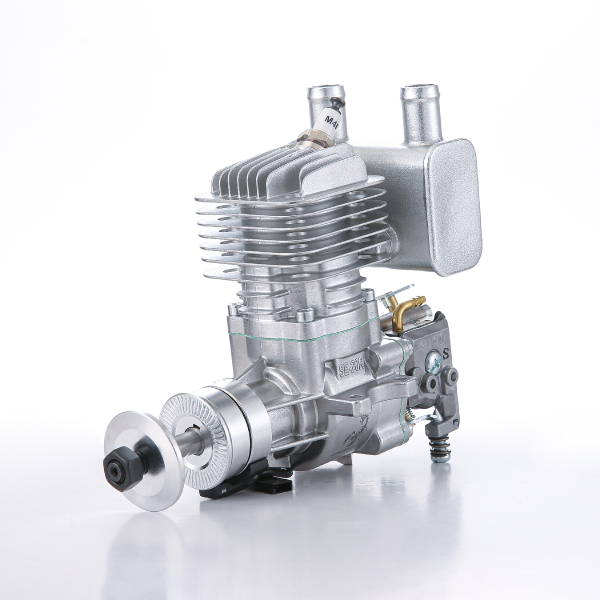

RCGF Stinger 20cc RE
Glow size:gasoline economy & ease!
Glow power isn’t the only option anymore. The NEW STINGER 20CC RE engine not only fills the displacement gap, but includes a beam mount to make the glow-to gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.
NEW STINGER 20cc RE is starting ease and top performance make the 20CC RE an attractive alternative to glow and a solid buy for value and performance.

 Parameter

Type 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) 20cc (1.22 cu in)
Bore x Stroke (mm) 1.3 in(32mm) x 9.5 in (24mm)
Recommended props 14×10, 15×8, 16×6, 16×8, 17×6
Maximum Output 2.8HP /2.1KW
Power supply 7.4V-14V
  1. Carburetor : Walbro
  2. Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
  3. SPARK PLUG: NGK-CM6 type
  4. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
  5. speed rang : 1500-10800rpm
  6. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 25:1 for Break in | 40:1 After run in)
  7. Lubrication Oil : DELUXE MATERIALS POWER MODEL 2T-S OIL POWER2T-S.
  8. Break in Propeller : 16X8 (Standard Two leafs prop)
  9. Cooling System : Air Cooled

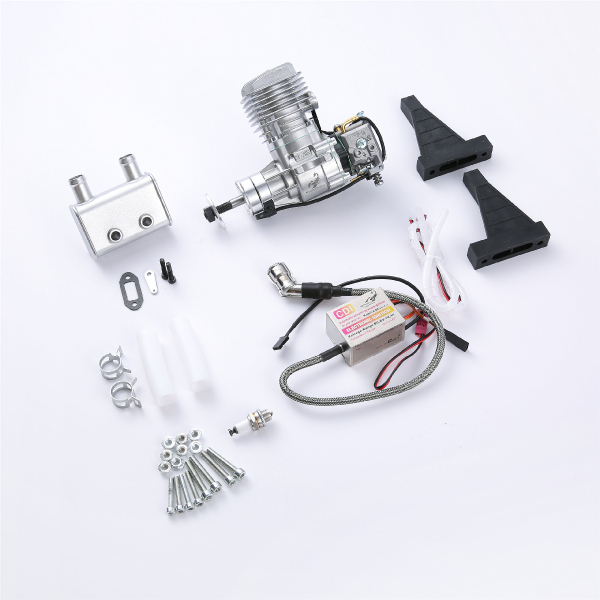

  10. RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight:

  1. Engine: 1.37 lb (620g)
  2. Muffler: 2.08 oz (59 g)
  3. Ignition Module: 4.4 oz (125 g)
  4. Total: Weight: 1.75 lb (795 g)

Technical Data:

  1. Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
  2. Gasoline/Oil Mix: (recommended : 25:1 Break in, or 40:1 synthetic oil when run in) We reccomend DELUXE MATERIALS POWER MODEL 2T-S OIL POWER 2T-S
  3. Replacement Spark Plug: NGK-CM6 or equivalent
  4. Idle Speed: 1800 rpm/min
SKU RCGF20RE
Barcode # 2000000032627
Brand RCGF STINGER
