RCGF Stinger 15cc SE
Glow size:economy and powerful
NEW ENGINE ,NEW Design,More powerful,Stronger material , More precision , More shining
Latest Design & Strong Power !
The NEW Stinger 15cc SE is the latest design engine.
The rear exhaust design make it fit more narrow airplanes especially the warbirds .
Strong Power give you unprecedented fly experience.

 Parameter

Type 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) 15cc (.91 cu in)
Bore x Stroke (mm) 1.3 in (32mm)*0.8 in (19.6mm)
Recommended props 13 x 6, 14 x6,13X8,15X8,15X6
Maximum Output 2.4 hp/1.76KW
Power supply 7.4V-14V
  1. Carburetor : Walbro
  2. Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
  3. SPARK PLUG: M8 1/4-32 or equivalent
  4. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
  5. speed rang : 1500-15000rpm
  6. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 25:1 for Break in | 40:1 After run in)
  7. Lubrication Oil : DELUXE MATERIALS POWER MODEL 2T-S OIL POWER2T-S.
  8. Break in Propeller : 15X6 (Standard Two leafs prop)
  9. Recommended Airplane: 60 size plane,50 size plane,40 size plane
  10. Cooling System : Air Cooled

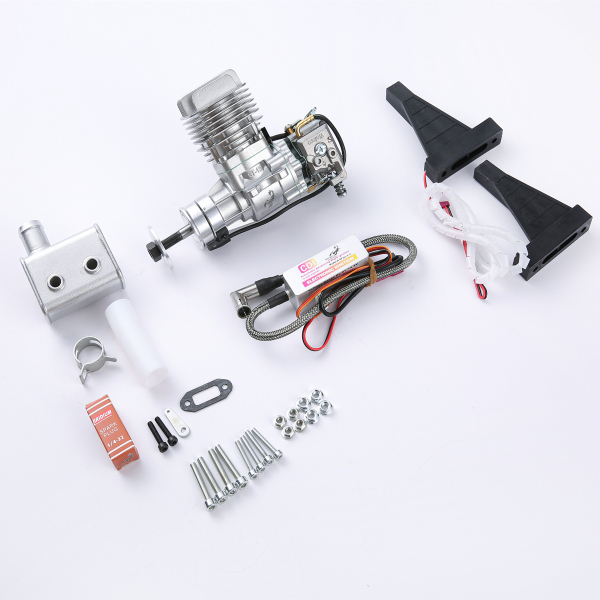

  11. RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight:

  1. Engine: 1.31 lb (594 g)
  2. Muffler: 1.8 oz (51 g)
  3. Ignition Module: 4.4 oz (125 g)
  4. Total: Weight: 1.69 lb (770 g)

Technical Data:

  1. Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
  2. Gasoline/Oil Mix: (recommended : 25:1 Break in, or 40:1 synthetic oil when run in) We reccomend DELUXE MATERIALS POWER MODEL 2T-S OIL POWER 2T-S
  3. Replacement Spark Plug: M8 1/4-32 or equivalent
  4. Idle Speed: 1800 rpm/min
SKU RCGF15SE
Barcode # 2000000034881
Brand RCGF STINGER
