It all started with a 1-2-3 sweep
In 2007, the RC10B44 swept the podium at the I.F.M.A.R. World Championships. Since then, Team Associated's first 1:10 scale 4WD buggy has held a dominant place at the front of the field. The B44 platform has gone on to win numerous National and International titles and added two more I.F.M.A.R. World Championships to its legacy in 2011 and 2013.

Speed, grip, and durability
Designed to take advantage of today's faster-than-ever tracks, the RC10B64D Team Kit offers increased durability, all new suspension geometry, a wider tuning window, improved weight distribution, and easy maintenance. Excelling on high-traction surfaces, the B64D's adjustable axle height and roll centers result in a stable yet nimble platform. With a new and improved center differential, the B64D rewards the driver with maximum drive out of all four wheels on dirt and clay surfaces.

This vehicle needs extra parts to make it operational.

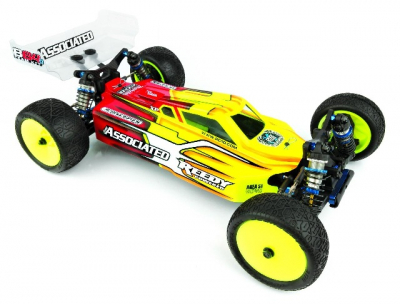

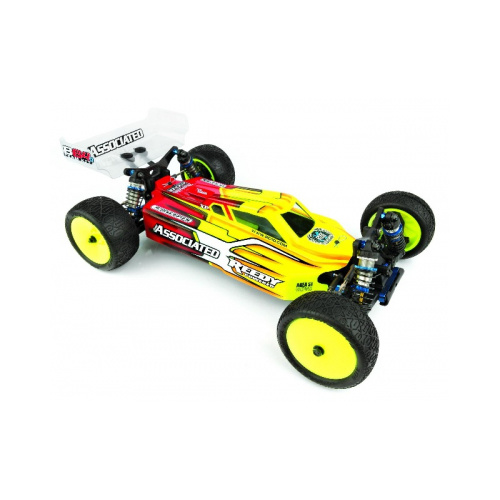

Prototype shown. Due to ongoing R&D, photos may not match final kit. RC10B64D Team Kit shown equipped with items NOT included in kit: Reedy motor, Reedy battery, Reedy ESC, Reedy servo, XP receiver, pinion gear, wheels, tires, and inserts. Body comes clear. Assembly and painting required.

Features

  • Robust suspension arms with multiple shock mounting positions
  • 7075 hard-anodized narrow aluminum chassis with lightweight plastic side guards
  • Aluminum floating motor mount allows consistent torsional chassis flex
  • Aluminum/carbon fiber floating servo mount offers a tweak-free assembly
  • Easy access to differentials allow quick tuning and maintenance
  • Front and rear anti-roll bars provide flat cornering
  • Center gear differential maximizes drive out of the corner
  • 12mm aluminum drive hexes in both front and rear
  • Stiff and lightweight 4mm thick carbon fiber shock towers
  • Fully adjustable aluminum front and rear suspension arm mounts
  • Precision-made aluminum caster blocks for added durability
  • B6 generation ball cups and turnbuckles for precise adjustments and durability
  • All metric hardware
  • V2 12mm big bore threaded aluminum shocks with TiN shock shafts
  • Option to mount rear shocks on either the front or rear of the rear suspension arms
  • Factory Team upgraded ball bearings
  • Team Associated clear body and screw-mounted wing by JConcepts
  • Factory Team Aluminum Shock Bushings provide a stable shock mount base

Vehicle Specifications

Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: varies
Width: varies
Wheelbase: 284mm (11.18in)
Weight: varies
Internal
Gear Ratio:
2.47:1
Drive: 4WD
* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

Required to Complete

  • RC 2-channel surface frequency radio system
  • Batteries: 2S, 7.4V LiPo Shorty battery pack
  • Battery charger (peak detection charger recommended)
  • Electronic speed control
  • RC electric motor
  • Pinion gear
  • Steering servo
  • 1:10 scale tires and inserts
  • 1:10 scale wheels
  • Recommended: tools, paint for polycarbonate body, glue for tires



SKU ASS90015
Barcode # 784695900158
Brand Team Associated
Shipping Weight 0.2000kg
