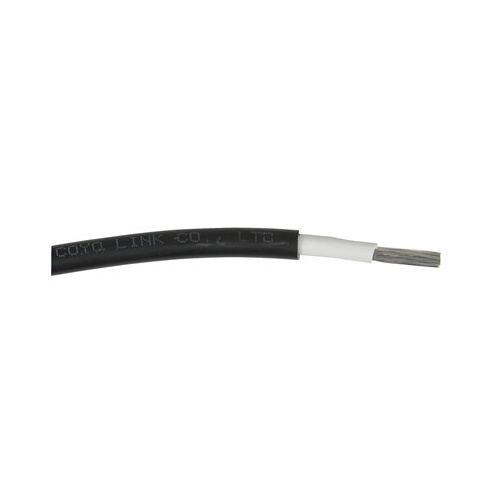

Very tough cable, specifically for the rigours of outdoor use in solar panel installations. Dust, age and UV resistant, tinned copper conductors to minimise corrosion. Use with our PV connectors for complete environmental protection.

2.5mm sq. Cat WH-3120
4mm sq. Cat WH-3121
6mm sq. Cat WH-3122

Specifications:
• Conductor material: Tin plate copper, Class 5
• Insulation material: XLPO
• Rated voltage: 1000VDC
• Rated current: 42A (2.5mm) ,58A (4mm) ,76A (6mm)
• Temperature range: -40 - 125°C
• TUV certification: 2 PfG 1161/01.06
• IP65 rated
• Sold per meter.

SKU AM-WH3121
Model # WH3121
Barcode # 9319236962596
