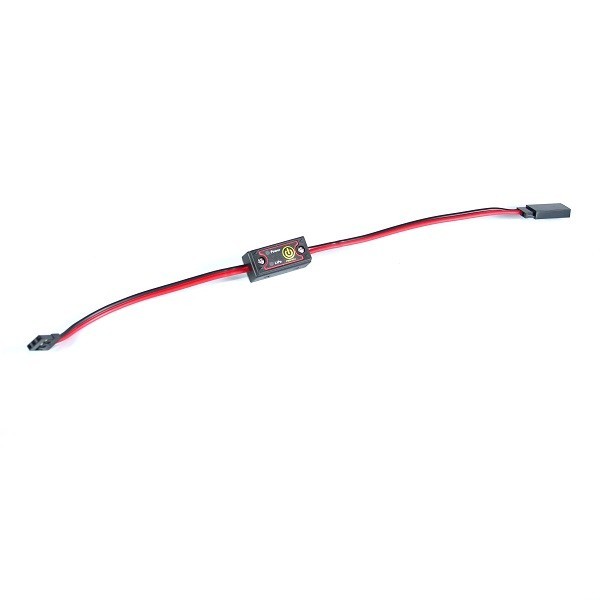

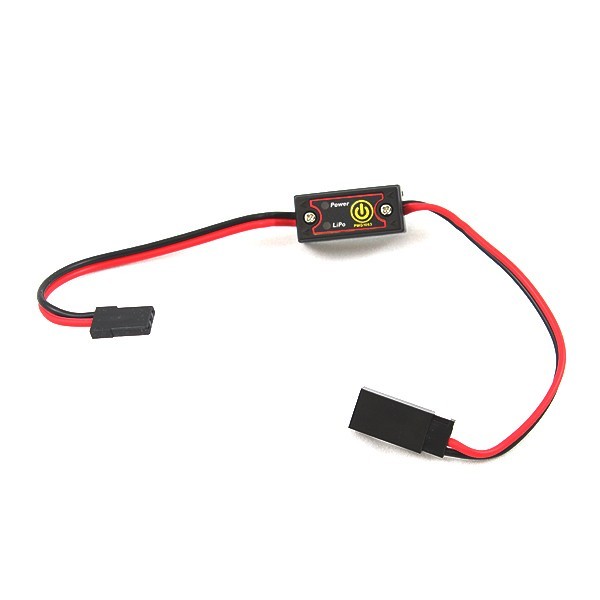

This electronic smart switch (PMQ1053) from Prime RC will suit RC planes and helicopters, or other models, where a traditional switch-mounting footprint is desired.

Operating Instructions:



For NiCD or NiMh battery packs:

The LED lights indicate the presence or power to your device as well as the status of your battery pack.



Press the start button for 1 second. The Power LED will illuminate indicating your device is "ON".

Power LED Green = >80% charged

Power LED Orange = 60-80% charged

Power LED Red = 20-60% charged

Power LED Flashing Red = <20% charged

To turn your device off, press and hold the start button until LED is no longer illuminated





For LiPo battery pack:

The LED lights indicate the presence or power to your device as well as the status of your battery pack.



Press start button for 3 seconds. Both Power LED and the LiPo LED will illuminate indicating your device is "ON".

Power LED Green = >80% charged

Power LED Orange = 60-80% charged

Power LED Red = 20-60% charged

Power LED Red Flashing = <20% charged

To turn your device off, press and hold the start button until the LED lights are no longer illuminated.



Input Voltage: 4-12Volts

Maximum Current: 10A

Battery Chemistry Options: NiCd, Nimh, LiPo



Please note the default chemistry is NiCd, however the unit remembers the last settings used. Therefore, there is no reason to verify battery chemistry settings each time unless changing battery types.



Attention: Although the Electronic Switch precisely monitors battery voltage it WILL NOT automatically cut off power to the model when battery voltage falls dangerously low. The blinking LED is the ONLY indication that the model requires recharging.



SKU PMQ1053
Barcode # PMQ1053
Shipping Weight 0.2000kg
