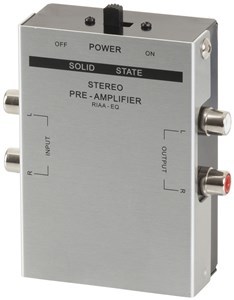

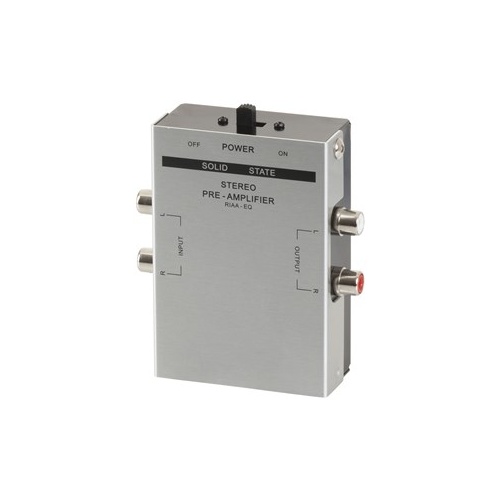

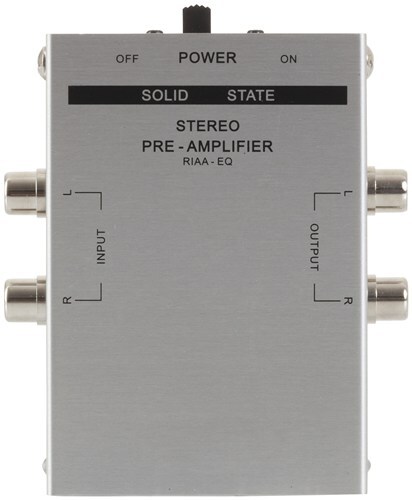

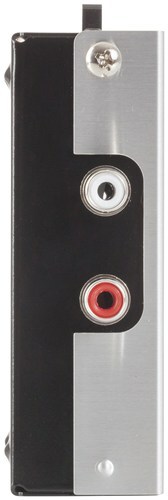

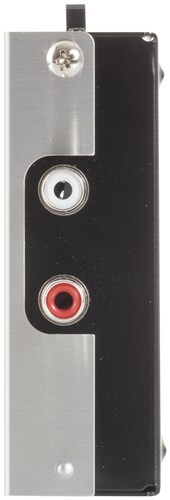

A simple 9V battery powered preamp to give audio sources a much needed boost before connecting them to speakers or an amplifier. It is useful for connecting products with magnetic pick-ups such as turntables to an amplifier. 2 RCA inputs and 2 RCA out. 1 x 9V battery required. Features RIAA equalisation circuit for accurate sound reproduction.


Specifications:
• Rated input level: 3mV
• Max input level: 38mV
• Input Impedance: 50K ohms at 1,000Hz
• Output Level: 1.8VRMS
• Output Impedance: 50K ohms
• S/N ratio: 50dB
• Dimensions: 72(W) x 91(L) x 28(D)mm

SKU AM-AC1649
Model # AC1649
Barcode # 9319236992807
