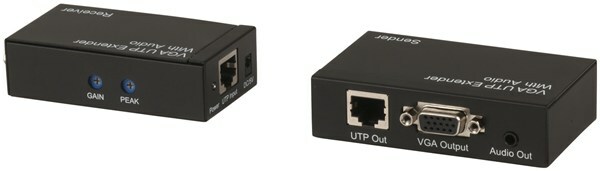

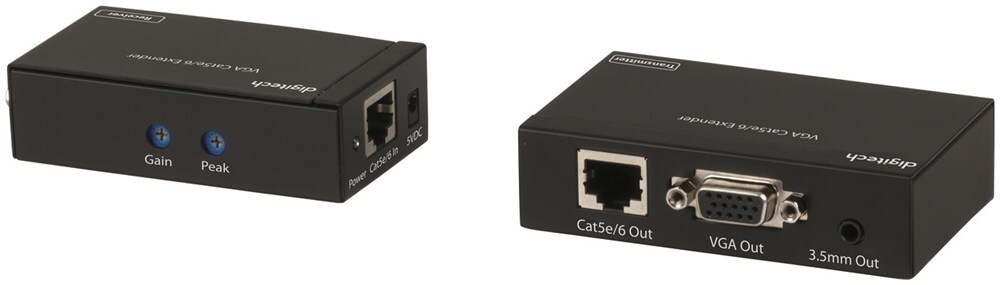

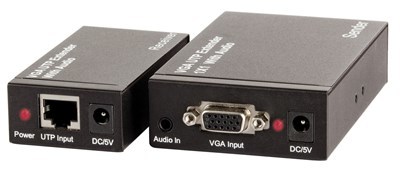

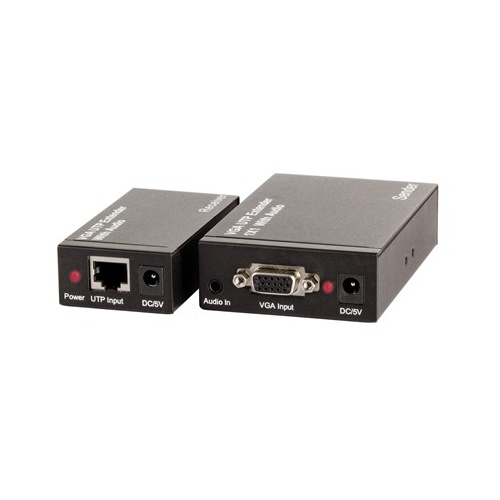

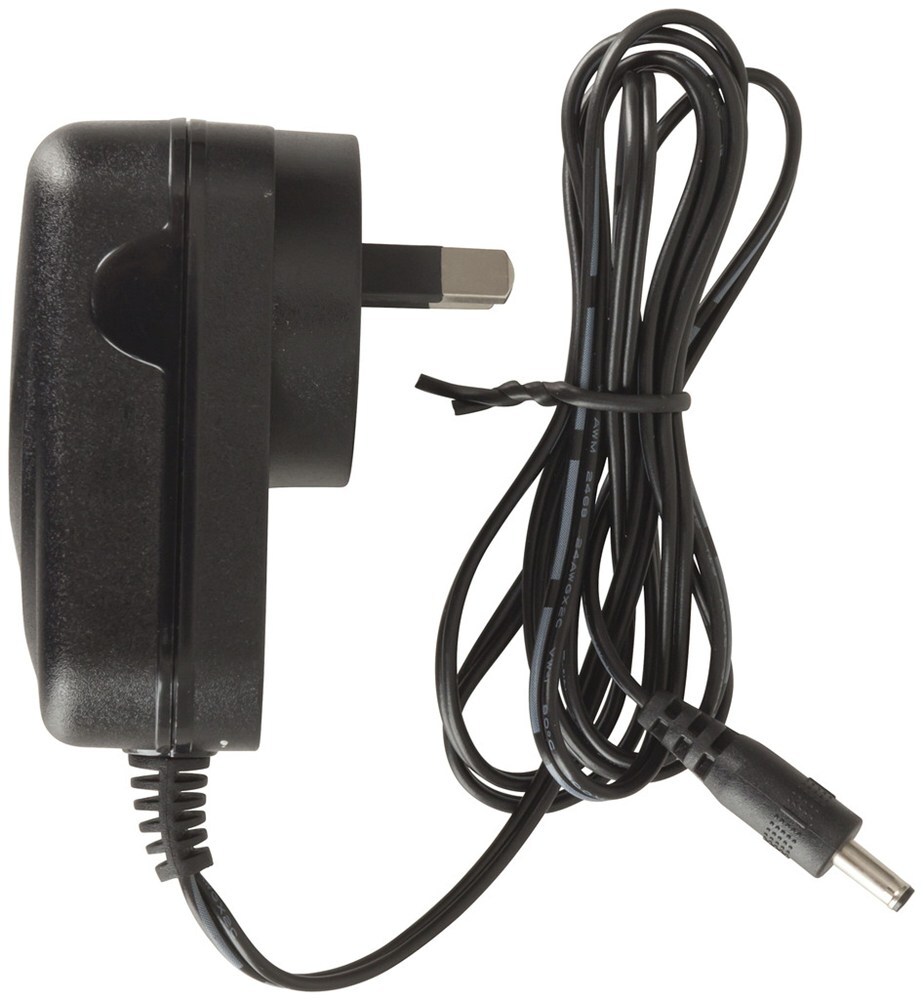

Able to transmit VGA and audio signals across a standard UTP or STP Cat-5 cable for distances up to 300 metres. Adjust the brightness and skew of the image with the peak and gain options. Use for home or commercial applications, for example, classrooms, lecture halls, auditoriums, retail kiosks, video information displays, tradeshows, etc. Ideal for VGA monitors or LCD projection screens. Supports up to 1920 x 1200 pixels. Supplied as a sender and receiver pair with plugpacks included.

Specifications:
• Power requirements: 5VDC for both sender and receiver
• Sender Dimensions: 100(L) x 65(W) x 26(H)mm
• Receiver Dimensions: 81(L) x 43(W) x 23(H)mm
• Vertical frequency range: 60/75/85Hz
• Supported resolutions: 640X480, 800X600, 1024X768, 1280X720, 1280X768, 1280X960, 1280X1024, 1600X900, 1600X1200, 1920X1080, 1920X1200
• Includes 2 x right angle mounting brackets for send unit
SKU AM-AC1671
Model # AC1671
Barcode # 9319236970645
