The Power 160 is designed to deliver clean and quiet power equivalent to or surpassing the power of a 160-size 2-stroke glow engine for sport and scale airplanes weighing 12 to 20 pounds (5.4 to 9 kg), 3D airplanes up to 15 pounds (6.8 kg), or models requiring up to 2700 watts of power.

It provides excellent power for the popular 27% scale aerobatic models such as the Hangar 9 Extra 260, scale performance for the Hangar 9 P-47D Thunderbolt 150 ARF, and extreme performance for models like the famous Ultra Stick Lite.

  • Equivalent to or surpassing the power of a 160-size, 2-stroke, glow engine for 12–20 lb (5.4–9 kg) airplanes
  • Ideal for 3D airplanes up to 15 lb (6.8 kg)
  • High-torque alternative to inrunner brushless motors

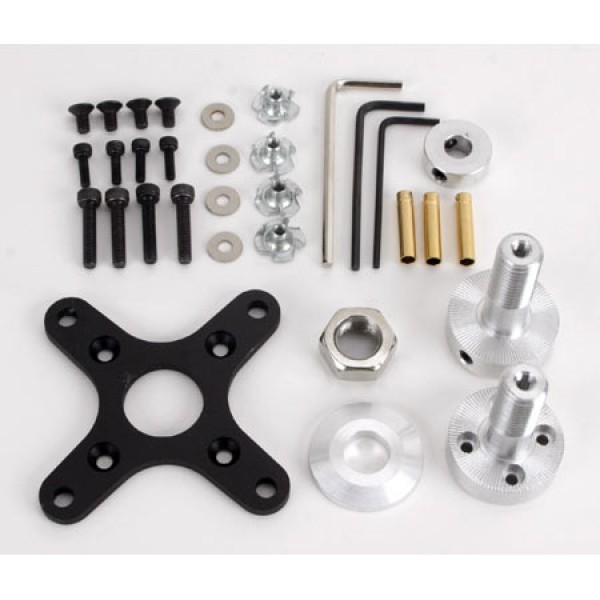

  • Includes mount and mounting hardware
  • External rotor design for better cooling
  • High-quality construction with ball bearings and hardened 8mm steel shaft
  • Includes two 12mm prop shaft adapters tapped out for 10–32 threads
  • Ideal for models requiring up to 2700 watts of power
  • Slotted 14-pole outrunner design
Type
Brushless outrunner
Size
Equivalent to or surpassing the power of a 160-size 2-stroke glow engine
Bearings or Bushings
One 8 x 19 x 6mm Bearing, and Two 8 x 16 x 5 Bearings
Wire Gauge
13
Recommended Prop Range
18x8 to 20x10
Voltage
33.3–38.4
RPM/Volt (Kv)
245
Resistance (Ri)
.03 ohms
Idle Current (Io)
1.45A @ 10V
Continuous Current
60A
Maximum Burst Current
78A (15 sec)
Cells
28–32 Ni-MH/Ni-Cd or 9S–10S Li-Po
Speed Control
75–110A High Voltage Brushless
Weight
650 g (23.0 oz)
Overall Diameter
63mm (2.50 in)
Shaft Diameter
8mm (.30 in) (Includes two 12mm threaded prop shaft adapters with 1.5 pitch)
Overall Length
64mm (2.50 in)
SKU EFLM4160A
Barcode # 605482355183
Brand E-Flite
Shipping Weight 2.0000kg
