High-performance 32-bit processor with a running frequency of 72MHz
combined with advanced algorithm optimizes the speed governing.
Together with the adjustable governor parameters guarantees every
pilot a precise control experience



High Voltage Built-in BEC

The built-in switch mode BEC with an adjustable voltage (6V/7.4V for the Platinum
25A V4, 5V~8V with the step of 0.1V for the Platinum 40A V4), a continuous current
of over 3A/7A (3A for the Platinum 25A V4, 7A for the Platinum 40A V4) and a peak
current of 7A/18A (7A for the Platinum 25A V4, 18A for the Platinum 40A V4) can
supply enough power for your servos to operate efficiently.



DEO Technology

The DEO (Driving Efficiency Optimization, or so called "Active Freewheeling")
technology implemented in the ESC has multiple advantages.
● Quicker response to the throttle change.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation.



Reverse Brake

With the Reverse Brake mode enabled when landing can effectively
shorten the sliding distance of the fixed-wing aircraft to simulate the
landing of a real aircraft (within a super short distance). The Normal
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
also available; the brake amount is adjustable in normal brake mode
while in proportional brake mode, the brake force will be automatically
allotted on the basis of the position of radio throttle stick.



Multiple Protections

Multiple protection features include, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle signal loss
(or Fail Safe), and low voltage cutoff effectively
prolongs the service life of the ESC.



Other Features

A separate programming port for connecting the programmer on this ESC allows user to
● Program ESC,
● check flight data include minimum voltage, maximum temperature, standardized RPM
and speed curve (in Heli Governing Store mode) of the flight data recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD program box or a Wi-Fi Module & our
Apple/Android phone App.

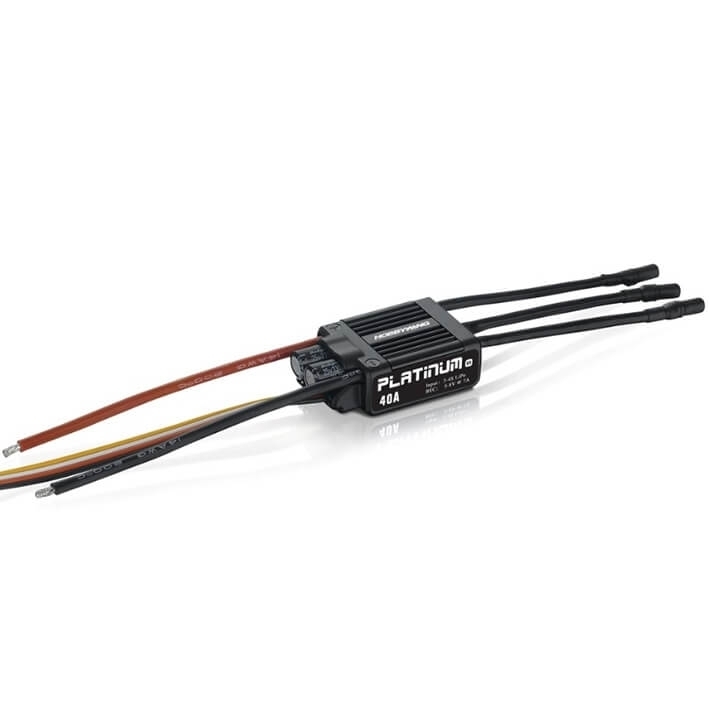

Product Specification


Type

  • Brushed/Brushless : BL
  • High Voltage/Regular : Regular



Specifications

  • Cont./Peak Current : 25A/40A
  • Input : 3-6S Lipo
  • BEC Output : Switch Mode:6V/7.4V,3A



Wires & Connectors

  • Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
  • Output Wires : Black-18AWG-100mm*3
  • Input Connectors : No
  • Output Connecotors : 3.5mmGold Connectors (Female)



ESC Programing via

  • Transmitter : Not Supported
  • LED Program Card : Not Supported
  • LED Program Box : Not Supported
  • LCD Program Box : Supported
  • WiFi Module : Supported
  • Program Port : Separate Program Port

Firmware

  • Firmware Upgrade : Supported

Size & Weight

  • Size : 47x22x10mm
  • Weight : 27g

(HW30215001)

SKU HW30215001
Barcode # 6938994402767
Brand HOBBYWING
Shipping Weight 0.0200kg
