Pheonix Model's P47 Thunderbolt RC Plane

The Republic P-47 Thunderbolt was the largest, heaviest, and most expensive fighter aircraft in history to be powered by a single piston engine. It was heavily armed with eight .50-caliber machine guns, four per wing. When fully loaded, the P-47 weighed up to eight tons, and in the fighter-bomber, ground-attack roles could carry five-inch rockets or a significant bomb load of 2,500 pounds; over half the weight the B-17 bomber could carry on long-range missions.

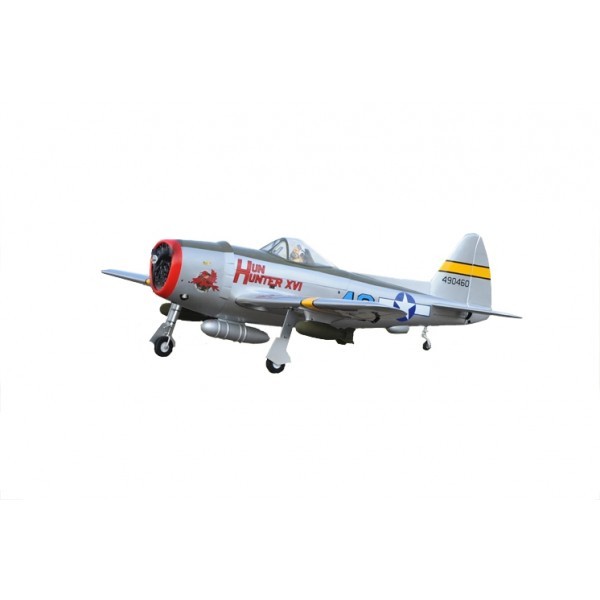

Phoenix Model’s P-47 Thunderbolt ARF is a remarkably accurate rendition of America’s favourite fighter airplane. This 33cc-sized almost-ready-to-fly airplane was designed and crafted to be the most realistic sport-scale ARF on the market. 3-D computer engineering produces parts that fit with absolute precision for straight, strong assembly. Slotted flaps provide function as well as scale appearance, concealing the control horns internally to maintain scale lines. Phoenix Model has thought of just about everything to make set up convenient, including a removable, and large top hatch for battery packs or radio equipment.

  • Official licensed product
  • Designed for compatibility with both GP and EP flight
  • Covered in Oracover
  • Top quality balsa/light plywood construction
  • Air-retract With CNC Suspension Metal Struts included
  • Full depth cockpit and instrument panel and pilot included
  • Bolt on two piece wing for easy transport and setup at the field
  • Removable canopy for easy change lipo battery and set up radio
  • Strong Light Weight Construction
  • Superb flying characteristics, plus an accurate scale outline
  • High-quality hardware package included
Wingspan
2005mm (78.9 in)
Length
1640mm (64.5 in)
Flying weight
8-10 kg
Wing area
66 dm2
Wing loading
120g/dm2
Wing type
Naca airfoils
Covering type
Genuine ORACOVER®
Retract gear type
Air-retract 90 degree With CNC Suspension Metal Struts (included)
Spinner size
Scale type (not included)
Pressure for air tank retract
7 bar (100 PSI)
Radio
8 channel radio system minimum. 9 standard hi-torque servo2 aileron; 2 flap; 2 elevator; 1 rudder; 1 throttle; 1 air valve (not included)
Engine
30-35cc (gas engine) (not included)
Motor
brushless outrunner 2500 W, 250 KV (not included)
Recommended receiver battery
6.0V 2400/2600mAh NiMH (not included)
Propeller
suit with your engine
Gravity CG
120 mm (4.7 in) Back from the leading edge of the wing, at the fuselage
Control throw Ailerons
Low15mm up/down, 10% expo; High20mm up/down, 10% expo
Control throw Elevators
Low15mm up/down, 12% expo; High20mm up/down, 12% expo
Control throw Rudder
Low30mm right/left, 15% expo; High45mm right/left, 15% expo
Control throw Flaps
Mid15mm down; Landing25mm down
Experience level
Intermediate
Plane type
scale military
RECOMMENDED MOTOR AND BATTERY SET UP

Motor
RIMFIRE 1.60 (not included)
Lipo cell
12 cells / 5000 – 6000mAh (not included)
Esc
120-160A (not included)
SKU PHN-PH141
Brand Phoenix Model
