Overview
The Edge 540 is the most common aircraft used in the Red Bull Air race World Series , in fact all champions of the World Series have flown this aircraft.
Features
Capable of both precise and extreme 3D aerobatics
Designed for compatibility with both GP and EP flight
Bolt on two piece wing for easy transport and setup at the field
Removable canopy for easy change lipo battery and set up radio
Extremely lightweight laser cut all wood construction
Durable factory painted fiberglass cowl

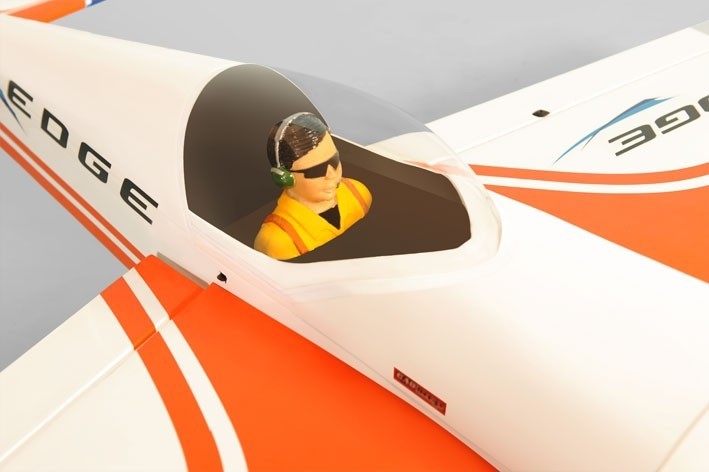

Prepainted pilot figure, preinstalled in cockpit
All hardware included

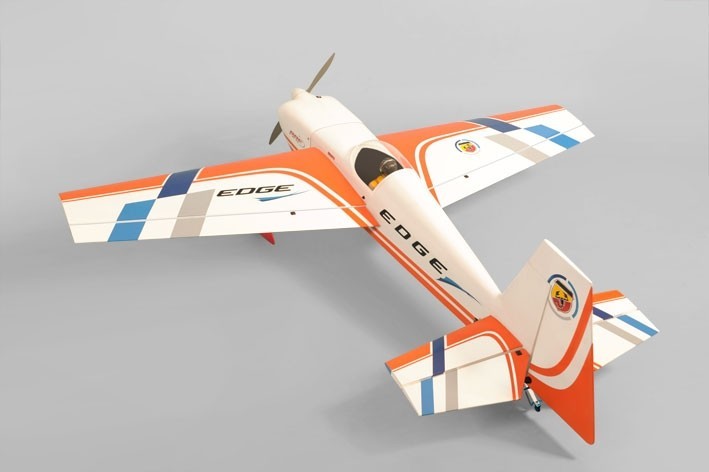

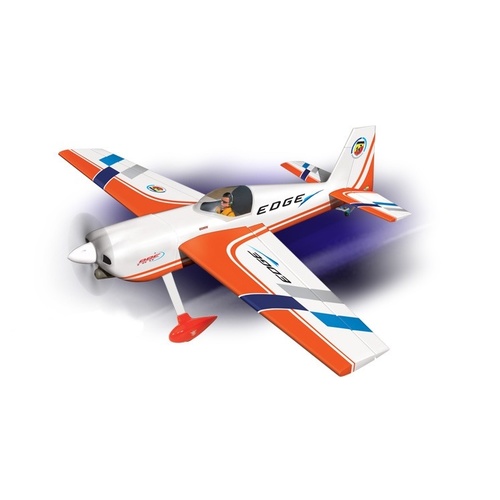

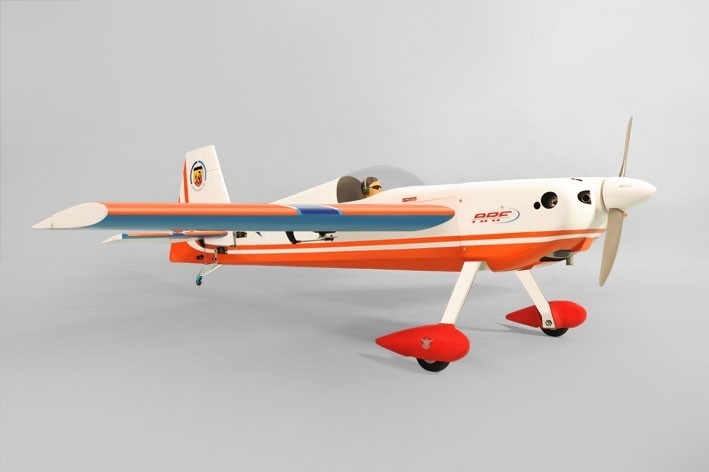

Phoenix’s Edge 540 is naturally slower but is engineered to perform equally thrilling manoeuvres! This scale-like model able to perform flat spin, knife edge and many other difficult aerobatics. The Edge 540 is expertly handcrafted from balsa and plywood using only epoxy and CA glues. You can fly this plane after few hours of installation. All the hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to separately purchase the nitro engine and radio system.Phoenix Model Edge RC Plane, 20cc ARF

Wingspan
1651mm (65 in)
Length
1573mm (62 in)
Flying weight
4700-5200 gr
Wing area
54.4 dm2
Wing loading
86g/dm2
Wing type
Naca airfoils
Gear type
Aluminum Hi-grade for main gear and spring wire for tail gear (included)
Spinner size
Plastic 70mm (included)
Radio
4 channel minimum (not included)
Servo
6 standard hitorque servo2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
Recommended receiver battery
4.8-6V / 1200-2000mAh NiMH (not included)
Servo mount
21mm x 42 mm
Propeller
suit with your engine
Engine
.120 / 2-stroke or .120/4-stroke glow engine (not included)
Motor
brushless outrunner 2000-2400 W, 450 KV (not included)
Experience level
Intermediate
Plane type
Scale Aerobatic
RECOMMENDED MOTOR AND BATTERY SET UP

Motor
RIMFIRE .120 (not included)
Lipo cell
6-12 cells / 4000 – 5500mAh (not included)
Esc
80-100A (not included)
Brand
Phoenix Models
SKU PHN-PH093
Brand Phoenix Model
