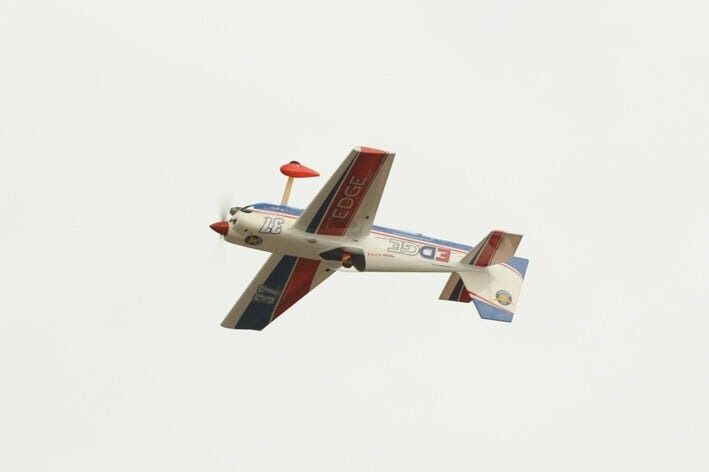

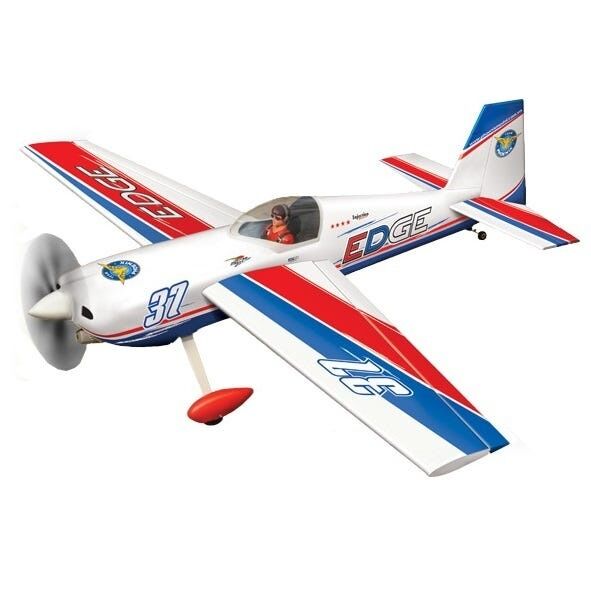

The Edge 540 is the most common aircraft used in the Red Bull Air Race World Series, in fact, all champions of the World Series have flown this aircraft.

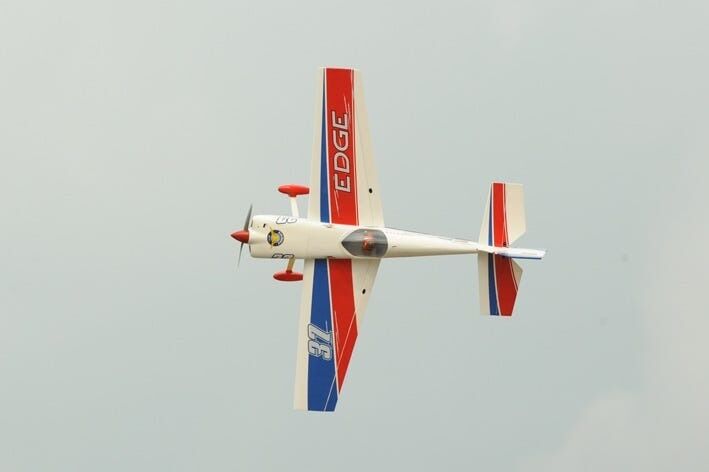

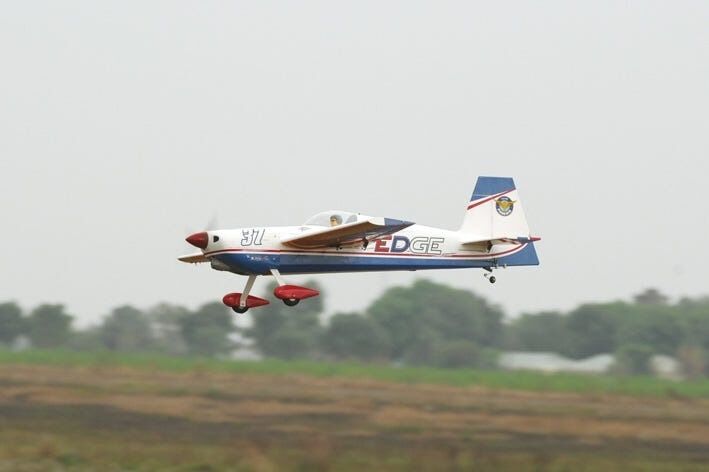

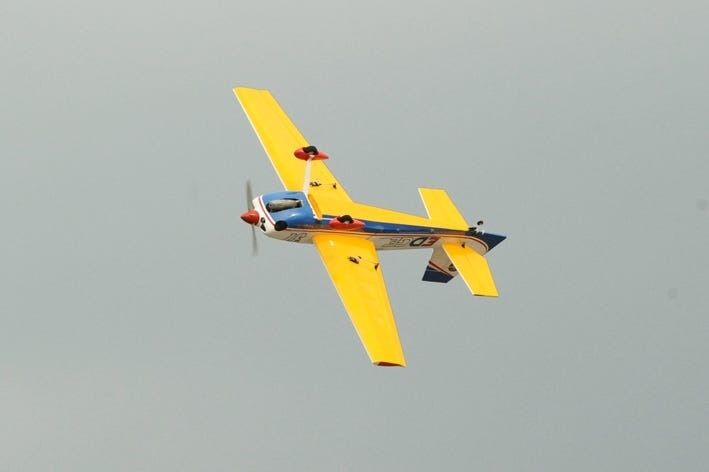

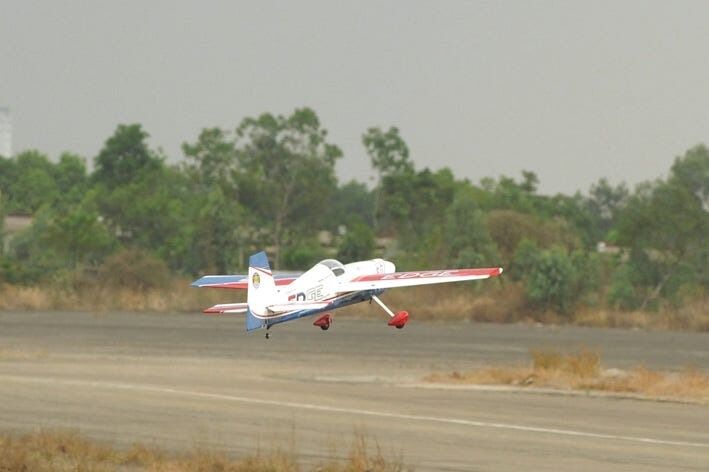

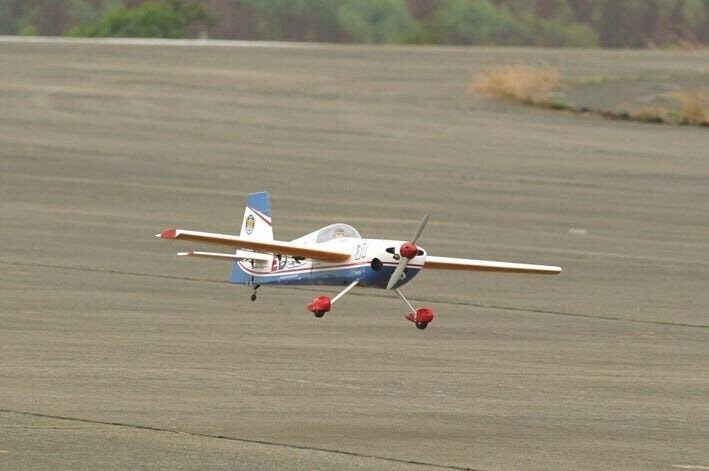

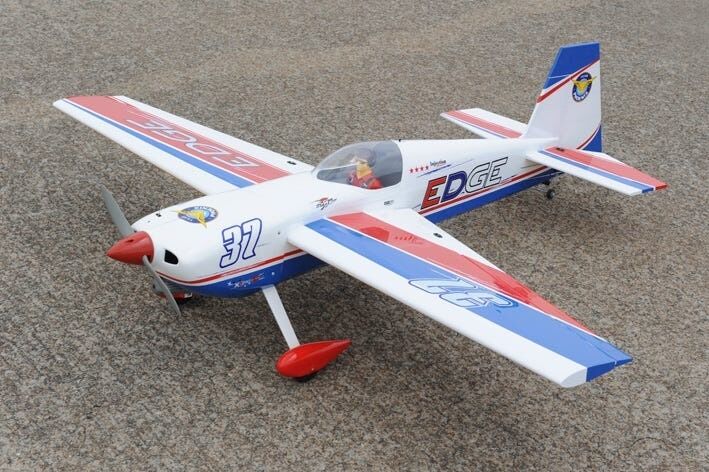

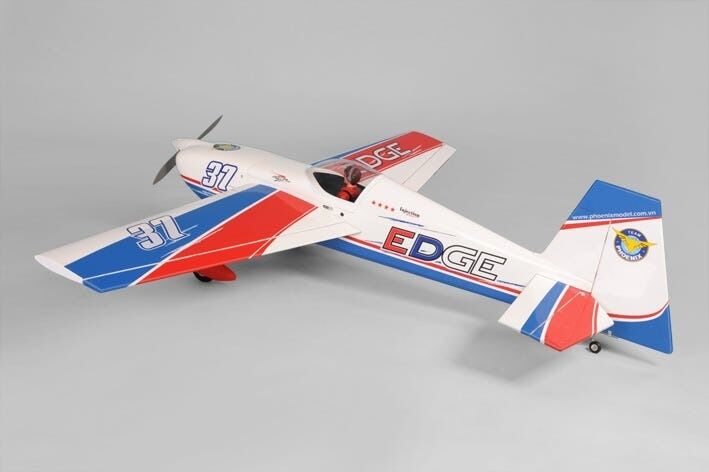

Phoenix’s Edge 540 is naturally slower but is engineered to perform equally thrilling manoeuvres! The scale-like model is able to perform flat spin, knife edge and much other difficult aerobatics. The Edge 540 is expertly handcrafted from balsa and plywood using the only epoxy and CA glues. You can fly this plane after few hours of installation. All the hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to separately purchase the nitro engine and radio system.

  • Designed for compatibility with both GP and EP flight
  • Covered in genuine ORACOVER®
  • Bolt on two piece wing for easy transport and setup at the field
  • Removable canopy for easy change lipo battery and set up radio
  • Strong Light Weight Construction

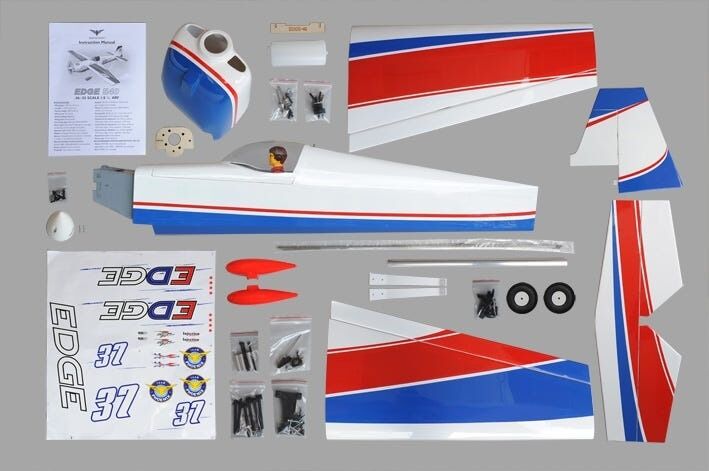

  • High quality hardware package included
Wingspan
1407mm (55.3 in)
Length
1353mm (53.2 in)
Flying weight
2800-3200 gr
Wing area
35.3 dm2
Wing loading
80g/dm2
Wing type
Naca airfoils
Covering type
Genuine ORACOVER®
Gear type
Aluminum Hi-grade for main gear and spring wire for tail gear (included)
Spinner size
Plastic 58mm (included)
Radio
4 channel minimum (not included)
Servo
5 standard servo2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
Recommended receiver battery
4.8-6V / 800-1200mAh NiMH (not included)
Servo mount
21mm x 42 mm
Propeller
suit with your engine
Engine
.46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
Motor
brushless outrunner 1000-1400 W, 480 KV (not included)
Experience level
Intermediate
Plane type
Scale Aerobatic
RECOMMENDED MOTOR AND BATTERY SET UP

Motor
RIMFIRE .46-.55 (not included)
Lipo cell
6 cells / 4000 – 5500mAh (not included)
Esc
50-80A (not included)
SKU PHN-PH092
Brand Phoenix Model
