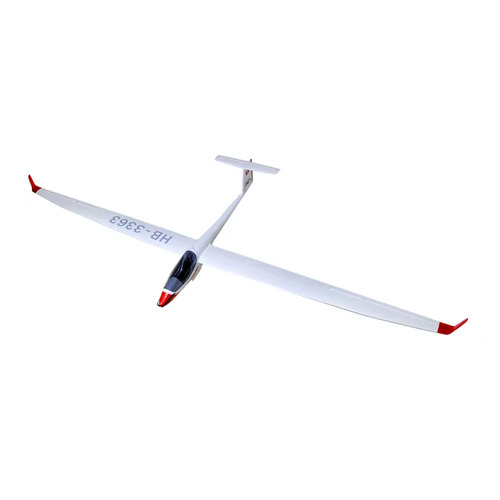

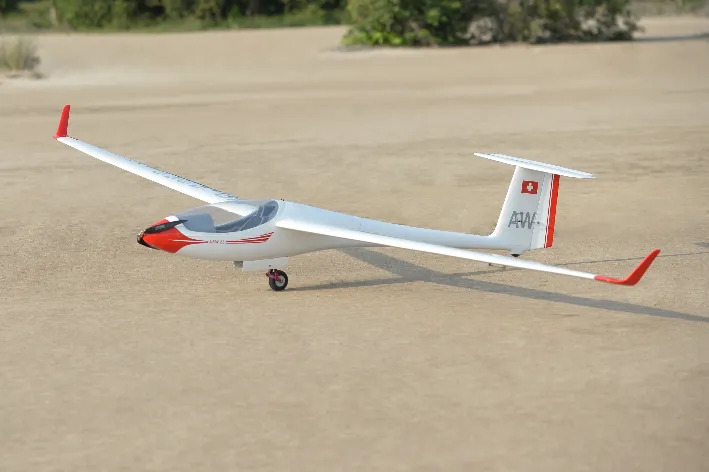

Phoenix Model ASW 28 Electric 5.5m Glider, ARF

Features

  • Fuselage with 02 pieces
  • Wing with 02 pieces
  • Composite material is super strong and lightweight
  • True-to-scale artwork
  • High-quality hardware package included

Product Information

The Phoenix ASW 28 is a scale replica of the Schleicher 15 metre standard class original. It is primarily a balsa and ply model with strategic use of composite materials. At 5.5 metre span it will have real presence in the sky. The design allows for the use of 4 standard size servos, and the option to fit an electric motor in the nose, electric spoilers and an electric retractable undercarriage. It is supplied as a 2 piece fuselage that simply bolts together, 4 piece wing and a removeable tailplane. It is covered with Ultracote in a scale Swiss colour scheme.

We recommend the following optional parts to get the very best from the Phoenix ASW 28

Motor: Dualsky XM5060EGL-12 400kv Brushless Glider Motor DSXM52070

Electronic Speed Control: Spektrum Avian 100A Brushless Smart ESC SPMXAE1100

Battery: Prime RC 6S5200 LiPO PMQB52006S

Spoilers: 1 pair electric spoilers 440mm EFL491009

Retract unit: Main Retract suit GL09-ASW 28  PHN-R5248

Retract Control Unit: Phoenix Model Electric Retract Controller, R5202/R5206, suit Phoenix electric retracts  PHN-R5206



What you need

  • 4+ channel radio
  • 4 standard hi-torque servos (2x aileron, 1x elevator, 1x rudder)
  • Brushless outrunner 1800-2000 W motor
  • 6S - 8S LiPo battery
  • 100A ESC

Specs

Wingspan:
5500mm (216.53 in) 36% scale
Length:
2236mm (88.03 in)
Flying weight:
9850gr – 10050gr
Wing area:
111 dm2
Wing Section:
HQ - Wortmann airfoils
Radio:
4 channel minimum (not included) 
Servo:
4 standard hi-torque servo: 2 aileron; 1 elevator; 1 rudder (not included) 
Spoilers:
2 electric spoilers 440mm (not included) EFL491009
Motor:
brushless outrunner 1800-2000 W (not included)
Retract optional:
Main Retract GL09-ASW 28 Electric 5500 PHN-R5248 (not included) 
Experience level:
Intermediate
Plane type:
Glider 
SKU PHN-GL09
Brand PHOENIX MODEL
