PHOENIX A-26 INVADER FOR .46 - .55 ENGINES 2300mm PH170
A26 INVADER GP/EP Size .46-.55 Scale 1:9 ¼ ARF
Specifications
- Wingspan: 2300mm (90.5 in)
- Length: 1664mm (65.5 in)
- Flying weight: 8300g-8700g
- Wing area: 61.4 dm2
- Wing loading: 135g/dm2
- Wing type: Naca airfoils
- Retract gear type: Air-retract With CNC Suspension Metal Struts (included)
- Spinner size: Scale type (not included)
- Radio: 8 channel minimum (not included)
- Servo: 9 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 2 throttle; 1 control air valve (not included)
- Recommended receiver battery: 6.0V 2400/2600mAh NiMH (2) (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 2 X .46-.55 Glow engine (two stroke) (not included)
- Motor: brushless outrunner 1000-1400 W, 480 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Warbird
- Gravity CG: 100 mm (3.9 in) Back from the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 9mm up/down, 10% expo; High: 12mm up/down, 10% expo
- Control throw Elevators: Low: 11mm up/down, 12% expo; High: 14mm up/down, 12% expo
- Control throw Rudder: Low: 20mm right/left, 15% expo; High: 35mm right/left, 15% expo
- Control throw Flaps: Mid: 10mm down; Landing: 15mm down
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: 2 X RIMFIRE .46-.55 (not included)
- Lipo cell: 2 X 6 cells / 4500 – 5500mAh (not included)
- Esc: 2 X 60A (not included)
Features
- Covered in genuine ORACOVER®
- Superb flying characteristics, plus an accurate scale outline
- Functional panel flaps

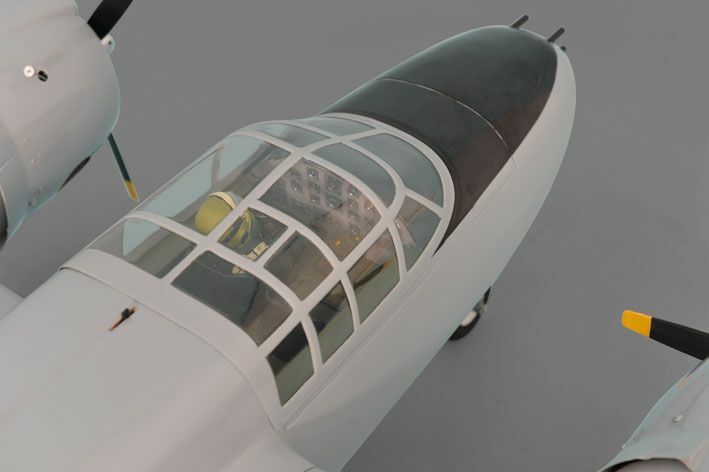

- Canopy with full scale details Cockpit (included)
- Scale Pilot figure (included)
- Heavy Duty Air Retract With CNC Suspension Metal Struts (included)
- Air Valve system with air horse and air one way valve (included)
- Quick-connector air horse (included)
- Two-pieces Wing - Making assembly and transport super convenient
- Designed for compatibility with both GP and EP flight
- High-quality hardware package included
- Covered in genuine ORACOVER®
- Superb flying characteristics, plus an accurate scale outline
- Functional panel flaps
- Canopy with full scale details Cockpit (included)
- Scale Pilot figure (included)
- Heavy Duty Air Retract With CNC Suspension Metal Struts (included)
- Air Valve system with air horse and air one way valve (included)
- Quickconnector air horse (included)
- Twopieces Wing Making assembly and transport super convenient
- Designed for compatibility with both GP and EP flight
- Highquality hardware package included
- Wingspan
- 2300mm (90.5 in)
- Length
- 1664mm (65.5 in)
- Flying weight
- 7000g-8000g
- Wing area
- 61.4 dm2
- Wing loading
- 105g/dm2
- Wing type
- Naca airfoils
- Retract gear type
- Air-retract With CNC Suspension Metal Struts (included)
- Spinner size
- Scale type (not included)
- Radio
- 8 channel minimum (not included)
- Servo
- 9 standard servo2 aileron; 2 flap; 1 elevator; 1 rudder; 2 throttle; 1 control air valve (not included)
- Recommended receiver battery
- 6.0V 2400/2600mAh NiMH (2) (not included)
- Servo mount
- 21mm x 42 mm
- Propeller
- suit with your engine
- Engine
- 2 X .46-.55 Glow engine (two stroke) (not included)
- Motor
- brushless outrunner 850 W, 800 KV (not included)
- Experience level
- Intermediate
- Plane type
- Scale Warbird
SKU | PHN-PH170 |
Brand | Phoenix Model |
Shipping Weight | 5.0000kg |
