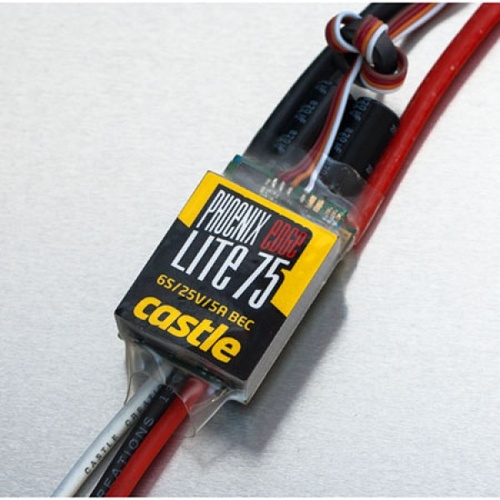

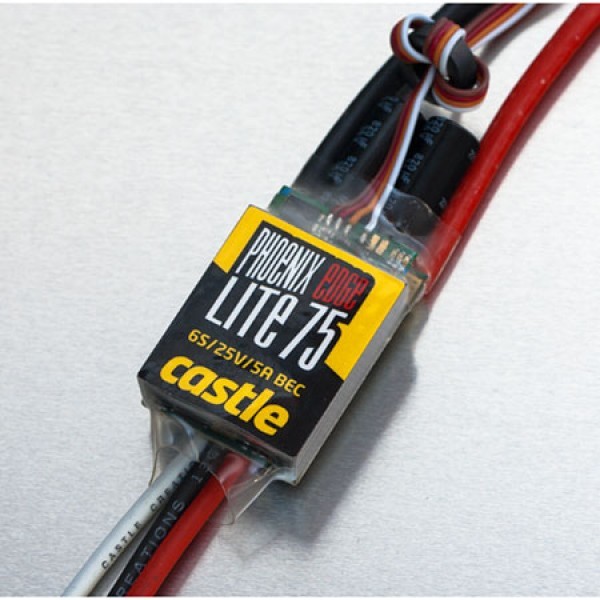

Put your power system on a diet with the Phoenix Edge Lite series of ESCs. With the same amazing features and functionality of the Edge series, the Edge Lite offers a slight weight reduction for applications that are tight for space or weight. Simply put, the same brawn with less body - Phoenix Edge Lite.



With the debut of the Phoenix Edge series of ESCs the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.



The Phoenix Edge series is intended for use in helicopters ranging from 450 to 800 size, and fixed wing aircraft up to 1.20 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle LinkUSB adapter (free with included coupon).

  • Slight weight reduction for applications that are tight for space or weight
  • Programmable auxillery wire for wide range of uses
  • Data logging capability
  • Designed for use in RC helis ranging from 450- to 800-size and fixed-wing aircraft up to 1.20-size and larger
Minimum Input Voltage
2S LiPo
Maximum Input Voltage
8S LiPo
Max Continuous Amperage At Full Throttle
75 amps
BEC Voltage (Voltage Regulator For Powering Radio And Sevos)
User selectable choice from 5 to 8.4 volt output
BEC Output Amperage
5 amp peak
Width
1.2" (30.5mm)
Length
2.6" (66mm)
Height
0.8" (21.4mm)
Weight w/wires
2.9 oz (81g)
Weight w/o wires
1.4 oz (41g)
SKU CSE010011200
Barcode # 819326010156
Brand CASTLE CREATIONS
Shipping Weight 0.0500kg
